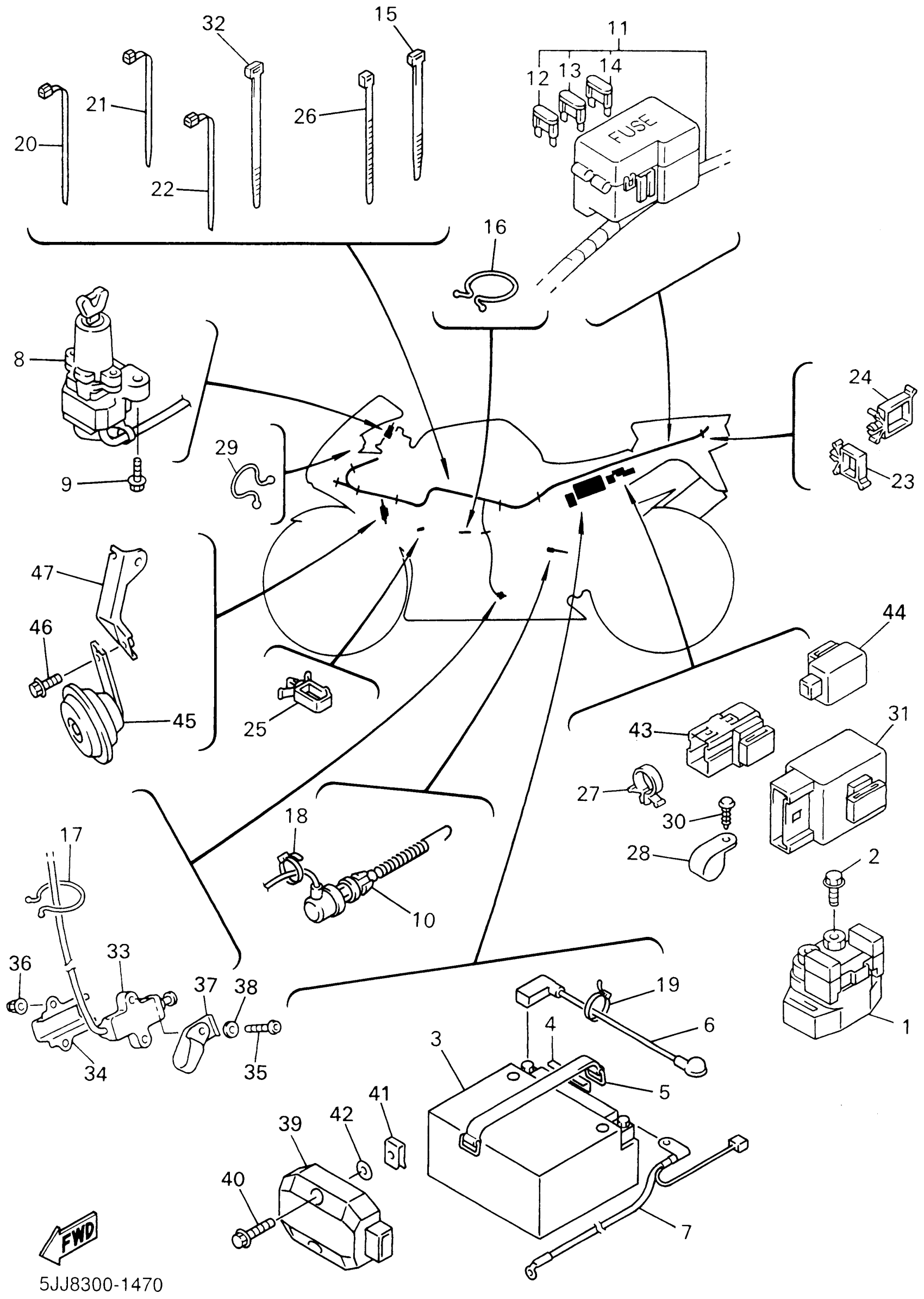

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

2

BOLT, SMALL FLANGE

95027-06008-00

$7.99

3

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

Unavailable

4

DAMPER

2AL-84553-00-00

$11.99

5

BAND, BATTERY

5JJ-82131-00-00

$13.49

6

WIRE, PLUS LEAD

5JJ-82115-00-00

Unavailable

7

WIRE, MINUS LEAD

5JJ-82116-00-00

Unavailable

8

MAIN SWITCH STEERING LOCK

5JJ-82501-11-00

Unavailable

9

BOLT

90109-08196-00

$8.49

10

STOP SWITCH ASSY

4XV-82530-01-00

Unavailable

11

WIRE HARNESS ASSY

5JJ-82590-11-00

Unavailable

12

. FUSE (10A)

67F-82151-40-00

Unavailable

13

FUSE (15A)

67F-82151-50-00

Unavailable

14

FUSE

5JJ-82151-20-00

$7.99

15

CLAMP(2TV)

90464-10112-00

$8.49

16

CLAMP

90464-37257-00

Unavailable

17

CLAMP (3Y2)

90464-16039-00

Unavailable

18

CLAMP

5Y9-12491-00-00

Unavailable

19

CLAMP

90464-13077-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

21

CLAMP(4FM)

90464-15195-00

Unavailable

22

CLAMP(2TV)

90464-10112-00

$8.49

23

CLAMP (1J7)

90464-16021-00

Unavailable

24

CLAMP (1J7)

90464-16025-00

Unavailable

25

CLAMP(3XV)

90464-15157-00

Unavailable

26

CLAMP(MF1)

90464-15152-00

Unavailable

27

CLAMP(3SK)

90464-13133-00

Unavailable

28

CLAMP (712)

90464-18029-00

Unavailable

29

CLAMP (3Y2)

90464-16039-00

Unavailable

30

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

31

RELAY ASSY (5EB-20)

5EB-81950-20-00

Unavailable

32

BAND

1UA-82591-00-00

Unavailable

33

SWITCH, SIDE STAND

5JJ-82566-01-00

Unavailable

34

PLATE

5JJ-82388-00-00

Unavailable

35

BOLT, BUTTON HEAD

92017-05030-00

Unavailable

36

NUT, S/L FLANGE

95607-05200-00

Unavailable

37

CLAMP

90461-10002-00

Unavailable

38

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

39

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

Unavailable

40

BOLT, FLANGE

95817-06025-00

Unavailable

41

NUT, SPRING(4ES)

90183-06069-00

Unavailable

42

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

43

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

44

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

45

HORN

2KG-83371-00-00

Unavailable

46

BOLT, FLANGE

95817-06010-00

Unavailable

47

BRACKET, HORN

4XV-2134K-00-00

Unavailable
