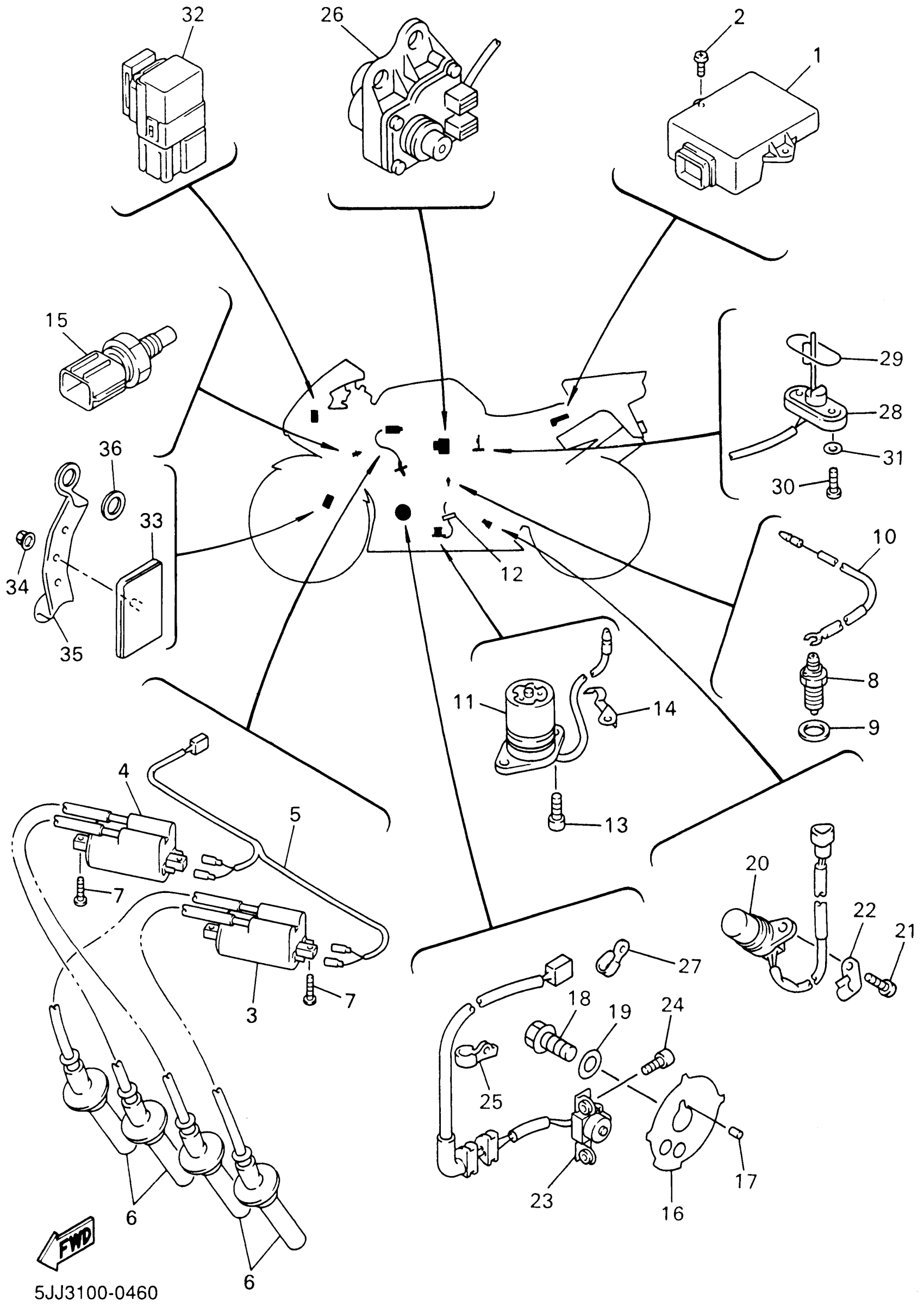

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

5JJ-82305-30-00

Unavailable

1

IGNITOR UNIT ASSY

5JJ-82305-30-00

Unavailable

2

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

3

IGNITION COIL ASSY

4KM-82310-02-00

Unavailable

4

IGNITION COIL ASSY

4KM-82320-02-00

Unavailable

5

WIRE, SUB LEAD

4XV-82309-00-00

Unavailable

6

PLUG CAP ASSY

4XV-82370-01-00

Unavailable

7

SCREW, TRUSS TAP.

97707-60025-00

$1.70

8

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

WIRE, LEAD

5JJ-82541-00-00

Unavailable

11

OIL LEVEL GAUGE ASSY

4XV-85720-01-00

Unavailable

12

CLAMP

5Y9-12491-00-00

$6.99

13

BOLT,SOCKET

91317-06014-00

$9.49

14

CLAMP

90465-08013-00

Unavailable

15

THERMO UNIT

5JJ-83591-00-00

Unavailable

16

ROTOR

4XV-81673-00-00

Unavailable

17

PIN, DOWEL (3Y1)

93604-29151-00

Unavailable

18

BOLT (30X)

90105-10290-00

Unavailable

19

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

20

SENSOR, SPEED

4XV-83755-04-00

Unavailable

21

BOLT,SOCKET

91317-06014-00

$9.49

22

CLAMP

90465-08028-00

Unavailable

23

PICK-UP ASSY

4XV-81670-11-00

Unavailable

24

BOLT,SOCKET

91317-06012-00

Unavailable

25

CLAMP

90465-08054-00

Unavailable

26

SERVOMOTOR ASY

4FM-85820-01-00

Unavailable

27

CLAMP(4AJ)

90462-08225-00

Unavailable

28

SENDER UNIT ASSY, FUEL METER

1UF-85752-03-00

Unavailable

29

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

30

SCREW 256241430000

90149-06011-00

Unavailable

31

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

32

RELAY ASSY

5JJ-81950-11-00

Unavailable

33

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

34

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

35

BRACKET, REFLECTOR 1

4XV-85112-00-00

Unavailable

36

WASHER PLATE (3L6)

90201-08759-00

Unavailable
