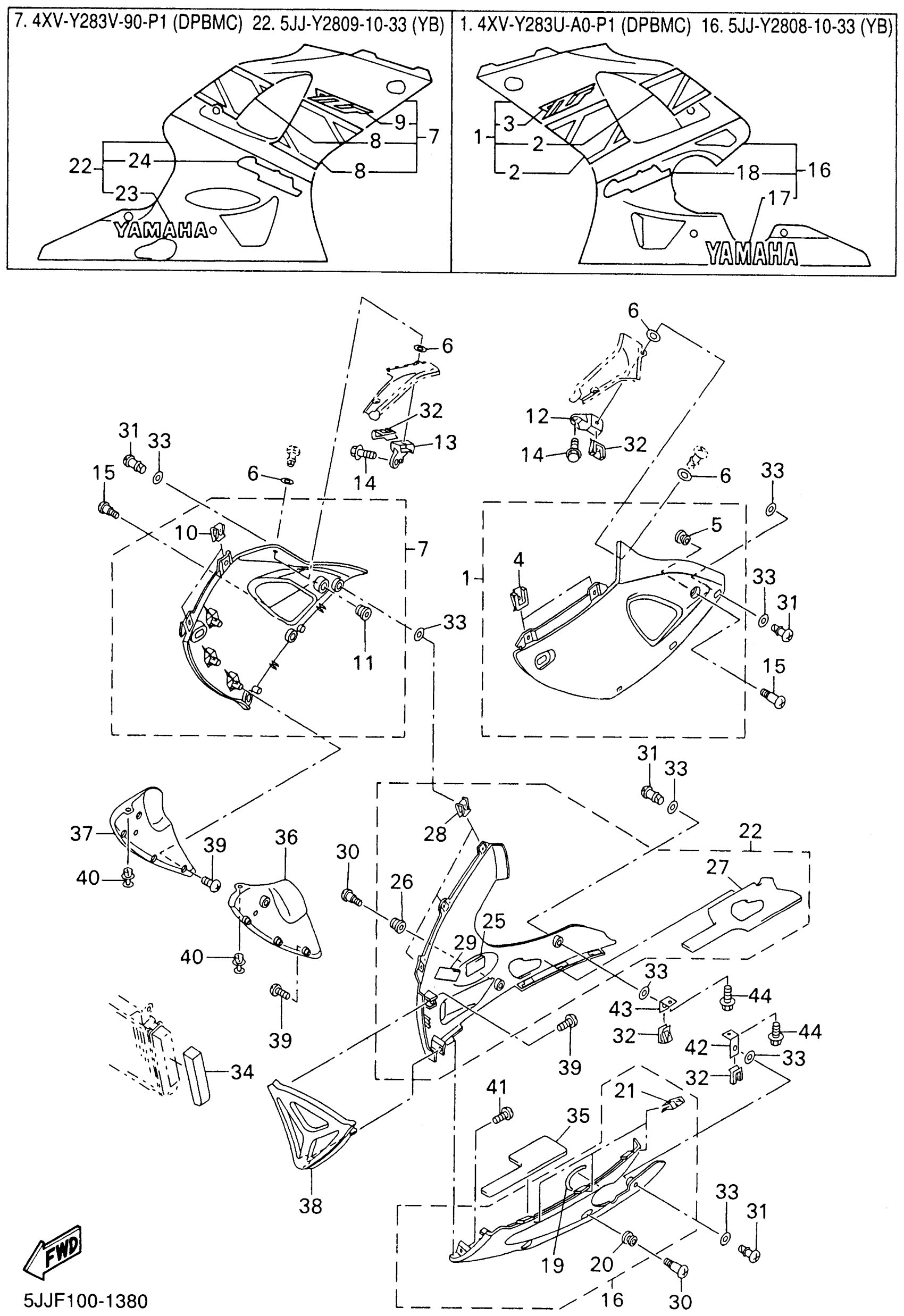

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283U-A0-P1
Unavailable
2
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
5JJ-28301-40-00
Unavailable
3
. EMBLEM 1
4XV-2839H-70-00
Unavailable
7
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283V-90-P1
Unavailable
8
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5JJ-28303-40-00
Unavailable
9
. EMBLEM 1
4XV-2839H-70-00
Unavailable
16
COVER ASSY, UNDER (YAMAHA BLACK) (DEEP PURPLISH BLUE METALLIC C)
5JJ-Y2808-10-33
Unavailable
17
EMBLEM, YAMAHA
99241-00320-00
Unavailable
18
. GRAPHIC 1
5MT-28391-10-00
Unavailable
19
. DAMPER
4BR-2834E-00-00
Unavailable
22
COVER ASSY 2, UNDER (YAMAHA BLACK) (DEEP PURPLISH BLUE METALLIC C)
5JJ-Y2809-10-33
Unavailable
23
EMBLEM, YAMAHA
5JJ-2153E-00-00
Unavailable
24
. GRAPHIC 2
5MT-28392-10-00
Unavailable
25
DAMPER
1TX-28371-00-00
Unavailable
27
. SEAT 4
5JJ-2848M-00-00
Unavailable
29
SEAL,2
1JK-21735-00-00
Unavailable
31
HEAD
3XV-28386-00-00
Unavailable
34
DAMPER
4SV-28371-00-00
Unavailable
35
SEAT 3
5JJ-2848L-00-00
Unavailable
36
PANEL, INNER 1
4XV-2836K-10-00
Unavailable
37
PANEL, INNER 2
4XV-2836L-10-00
Unavailable
38
PANEL, INNER 3 (YAMAHA BLACK)
4XV-2836M-10-33
Unavailable
39
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
40
RIVET(4PH)
90269-07077-00
Unavailable
41
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
42
BRACKET 3
4XV-2836F-00-00
Unavailable
43
BRACKET 4
4XV-2836G-00-00
Unavailable
44
BOLT, FLANGE
95817-06012-00
Unavailable
