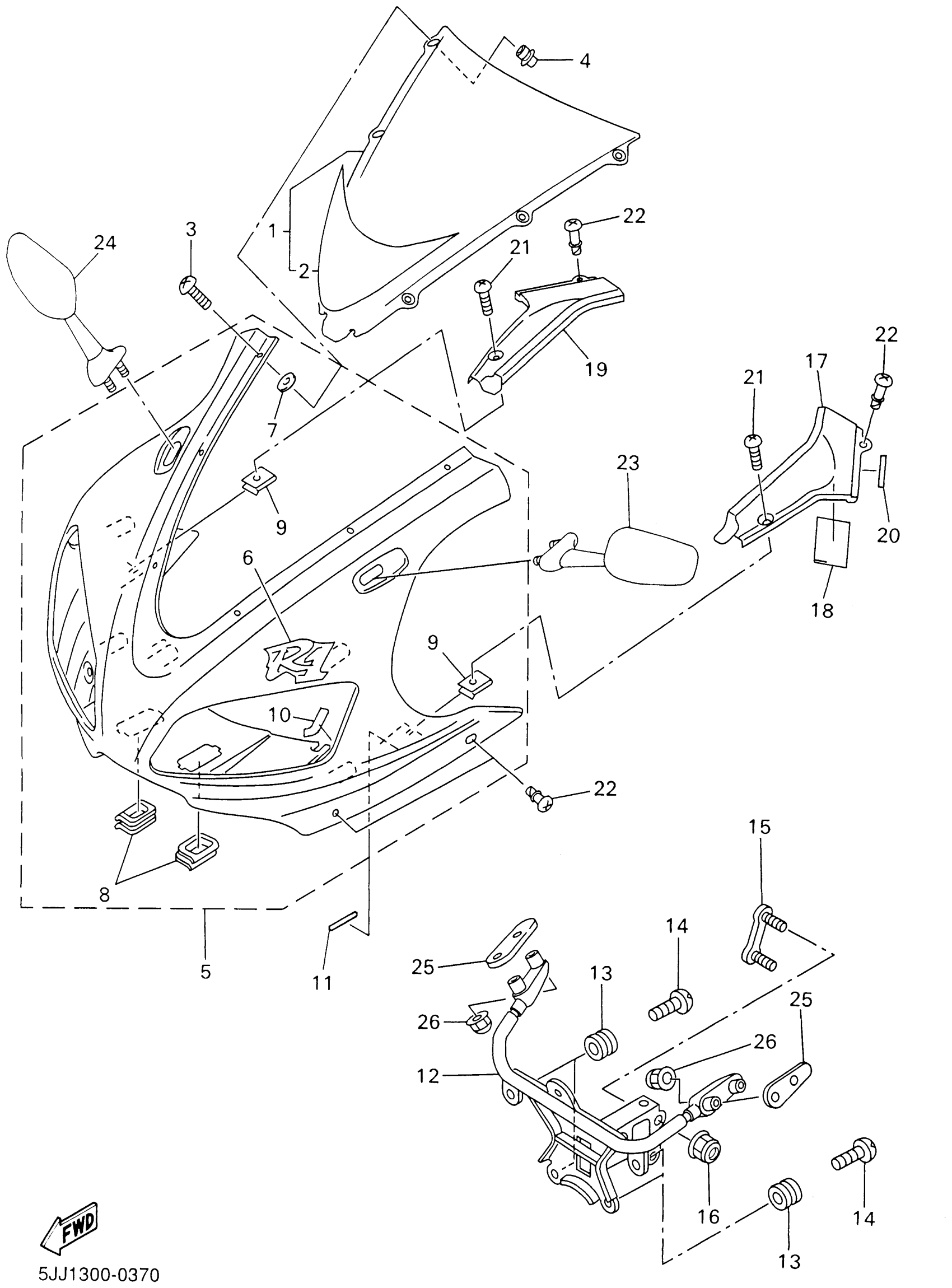

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

5JJ-W2881-30-00

Unavailable

2

. GRAPHIC 18

5JJ-2832P-01-00

Unavailable

3

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

4

NUT(1KT)

90179-05523-00

$8.49

5

BODY, FRONT UPPER 1 (LOW GLOSS BLACK) (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)

5JJ-Y283G-40-3X

Unavailable

6

. EMBLEM

4XV-28315-60-00

Unavailable

7

PROTECTOR 2

5JJ-2834W-00-00

$7.99

8

. CAP

4XV-28349-00-00

Unavailable

9

NUT, SPRING(3YX)

90183-05074-00

Unavailable

10

DAMPER, PLATE 2

1LJ-2414J-00-00

$7.99

11

DAMPER

4XV-2834E-00-00

$4.47

12

STAY 1

5JJ-28356-01-00

Unavailable

13

DAMPER

4XV-83513-00-00

$7.99

14

SCREW, TAPPING

90164-05001-00

$8.49

15

PLATE

4XV-28336-00-00

$18.49

16

NUT, SELF-LOCKING

90185-08169-00

Unavailable

17

PANEL, CONSOLE 1

4XV-2837L-00-00

Unavailable

18

DAMPER

1TX-28371-00-00

Unavailable

19

PANEL, CONSOLE 2

4XV-2837M-00-00

Unavailable

20

PROTECTOR, FUEL TANK

4EU-24141-00-00

Unavailable

21

SCREW, BINDING (10V)

90154-05013-00

Unavailable

22

HEAD

3XV-28386-00-00

Unavailable

23

REAR VIEW MIRROR ASSY(LEFT)

5JJ-26280-00-00

Unavailable

24

REAR VIEW MIRROR ASSY(RIGHT)

5JJ-26290-00-00

Unavailable

25

PLATE, MIRROR FITTING 1

4SV-26298-00-00

Unavailable

26

NUT, CROWN(1FN)

90176-06055-00

Unavailable
