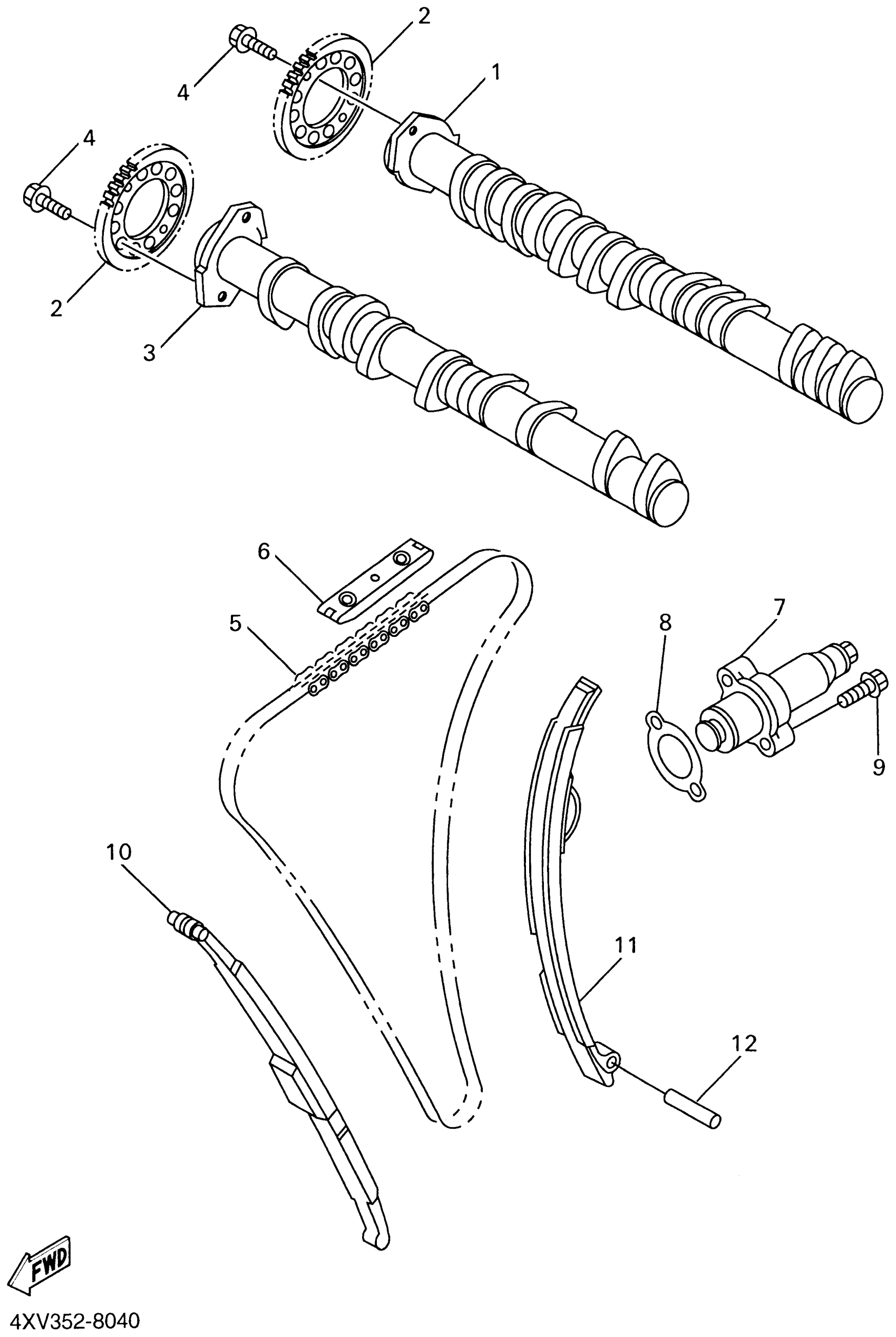

Yamaha YZFR1SNC (YZFR1 CA) 5JJG 2001 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

5JJ-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

4XV-12176-00-00

Unavailable

3

CAMSHAFT 2

5JJ-12181-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$4.66

5

CHAIN

94591-49130-00

$34.57

6

GUIDE, STOPPER 2

5BE-12241-01-00

$23.85

7

TENSIONER ASSY, CAM CHAIN

4XV-12210-00-00

$196.53

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

9

BOLT, SMALL FLANGE

95027-06025-00

$2.95

10

DAMPER, CHAIN 1

4XV-12251-01-00

Unavailable

11

DAMPER, CHAIN 2

4XV-12252-01-00

Unavailable

12

PIN, DOWEL (8V8)

93607-44190-00

$13.30
