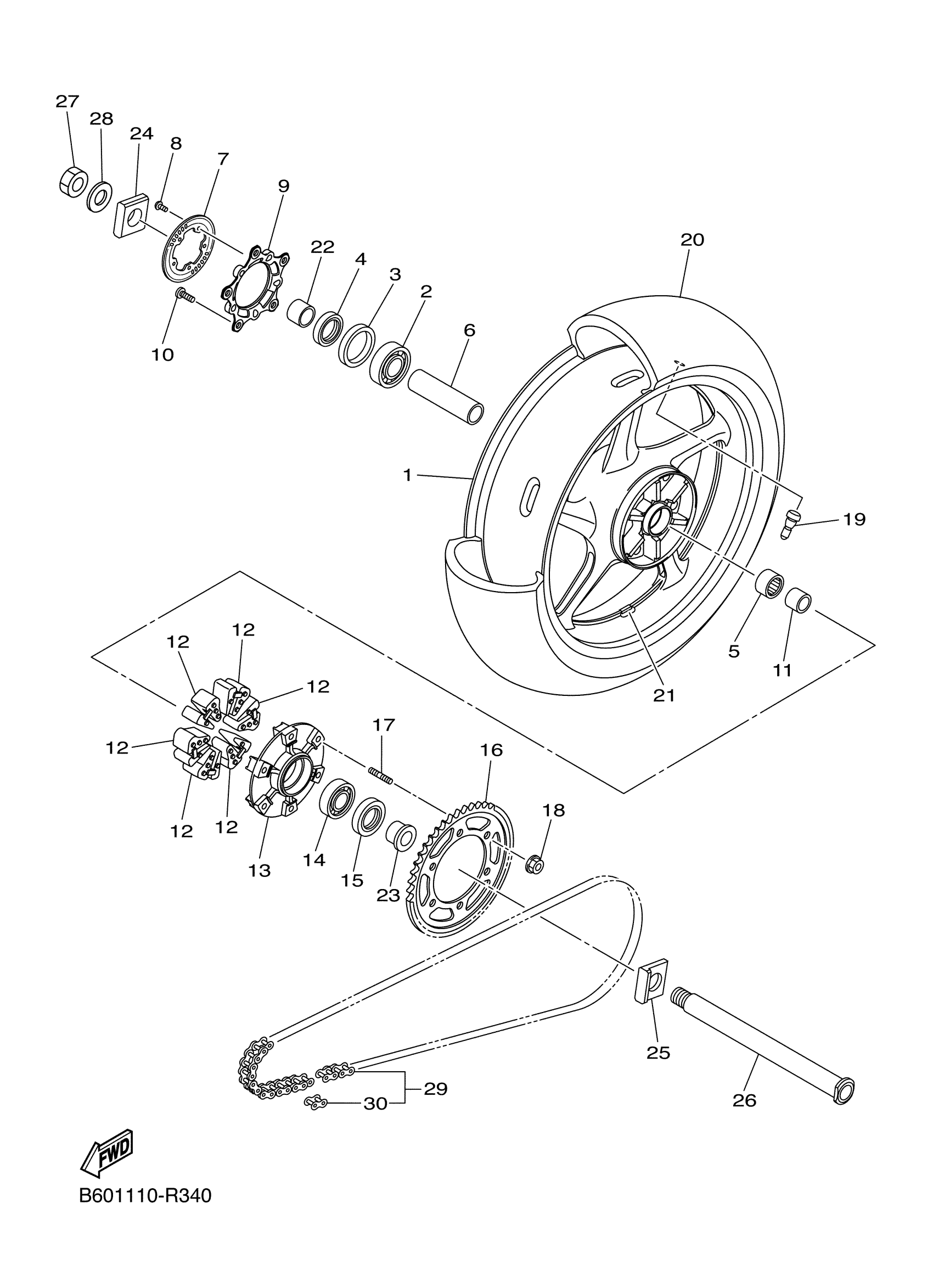

Yamaha YZFR1SJGY (YZFR1S) B607 2018 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
B60-25338-00-P1
Unavailable
3
NUT, ADJUSTING
2CR-2538E-00-00
Unavailable
7
ROTOR, SENSOR
1SD-2517G-00-00
Unavailable
11
COLLAR
90387-28025-00
Unavailable
13
CLUTCH, HUB
B60-25366-00-00
Unavailable
16
SPROCKET, DRIVEN (41T)
B60-25441-00-00
Unavailable
17
BOLT, STUD
90116-10048-00
Unavailable
18
NUT, SELF-LOCKING
90185-10011-00
Unavailable
19
VALVE, RIM(2GH)
93900-00030-00
Unavailable
20
TIRE (190/55 ZR17 M/C 75W)
94119-17075-00
Unavailable
21
BALANCER, WHEEL
5MT-25398-00-00
Unavailable
21
BALANCER, WHEEL
5MT-25398-10-00
Unavailable
21
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
22
COLLAR
90387-28023-00
Unavailable
23
COLLAR
90387-28024-00
Unavailable
24
PULLER, CHAIN 1
5VY-25388-00-00
Unavailable
25
PULLER, CHAIN 2
5VY-25389-01-00
Unavailable
26
AXLE, WHEEL
2CR-25381-00-00
Unavailable
27
NUT, SELF-LOCKING
90185-24007-00
Unavailable
28
WASHER, PLATE
90201-25020-00
Unavailable
29
SET, CHAIN
94A40-15114-00
Unavailable
30
JOINT, CHAIN
94682-5502R-00
Unavailable
