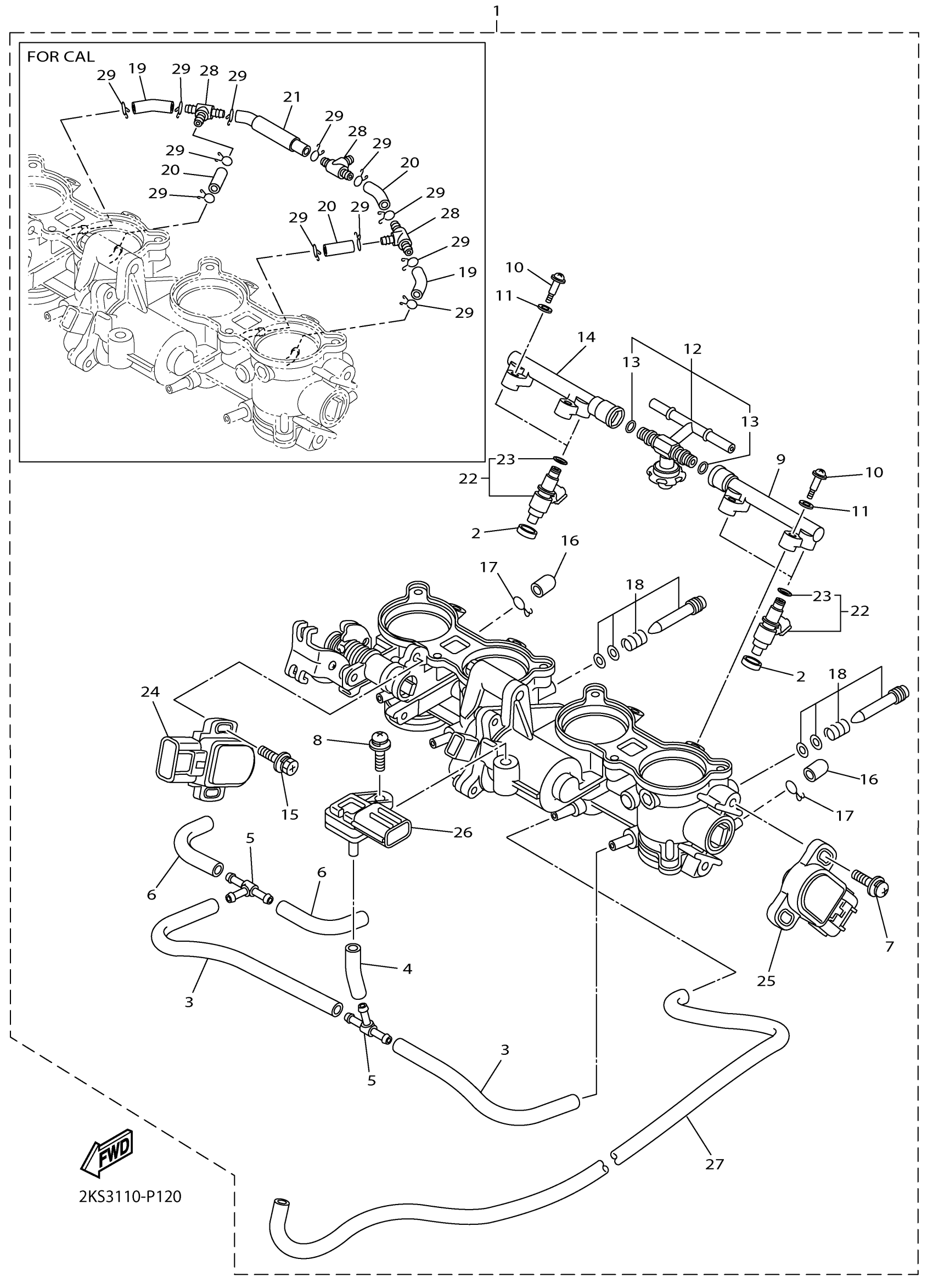

Yamaha YZFR1SJGY (YZFR1S) B607 2018 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

2CR-13750-11-00

$1,288.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

HOSE

5JW-14987-00-00

Unavailable

4

PIPE 1

5FL-14348-10-00

$5.49

5

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

6

PIPE

8FP-14349-00-00

$13.49

7

SCREW

8CC-14216-10-00

$7.99

8

SCREW

2C0-14216-00-00

$3.28

9

PIPE, INLET

2CR-1393A-00-00

Unavailable

10

BOLT 1

14B-13573-00-00

$6.99

11

GASKET

363-14198-00-00

$10.99

12

JOINT, THROTTLE BO

2CR-13795-00-00

$243.99

13

O-RING

39P-14147-00-00

$7.99

14

PIPE, INLET 2

2CR-1393B-00-00

Unavailable

15

SCREW

5FL-14216-00-00

$6.99

16

CAP

895-14169-00-00

Unavailable

17

CLIP, PIPE

8A7-14139-00-00

Unavailable

18

PILOT SCREW SET

2C0-14105-00-00

Unavailable

19

PIPE

14B-14466-00-00

Unavailable

20

PIPE

14B-14465-00-00

Unavailable

21

PIPE

2CR-1443J-00-00

Unavailable

22

INJECTOR ASSY

2C0-13761-00-00

Unavailable

23

O-RING

5PS-14147-00-00

Unavailable

24

ACCELERATOR SENSOR

1MC-85884-01-00

Unavailable

25

THROTTLE SENSOR AS

13S-85885-01-00

Unavailable

26

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

27

PIPE

2CR-14349-00-00

Unavailable

28

WAY 3

90413-06031-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable
