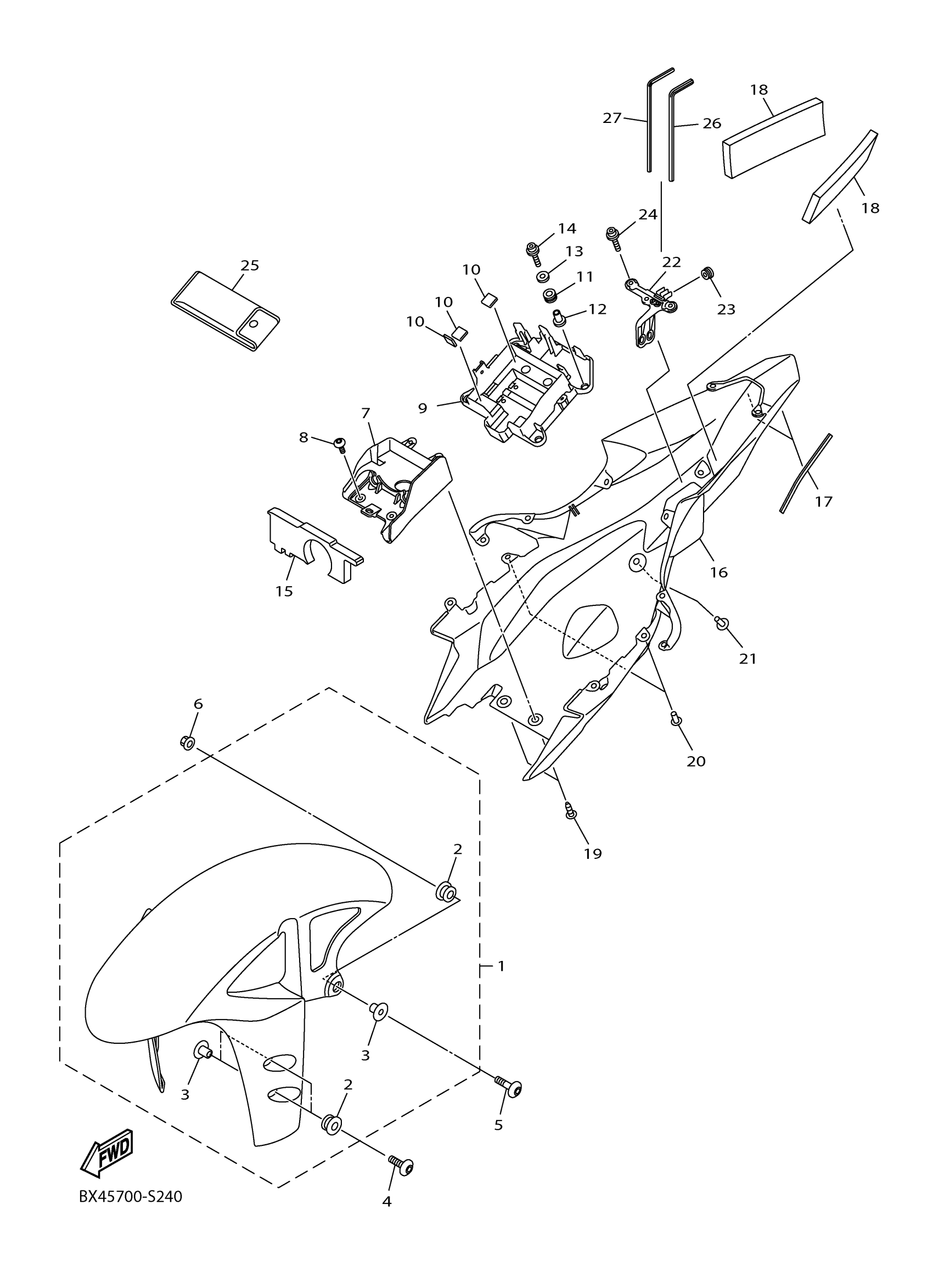

Yamaha YZFR1SJGY (YZFR1S) B607 2018 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

14B-Y2151-00-PD

$162.99

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

BOLT

90111-06043-00

$4.46

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

2CR-8212B-00-00

$42.99

8

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$7.49

9

BOX, BATTERY 2

2CR-8212C-00-00

$24.99

10

DAMPER

13S-21649-00-00

Unavailable

11

GROMMET (462)

90480-13018-00

$8.49

12

COLLAR(8Y7)

90387-073M2-00

$8.49

13

WASHER, PLATE

90201-06088-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

15

DAMPER 1

2CR-21638-00-00

Unavailable

16

FENDER, REAR

2CR-21611-01-00

Unavailable

17

DAMPER, PLATE 1

3C5-2414H-00-00

Unavailable

18

DAMPER, PLATE

90520-20003-00

Unavailable

19

RIVET

90269-06008-00

Unavailable

20

RIVET

90269-05005-00

Unavailable

21

RIVET(4JH)

90269-07076-00

Unavailable

22

BRACKET, TAILLIGHT

2CR-2117E-01-00

Unavailable

23

GROMMET

90480-10003-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

25

TOOL KIT

2CR-28100-01-00

Unavailable

26

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

27

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable
