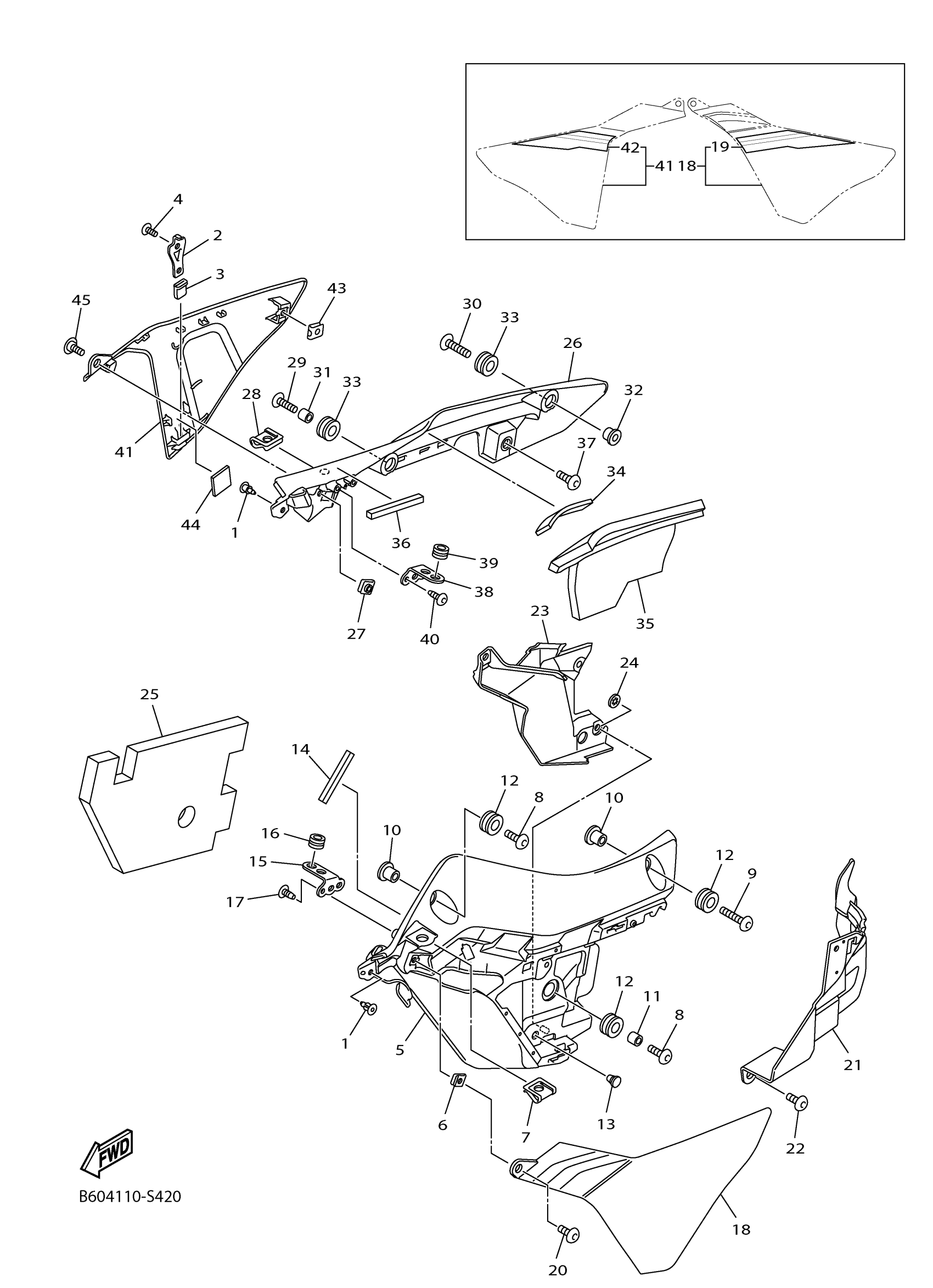

Yamaha YZFR1SJGY (YZFR1S) B607 2018 COWLING 3 Diagram
#
Description
Price
8
SCREW(4DN)
90149-06302-00
Unavailable
16
GROMMET(3GM)
90480-10517-00
Unavailable
17
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
18
COVER 1
2CR-Y284M-71-P2
Unavailable
19
GRAPHIC 3
B60-28393-30-00
Unavailable
20
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
21
COVER 3
2CR-2843J-01-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
23
BRACKET 3
2CR-2836F-00-00
Unavailable
24
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
25
DAMPER 1
2CR-28415-01-00
Unavailable
26
BRACKET 2
2CR-2836E-00-00
Unavailable
29
SCREW(4DN)
90149-06302-00
Unavailable
34
DAMPER, PLATE
90520-04012-00
Unavailable
35
DAMPER, 4
2CR-28455-00-00
Unavailable
37
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
38
BRACKET 11
2CR-2833H-00-00
Unavailable
39
GROMMET(3GM)
90480-10517-00
Unavailable
40
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
41
COVER 2
2CR-W284N-60-P2
Unavailable
42
GRAPHIC 4
B60-28394-30-00
Unavailable
44
DAMPER 1
3TB-28217-00-00
Unavailable
45
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
