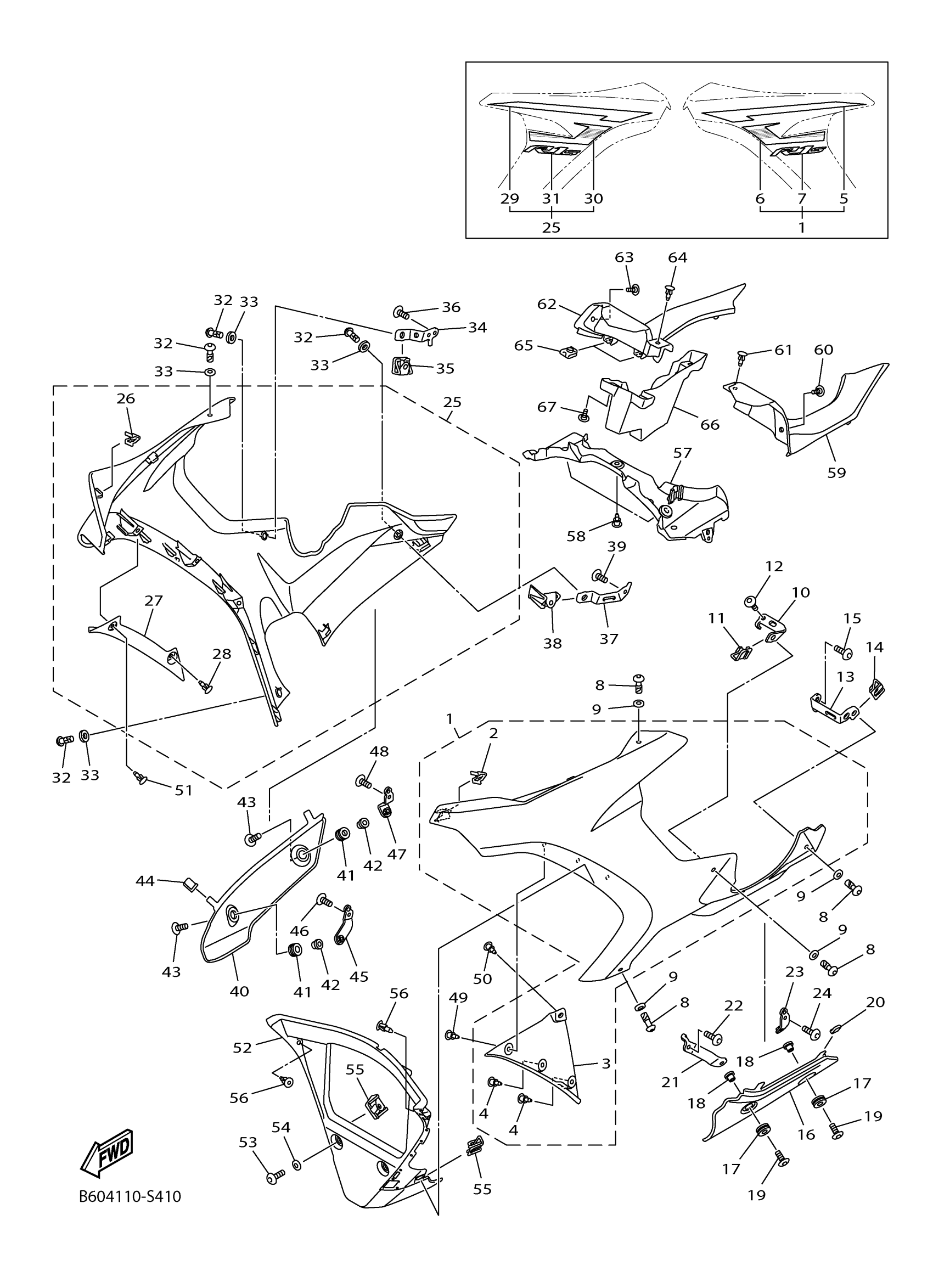

Yamaha YZFR1SJGY (YZFR1S) B607 2018 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSEMBLY 1

2CR-Y283U-C0-P2

$401.67

2

CLIP

90468-040A0-00

$5.81

3

PANEL, INNER 1

2CR-2836K-00-00

$7.24

4

RIVET

90269-06008-00

$5.55

5

GRAPHIC 1

B60-28391-30-00

$43.79

6

GRAPHIC 5

B60-28398-10-00

Unavailable

7

EMBLEM

B60-28328-10-00

Unavailable

8

HEAD

2CR-28386-00-00

$11.48

9

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

10

BRACKET 13

2CR-2833K-00-00

$9.26

11

PLATE, SPRING

2CR-2177L-00-00

$4.47

12

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

13

BRACKET 14

2CR-2833L-00-00

$8.88

14

PLATE, SPRING

2CR-2177L-00-00

$4.47

15

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

16

PROTECTOR 1

2CR-2834V-00-00

Unavailable

17

GROMMET(2JG)

90480-14477-00

Unavailable

18

COLLAR

90387-06307-00

Unavailable

19

BOLT

90111-06038-00

Unavailable

20

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

21

BRKT., 17

2CR-2833R-00-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

23

BRKT.,18

2CR-2833T-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

25

PANEL ASSEMBLY 2

2CR-Y283V-C0-P2

Unavailable

26

CLIP

90468-040A0-00

$5.81

27

PANEL, INNER 2

2CR-2836L-00-00

Unavailable

28

RIVET

90269-06008-00

$5.55

29

GRAPHIC 2

B60-28392-30-00

Unavailable

30

GRAPHIC 6

B60-28399-10-00

Unavailable

31

EMBLEM

B60-28328-10-00

Unavailable

32

HEAD

2CR-28386-00-00

$11.48

33

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

34

BRACKET 15

2CR-2833M-00-00

Unavailable

35

PLATE, SPRING

2CR-2177L-00-00

$4.47

36

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

37

BRACKET 16

2CR-2833N-00-00

Unavailable

38

PLATE, SPRING

2CR-2177L-00-00

$4.47

39

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

40

PROTECTOR 2

2CR-2834W-00-00

Unavailable

41

GROMMET(2JG)

90480-14477-00

Unavailable

42

COLLAR

90387-06307-00

Unavailable

43

BOLT

90111-06038-00

Unavailable

44

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

45

BRKT.,19

2CR-2833U-00-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

47

BRKT.,20

2CR-2833V-00-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

49

RIVET

90269-06001-00

Unavailable

50

RIVET

90269-06008-00

$5.55

51

RIVET

90269-06001-00

Unavailable

52

PANEL, INNER 3

2CR-2836M-00-P2

Unavailable

53

SCREW(4DN)

90149-06302-00

Unavailable

54

COLLAR

90387-06309-00

Unavailable

55

PLATE, SPRING

2CR-2177L-00-00

$4.47

56

RIVET

90269-06008-00

$5.55

57

STAY, HEADLIGHT

2CR-23174-00-00

Unavailable

58

RIVET

90269-06008-00

$5.55

59

PANEL, CONSOLE 1

2CR-2837L-00-00

Unavailable

60

BOLT

90111-05011-00

Unavailable

61

RIVET

90269-06008-00

$5.55

62

PANEL, CONSOLE 2

2CR-2837M-00-00

Unavailable

63

BOLT

90111-05011-00

Unavailable

64

RIVET

90269-06008-00

$5.55

65

NUT, SPRING

90183-050A6-00

Unavailable

66

BOX 1

2CR-2838K-00-00

Unavailable

67

BOLT

90111-05011-00

Unavailable
