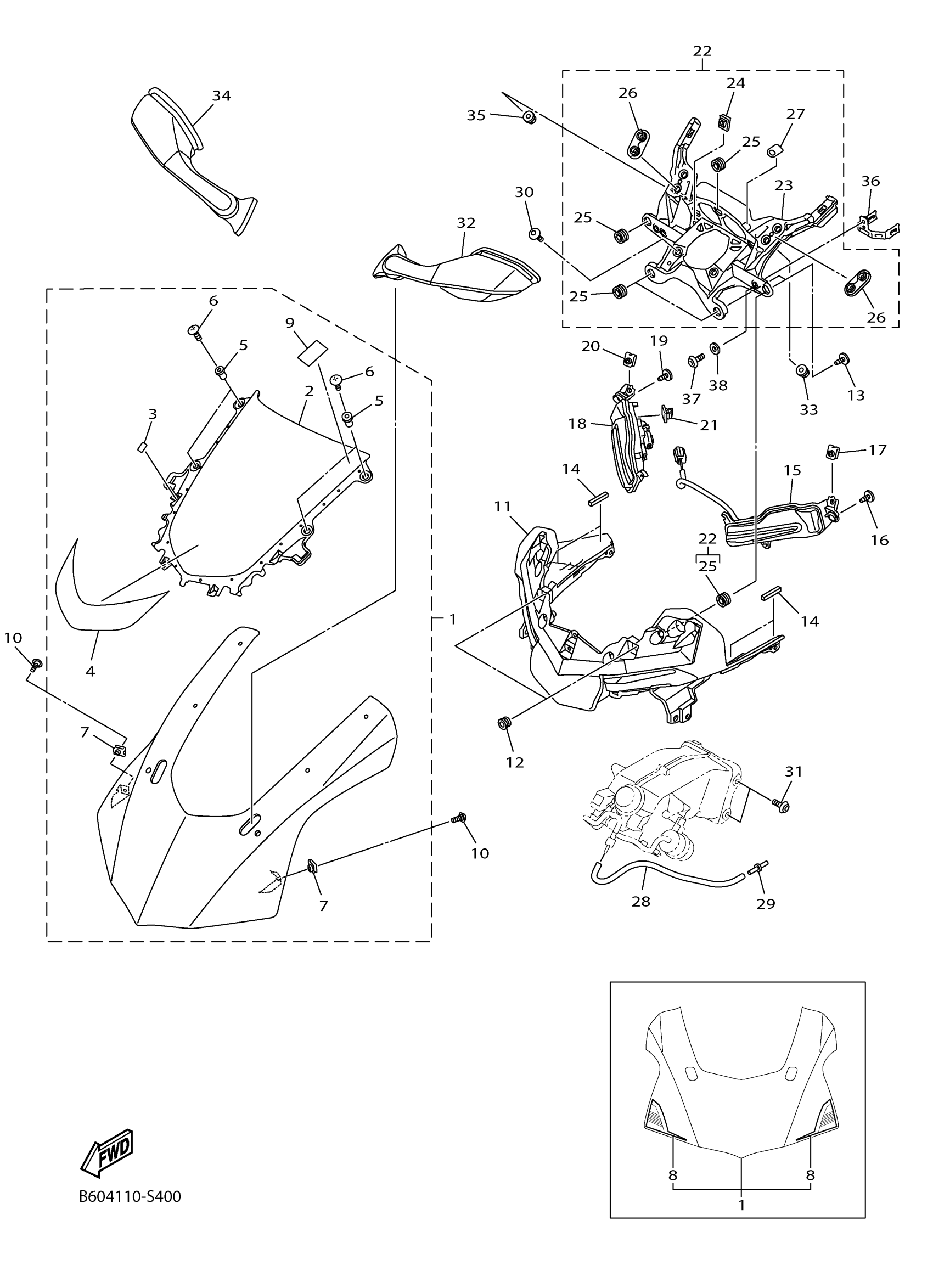

Yamaha YZFR1SHGY (YZFR1S) B604 2017 COWLING 1 Diagram

BODY, FRONT UPPER 1

2CR-Y283G-Y0-P8

Unavailable

WINDSHIELD

2CR-28381-10-00

Unavailable

PROTECTOR 1

1S4-2476U-00-00

$2.29

GRAPHIC, 18

2CR-2832P-00-00

Unavailable

NUT(1KT)

90179-05523-00

$8.49

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

NUT, SPRING

90183-050A6-00

$8.49

GRAPHIC SET 1, COWLING

B60-2834X-10-00

$16.99

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

BODY, FRONT UPPER

2CR-2835H-00-00

$64.99

GROMMET

90480-10003-00

$8.49

SCREW, TAPPING

90164-05001-00

$8.49

DAMPER 4

2C0-28247-00-00

$4.47

PILOT LIGHT ASSY 1

2CR-84301-00-00

$290.99

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

NUT, SPRING

90183-050A6-00

$8.49

PILOT LIGHT ASSY 2

2CR-84302-00-00

Unavailable

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

NUT, SPRING

90183-050A6-00

$8.49

CLAMP(3YL)

90464-25160-00

Unavailable

LEG SHIELD STAY SET

2CR-28320-00-00

Unavailable

STAY 1

2CR-28356-00-00

Unavailable

NUT, SPRING

90183-060A1-00

Unavailable

DAMPER

4XV-83513-00-00

Unavailable

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

SEAL 1

2CR-22873-00-00

Unavailable

HOSE (L320)

90445-086J3-00

Unavailable

JOINT

5PS-14568-00-00

Unavailable

BOLT

90111-06038-00

Unavailable

BOLT

90111-06038-00

Unavailable

REAR VIEW MIRROR ASSY (LEFT)

2CR-26280-11-00

Unavailable

NUT, CROWN(1FN)

90176-06055-00

Unavailable

REAR VIEW MIRROR ASSY (RIGHT)

2CR-26290-11-00

Unavailable

NUT, CROWN(1FN)

90176-06055-00

Unavailable

BRACKET 6

2CR-2836J-01-00

Unavailable

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

COLLAR

90387-06184-00

Unavailable
