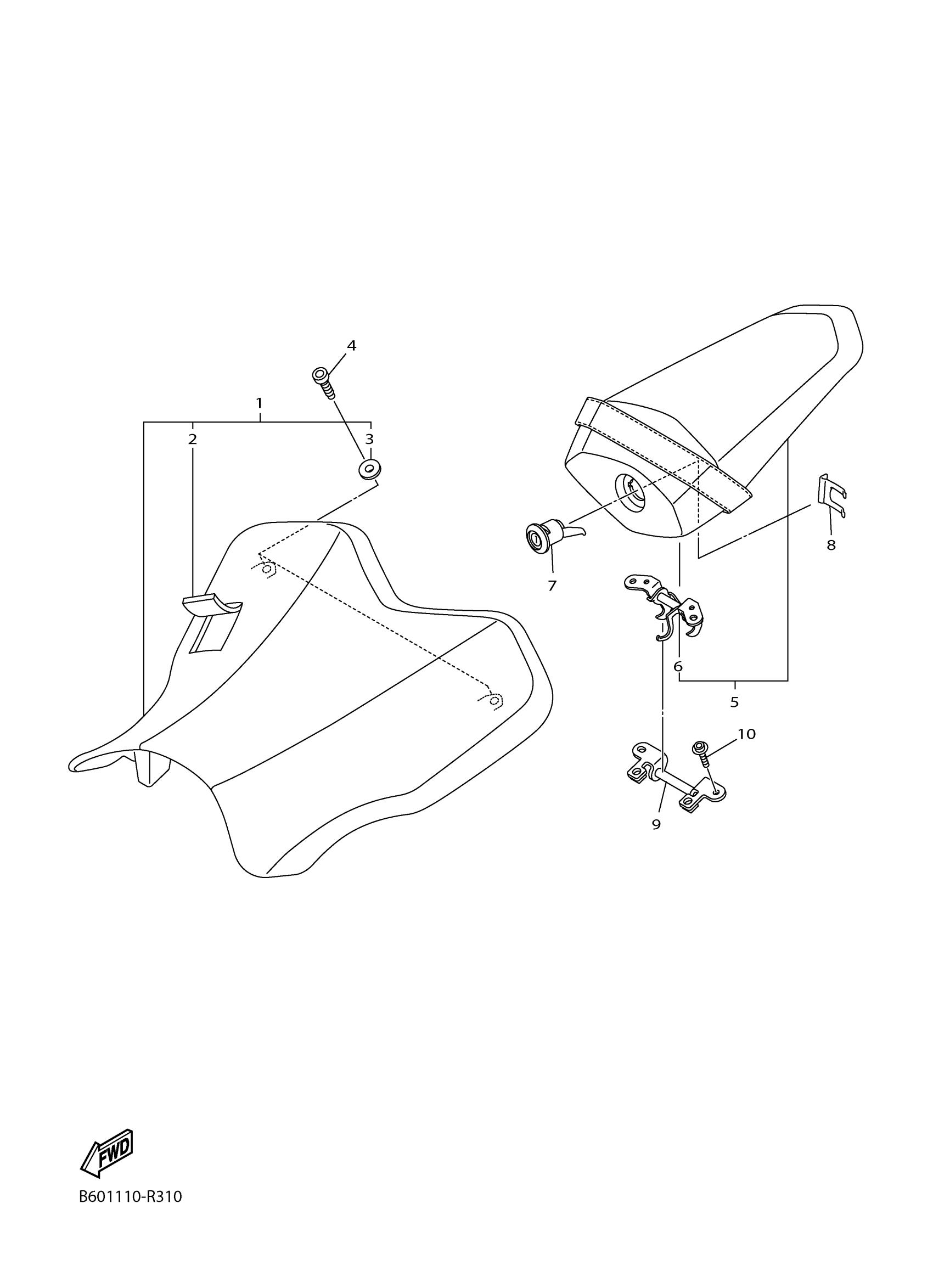

Yamaha YZFR1SGW (YZFR1S) B6010 2016 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

2CR-24710-01-00

$90.43

2

COVER, SINGLE SEAT

2CR-24711-00-00

$52.60

3

COLLAR

90387-06066-00

$5.00

4

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

5

TANDEM SEAT ASSY

2CR-24750-01-00

$106.39

6

SEAT LOCK COMP.

2CR-2478R-00-00

$33.42

7

ROTOR SET

2CR-W2470-00-00

$55.57

8

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

9

BRACKET, SEAT LOCK

2CR-2478X-00-00

$16.29

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15
