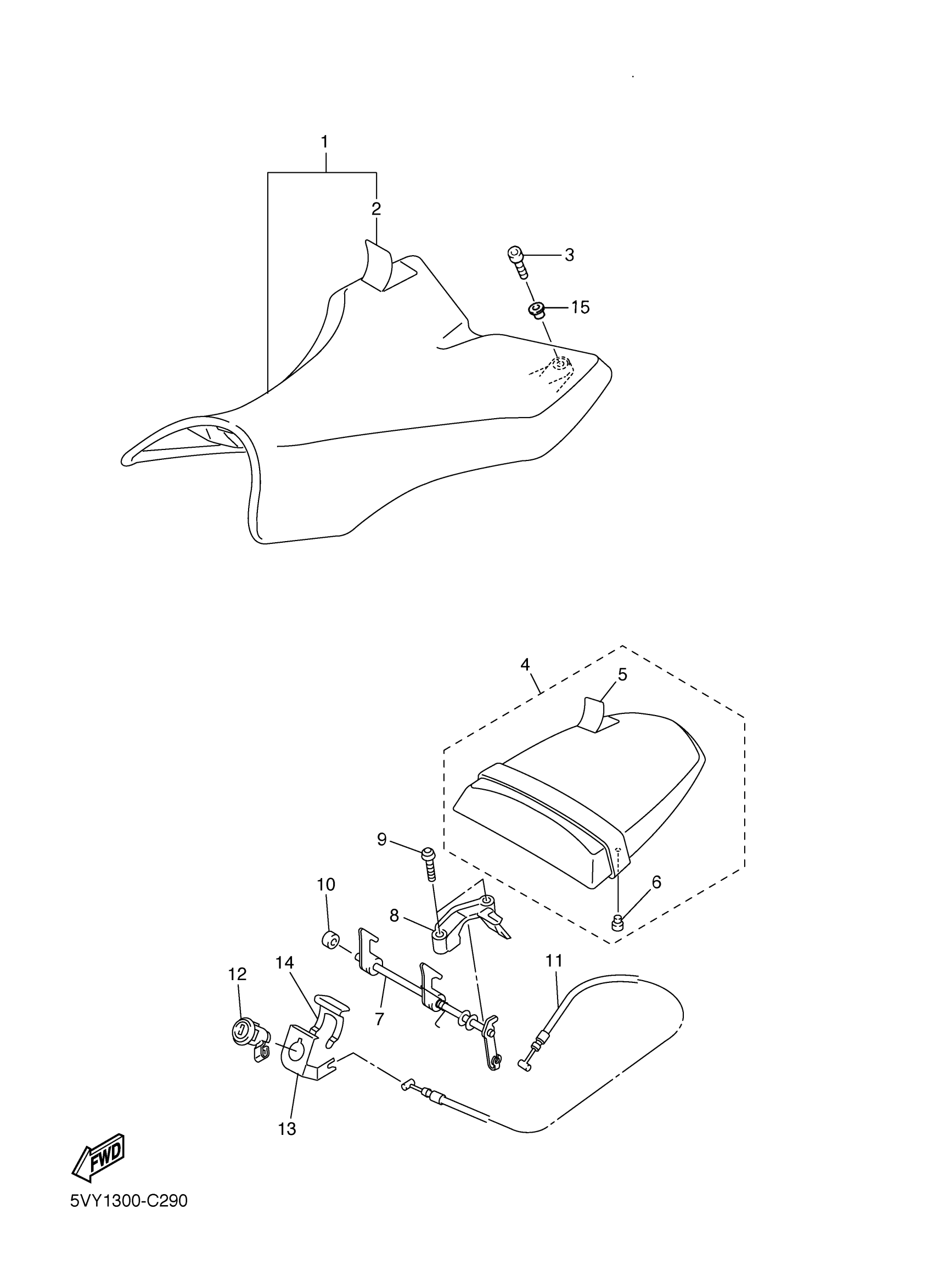

Yamaha YZFR1SC (YZFR1 CA) 5VY5 2004 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5VY-24710-00-00

Unavailable

2

. SEAT COVER COMP

5VY-2470F-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

4

TANDEM SEAT ASSY

5VY-24750-01-00

Unavailable

5

. COVER, TANDEM SEAT

5VY-24751-00-00

Unavailable

6

DAMPER, SEAT

5SL-24723-00-00

$5.55

7

SEAT LOCK ASSY

5VY-24780-01-00

Unavailable

8

PLATE

5VY-24792-00-00

Unavailable

9

BOLT, BUTTON HEAD

92017-06025-00

$6.22

10

SPACER 2

5VY-24729-00-00

Unavailable

11

CABLE, SEAT LOCK

5VY-2478E-00-00

$16.29

12

ROTOR SET

5VY-W2470-00-00

Unavailable

13

STAY, LOCK

5VY-2117K-01-00

$6.09

14

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

15

COLLAR

90387-06066-00

$5.00
