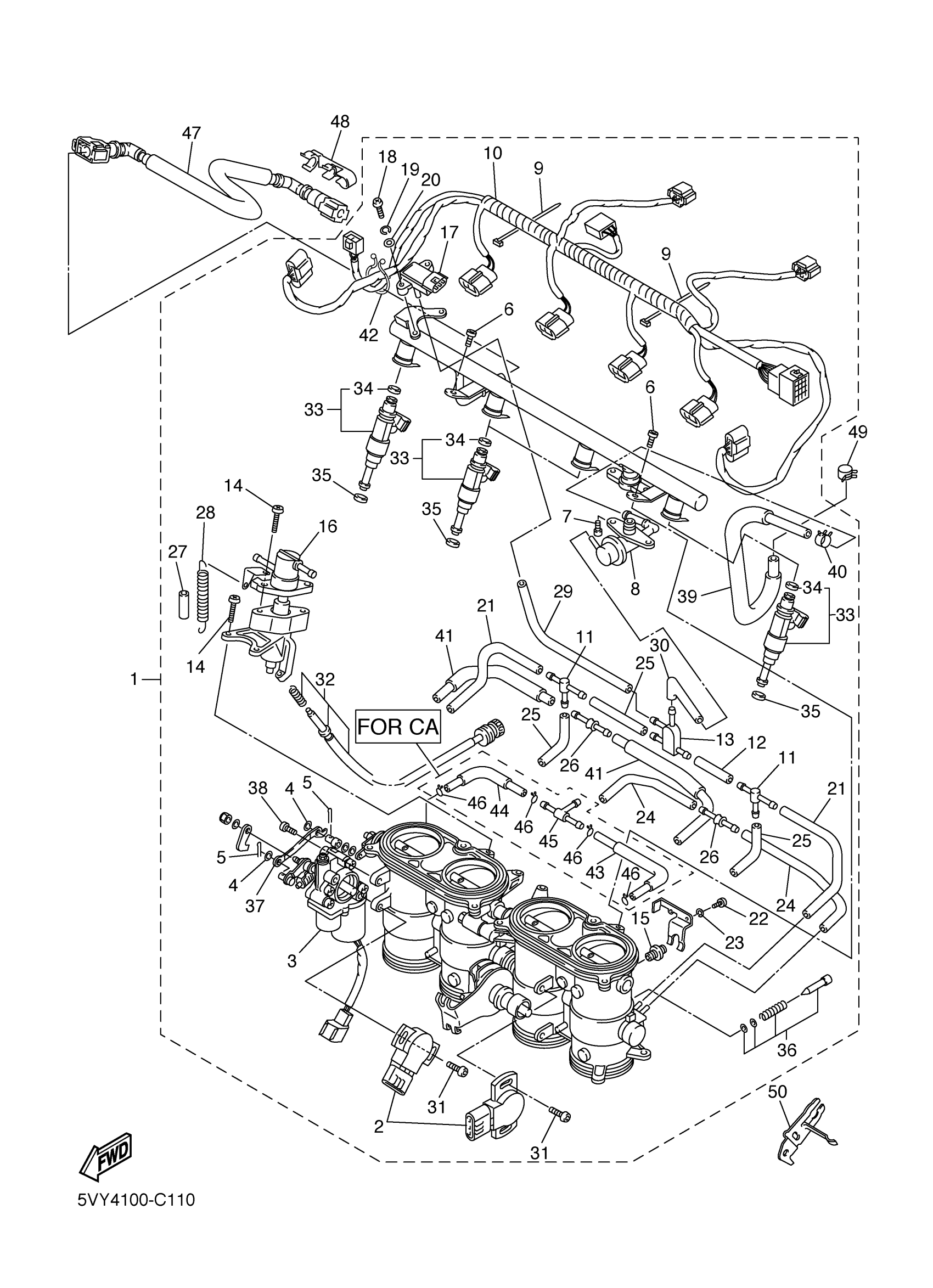

Yamaha YZFR1SC (YZFR1 CA) 5VY5 2004 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
5VY-13750-02-00
Unavailable
1
THROTTLE BODY ASSY
5VY-13750-11-00
Unavailable
3
GEARED MOTOR COMP. 2
2D1-85870-00-00
Unavailable
8
. REGULATOR, PRESSURE
5VY-13906-00-00
Unavailable
10
. EXTENSION, WIRE HARNESS
5VY-82386-00-00
Unavailable
11
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
13
CONNECTOR
5PW-1410F-00-00
Unavailable
15
PLUNGER, STARTER
5VY-14171-00-00
Unavailable
16
CASE, STARTER
5VY-14204-00-00
Unavailable
17
SENSOR, PRESSURE
5VX-82380-00-00
Unavailable
18
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
19
WASHER(3SX)
92907-05100-00
Unavailable
20
WASHER(1RW)
92907-05600-00
Unavailable
21
PIPE
5FL-14349-10-00
Unavailable
22
SCREW, PAN HEAD
98507-03016-00
Unavailable
23
WASHER, SPRING
92990-03100-00
Unavailable
24
PIPE
5PW-14349-00-00
Unavailable
25
HOSE
5PS-14987-00-00
Unavailable
26
NIPPLE
5PW-14251-00-00
Unavailable
27
SEAT, SPRING
5DM-14936-00-00
Unavailable
28
SPRING
5JW-14589-00-00
Unavailable
29
PIPE
5SL-14349-00-00
Unavailable
30
. PIPE 1
5VY-14348-00-00
Unavailable
31
SCREW
8CC-14216-10-00
Unavailable
32
THROTTLE SCREW SET
5PW-14103-00-00
Unavailable
33
INJECTOR ASSY
5VY-13761-00-00
Unavailable
34
O-RING
5PS-14147-00-00
Unavailable
35
GASKET
90430-09002-00
Unavailable
36
AIR SCREW SET
5JW-14104-00-00
Unavailable
37
LEVER, STARTER
5VY-14905-00-00
Unavailable
38
SCREW, PAN
98517-06020-00
Unavailable
39
PIPE, FUEL 2
5VY-13972-00-00
Unavailable
40
CLIP
90467-12003-00
Unavailable
41
HOSE, AIR
5VY-13543-00-00
Unavailable
42
CLAMP (8M1)
90464-30040-00
Unavailable
43
PIPE
5VY-14465-01-00
Unavailable
44
PIPE
5VY-14466-01-00
Unavailable
45
WAY (70R)
90413-08012-00
Unavailable
46
CLIP
90467-090A2-00
Unavailable
47
PIPE, FUEL 1
5VY-13971-00-00
Unavailable
48
CLAMP
90464-16005-00
Unavailable
49
CLIP
90467-12003-00
Unavailable
50
STAY
5VY-14413-00-00
Unavailable
