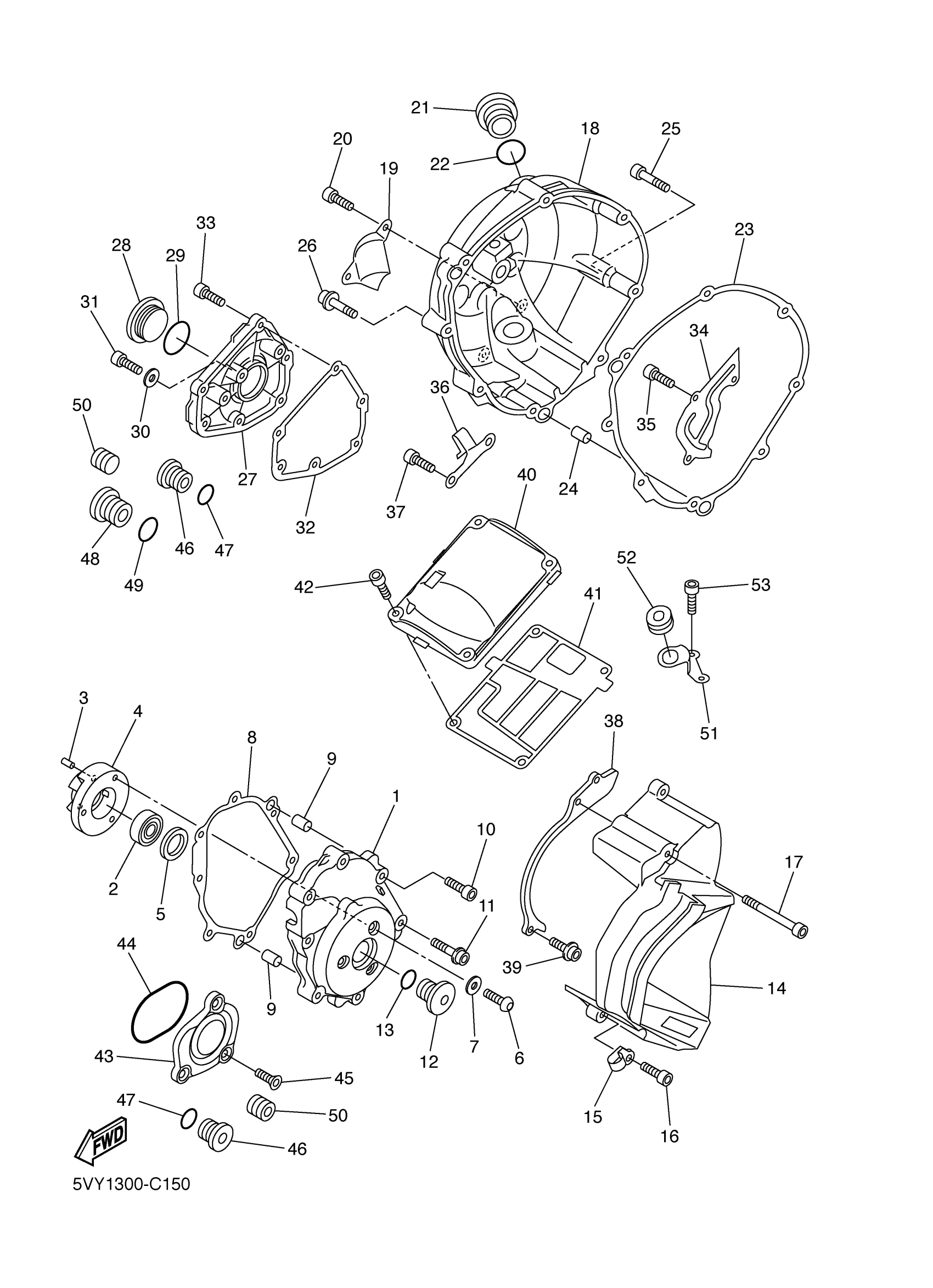

Yamaha YZFR1SC (YZFR1 CA) 5VY5 2004 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5VY-15411-00-00

$142.99

2

BEARING

93306-20124-00

$30.99

3

PIN, DOWEL (8G8)

93605-10108-00

$8.49

4

HOUSING, BEARING 2

5VY-15164-00-00

$200.99

5

COLLAR 2

5VY-15542-00-00

$15.49

6

SCREW(1KT)

90149-06228-00

$9.49

7

WASHER, PLATE (371)

90201-06431-00

$5.60

8

GASKET, CRANKCASE COVER 1

5VY-15451-00-00

$9.99

9

PIN

99480-10018-00

Unavailable

10

BOLT

90109-06031-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

$8.49

12

PLUG

5PX-15189-00-00

$32.99

13

O-RING (713)

93210-22382-00

$8.49

14

COVER, CHAIN CASE

5VY-15418-00-00

Unavailable

15

CLAMP(4AJ)

90462-08225-00

$8.49

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

18

COVER, CRANKCASE 2

5VY-15421-00-00

Unavailable

19

PROTECTOR, COVER

5VY-15499-00-00

Unavailable

20

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

21

PLUG, OIL LEVEL

5VY-15362-00-00

Unavailable

22

O-RING(1KT)

93210-27778-00

Unavailable

23

GASKET, CRANKCASE COVER 2

4C8-15461-00-00

Unavailable

23

GASKET, CRANKCASE COVER 2

4C8-15461-00-00

Unavailable

24

PIN, DOWEL(72M)

93610-20189-00

Unavailable

25

BOLT

90109-06016-00

Unavailable

26

BOLT

90109-06016-00

Unavailable

27

COVER, OIL PUMP

5VY-15416-00-00

Unavailable

28

PLUG, STRAIGHT SCREW

90340-32004-00

Unavailable

29

O-RING (341)

93210-32172-00

Unavailable

30

. GASKET

90430-08143-00

Unavailable

31

BOLT, BUTTON

92014-08016-00

Unavailable

32

GASKET, OIL PUMP COVER 1

4C8-15456-00-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

90110-06331-00

Unavailable

34

PLATE, BREATHER

5VY-11165-00-00

Unavailable

35

BOLT,SOCKET

91317-06012-00

Unavailable

36

HOLDER, CLUTCH CABLE

5VY-15441-00-00

Unavailable

37

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

38

PLATE

4B1-15113-00-00

Unavailable

39

BOLT,SOCKET

91317-06014-00

Unavailable

40

COVER

5VY-15413-00-00

Unavailable

41

GASKET, CRANKCASE COVER 3

4C8-15462-00-00

Unavailable

42

BOLT

90109-06015-00

Unavailable

43

COVER, CRANKCASE 3

5VY-15431-00-00

Unavailable

44

O-RING

93210-57001-00

Unavailable

45

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

46

PLUG

36Y-15189-01-00

Unavailable

47

O-RING(1L9)

93210-16325-00

Unavailable

48

PLUG

4H7-15189-00-00

Unavailable

49

O-RING (713)

93210-22382-00

$8.49

50

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

51

STAY

5VY-12443-10-00

Unavailable

52

GROMMET

90480-13014-00

Unavailable

53

BOLT,SOCKET

91380-06014-00

Unavailable
