Description

Price

1

COVER, SIDE 1

D45-W2171-10-P7

$179.99

2

TAPE 1

2CR-2173T-01-00

$14.49

3

TAPE 3

2CR-2173R-01-00

$2.18

4

SEAL 1

1RC-2111D-00-00

$4.63

5

GRAPHIC 1

D45-2173E-10-00

$33.99

6

COVER, SIDE 3

2CR-21731-00-00

$29.99

7

NUT, SPRING

90183-060A6-00

$5.49

8

COVER, SIDE 2

D45-W2172-10-P7

Unavailable

9

TAPE 2

2CR-2173U-02-00

$8.99

10

TAPE 3

2CR-2173R-01-00

$2.18

11

SEAL 1

1RC-2111D-00-00

$4.63

12

GRAPHIC 2

D45-2173F-10-00

$33.99

13

COVER, SIDE 4

2CR-21741-00-00

$29.99

14

NUT, SPRING

90183-060A6-00

$5.49

15

COLLAR

90387-06106-00

$7.49

16

COLLAR

90387-06069-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06086-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-06136-00

Unavailable

19

RIVET

90269-06001-00

Unavailable

20

RIVET

90269-05005-00

Unavailable

21

COVER, SIDE 5

2CR-2171E-01-00

Unavailable

22

DAMPER

4C8-21747-00-00

Unavailable

23

RIVET

90269-05001-00

Unavailable

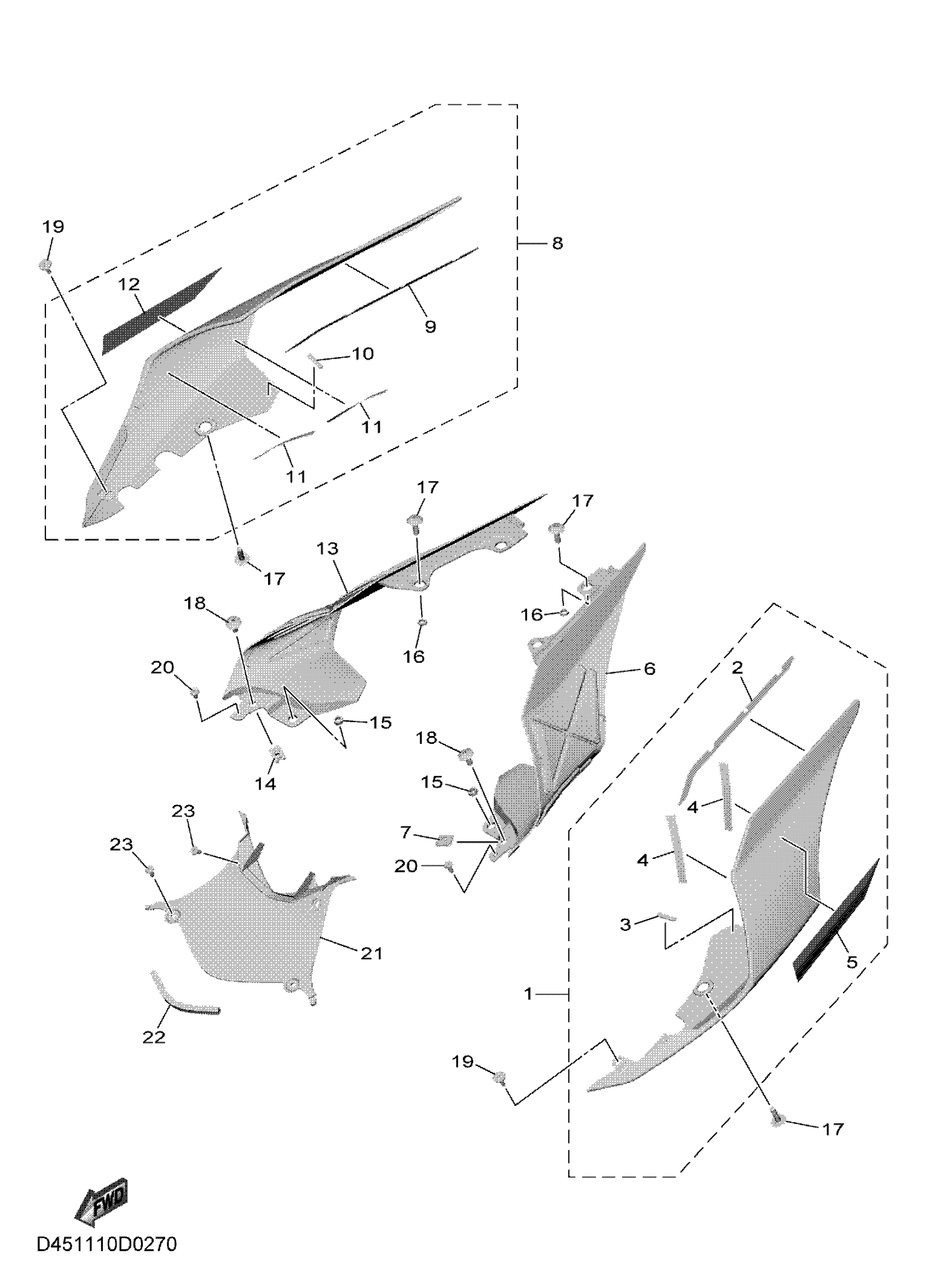

Yamaha YZFR1S1L (YZFR1) D451 2025 SIDE COVER Diagram

COVER, SIDE 1

TAPE 1

TAPE 3

SEAL 1

GRAPHIC 1

COVER, SIDE 3

NUT, SPRING

COVER, SIDE 2

TAPE 2

TAPE 3

SEAL 1

GRAPHIC 2

COVER, SIDE 4

NUT, SPRING

COLLAR

COLLAR

BOLT,HEX. SOCKET BUTTON

BOLT,HEX. SOCKET BUTTON

RIVET

RIVET

COVER, SIDE 5

DAMPER

RIVET
