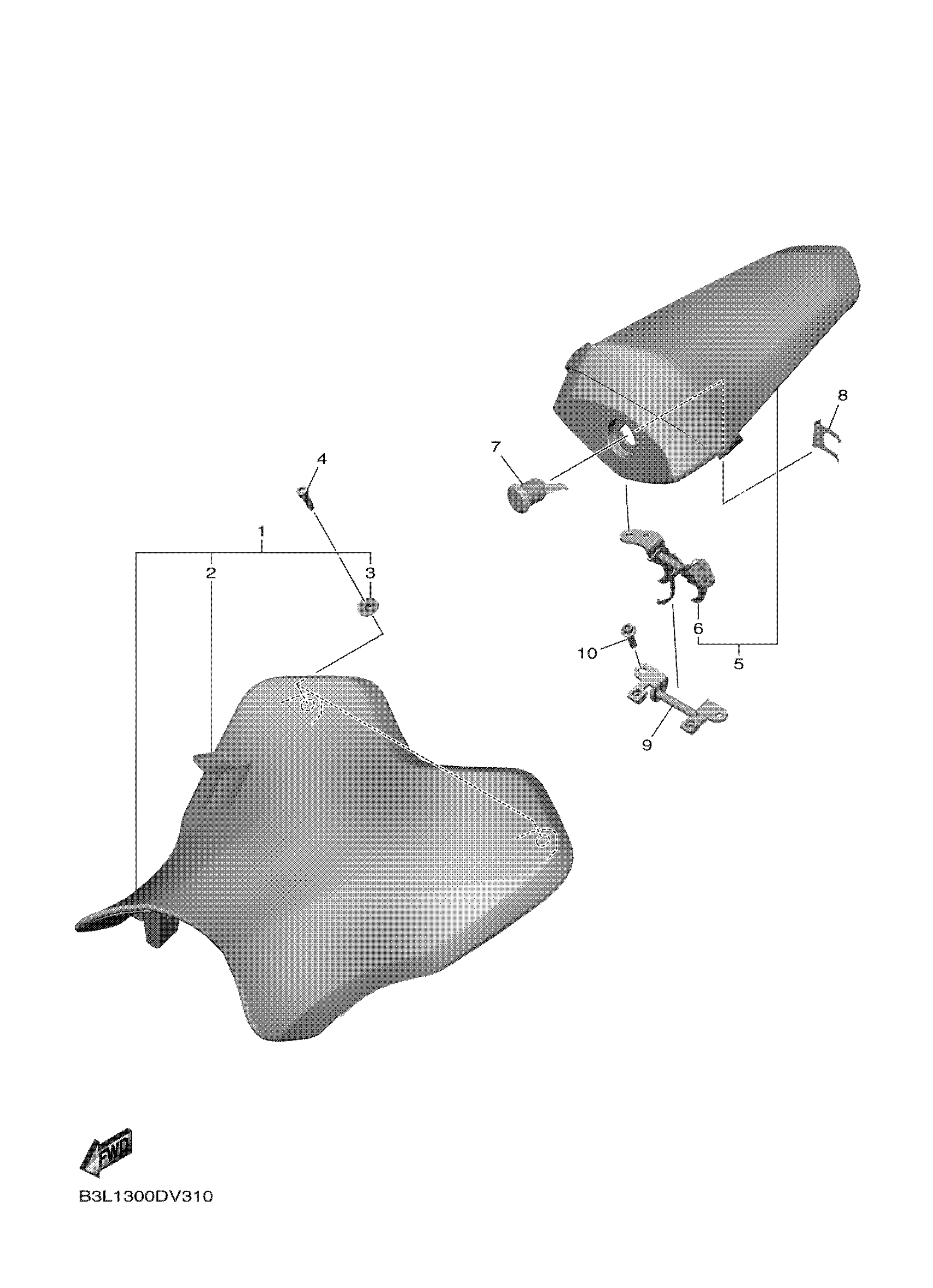

Yamaha YZFR1S1L (YZFR1) D451 2025 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

D45-24710-00-00

$100.35

2

COVER, SINGLE SEAT

D45-24711-00-00

$54.06

3

COLLAR

90387-06066-00

$5.00

4

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

5

TANDEM SEAT ASSY

D45-24750-00-00

$124.61

6

. SEAT LOCK COMP

BEB-2478R-00-00

$32.76

7

ROTOR SET

2CR-W2470-00-00

$55.57

8

SPRING, LOCK 2

5VY-2176V-00-00

$8.36

9

BRACKET, SEAT LOCK

2CR-2478X-00-00

$16.29

10

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$7.15
