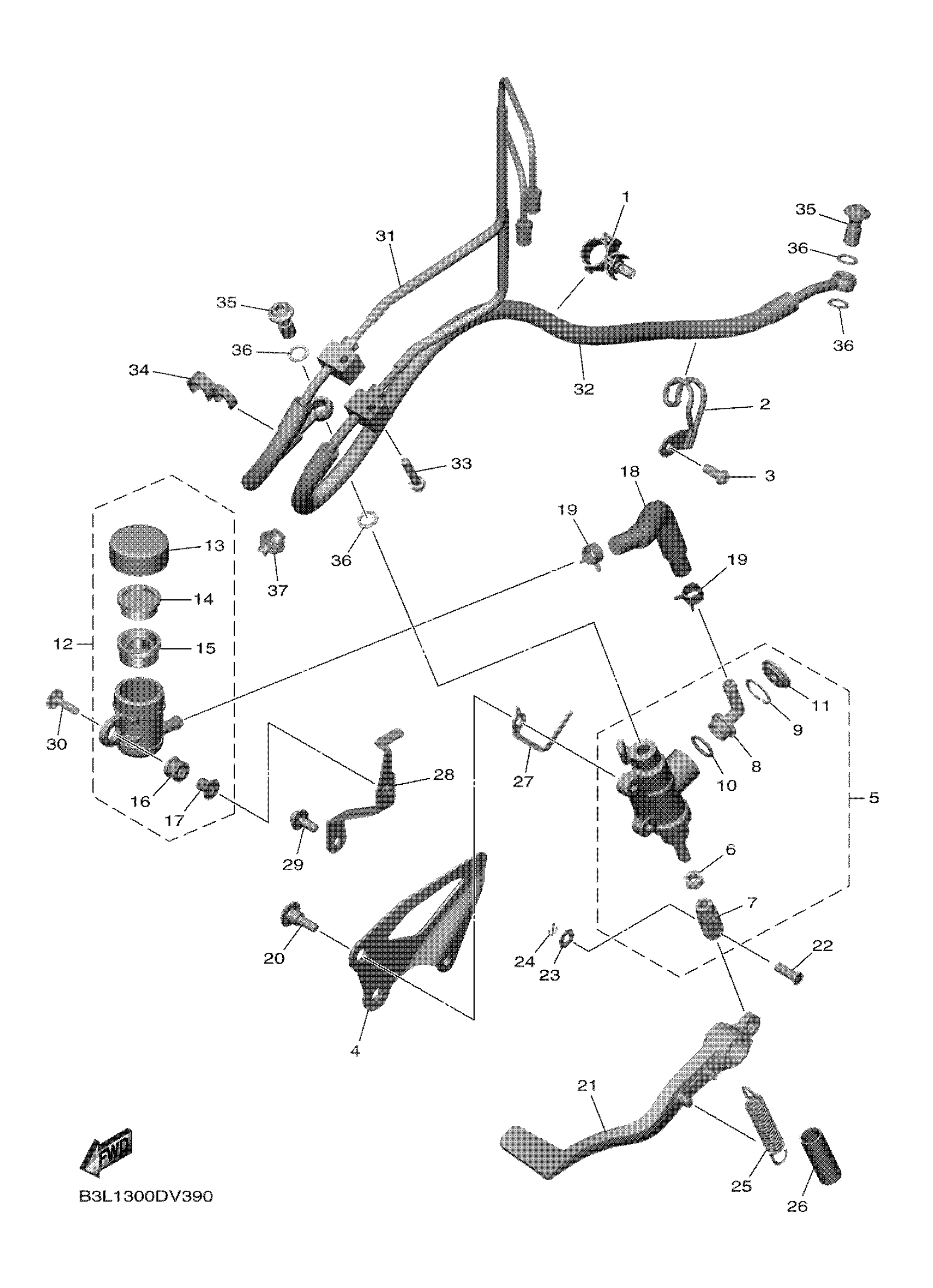

Yamaha YZFR1S1L (YZFR1) D451 2025 REAR MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP

90464-16012-00

$7.49

2

HOLDER, BRAKE HOSE

2CR-2588F-00-00

Unavailable

3

BOLT, BUTTON HEAD

92012-06016-00

$8.49

4

PLATE 2

2CR-27446-00-00

$37.99

5

RR. MASTER CYLINDE

2CR-2583V-00-00

$244.99

6

NUT, HEXAGON SMALL

95317-08700-00

$9.49

7

JOINT

4XV-27222-01-00

$43.99

8

JOINT

4ML-2582A-50-00

$14.49

9

CIRCLIP

2VN-25866-00-00

$6.99

10

O-RING (22U)

93210-15566-00

$7.49

11

COVER, DUST

3FV-2589A-00-00

$20.99

12

RESERVE TANK ASSY

2CR-25804-50-00

$56.99

13

CAP, RESERVOIR

2CR-25852-50-00

Unavailable

14

BUSH,DIAPHRAGM

3GK-25855-50-00

$6.99

15

DIAPHRAGM, RESERVOIR

3GK-25854-50-00

$9.99

16

GROMMET

2C0-26326-00-00

Unavailable

17

COLLAR

90387-05028-00

Unavailable

18

HOSE, RESERVOIR

2CR-25895-50-00

Unavailable

19

CLIP(3FV)

90467-12085-00

Unavailable

20

BOLT(4BP)

90109-066F0-00

Unavailable

21

PEDAL, BRAKE

2CR-27211-00-00

Unavailable

22

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

23

WASHER(6TA)

92907-06200-00

Unavailable

24

PIN, COTTER

91490-16020-00

Unavailable

25

SPRING, TENSION (2X3)

90506-20193-00

Unavailable

26

HOSE

90446-15386-00

Unavailable

27

TUBE, STAY 1

2CR-27131-00-00

Unavailable

28

BRACKET, RESERVE T

2CR-21228-00-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06429-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

31

HOSE, BRAKE 4

B3L-2581J-01-00

Unavailable

32

HOSE, BRAKE 5

B3L-2581K-02-00

Unavailable

33

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

34

CLAMP(6R3)

90464-13M34-00

Unavailable

35

BOLT, UNION

90401-10172-00

Unavailable

36

GASKET

90430-10005-00

Unavailable

37

CLAMP

90464-12013-00

Unavailable
