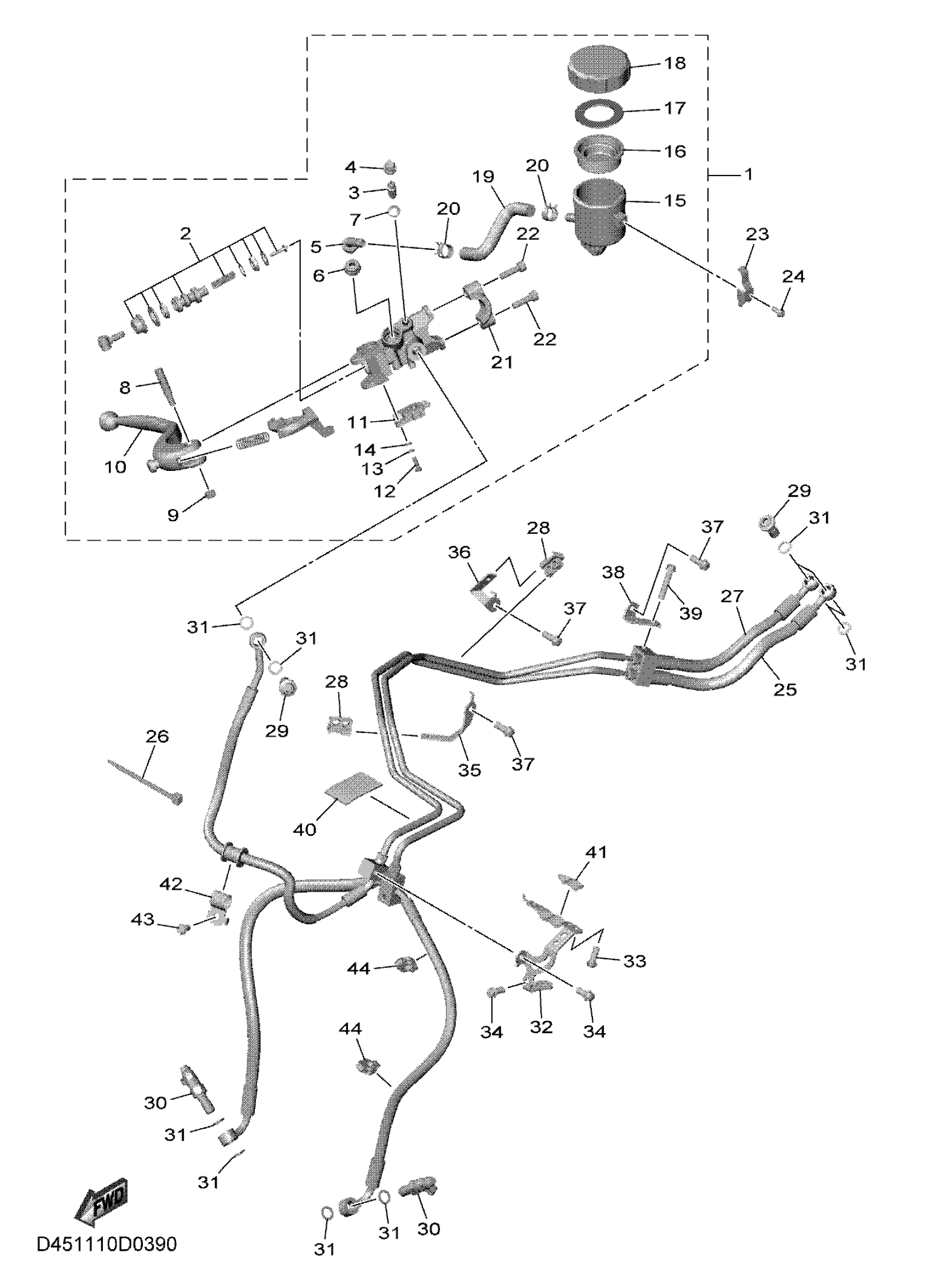

Yamaha YZFR1S1L (YZFR1) D451 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

D45-2583T-00-00

$290.99

2

MASTER CYLINDER SEAL KIT, FR.

B5Y-2580B-00-00

$49.99

3

SCREW, BLEED

3YK-25824-00-00

$8.99

4

CAP

3YK-25825-00-00

Unavailable

5

JOINT

B5Y-2582A-00-00

$4.72

6

O-RING

4BP-2585F-01-00

Unavailable

7

SEAL 1

5VY-25975-00-00

$2.29

8

BOLT, LEVER

B5Y-2589F-00-00

Unavailable

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

LEVER SET

BEB-W2616-00-00

$55.99

11

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

12

SCREW, PAN HEAD

98511-04012-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

TANK, RESERVOIR

5SL-25894-20-00

$38.99

16

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

Unavailable

17

BUSH,DIAPHRAGM

5VY-25855-00-00

Unavailable

18

CAP, RESERVOIR

5VY-25852-00-00

Unavailable

19

HOSE, RESERVOIR

D45-25895-00-00

Unavailable

20

CLIP

90467-120A3-00

Unavailable

21

BRACKET, MASTER CYLINDER

5VS-25867-00-00

Unavailable

22

BOLT

5VS-26332-00-00

Unavailable

23

HOLDER

5VY-2589G-00-00

Unavailable

24

SCREW

5VY-2589H-00-00

Unavailable

25

BRAKE HOSE ASSY

D45-2584A-00-00

Unavailable

26

BAND

3MA-82591-00-00

Unavailable

27

HOSE, BRAKE

D45-2584B-00-00

Unavailable

28

CLAMP

90464-07014-00

Unavailable

29

BOLT, UNION

90401-10172-00

Unavailable

30

BOLT, OIL 1

D45-25877-00-00

Unavailable

31

GASKET

90430-10005-00

Unavailable

32

BRACKET

2CR-2612E-00-00

Unavailable

33

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

34

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

35

BRKT 2

2CR-2612K-00-00

Unavailable

36

BRACKET 3

2CR-2612L-00-00

Unavailable

37

BOLT, FLANGE

95022-06016-00

Unavailable

38

BRACKET 4

2CR-2612M-00-00

Unavailable

39

BOLT, FLANGE

95022-06030-00

Unavailable

40

DAMPER

5H0-8235Y-M0-00

Unavailable

41

DAMPER, LOCATING 1

2CR-2622F-00-00

Unavailable

42

CLAMP 1

90461-08031-00

Unavailable

43

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

44

CLAMP

90464-12013-00

Unavailable
