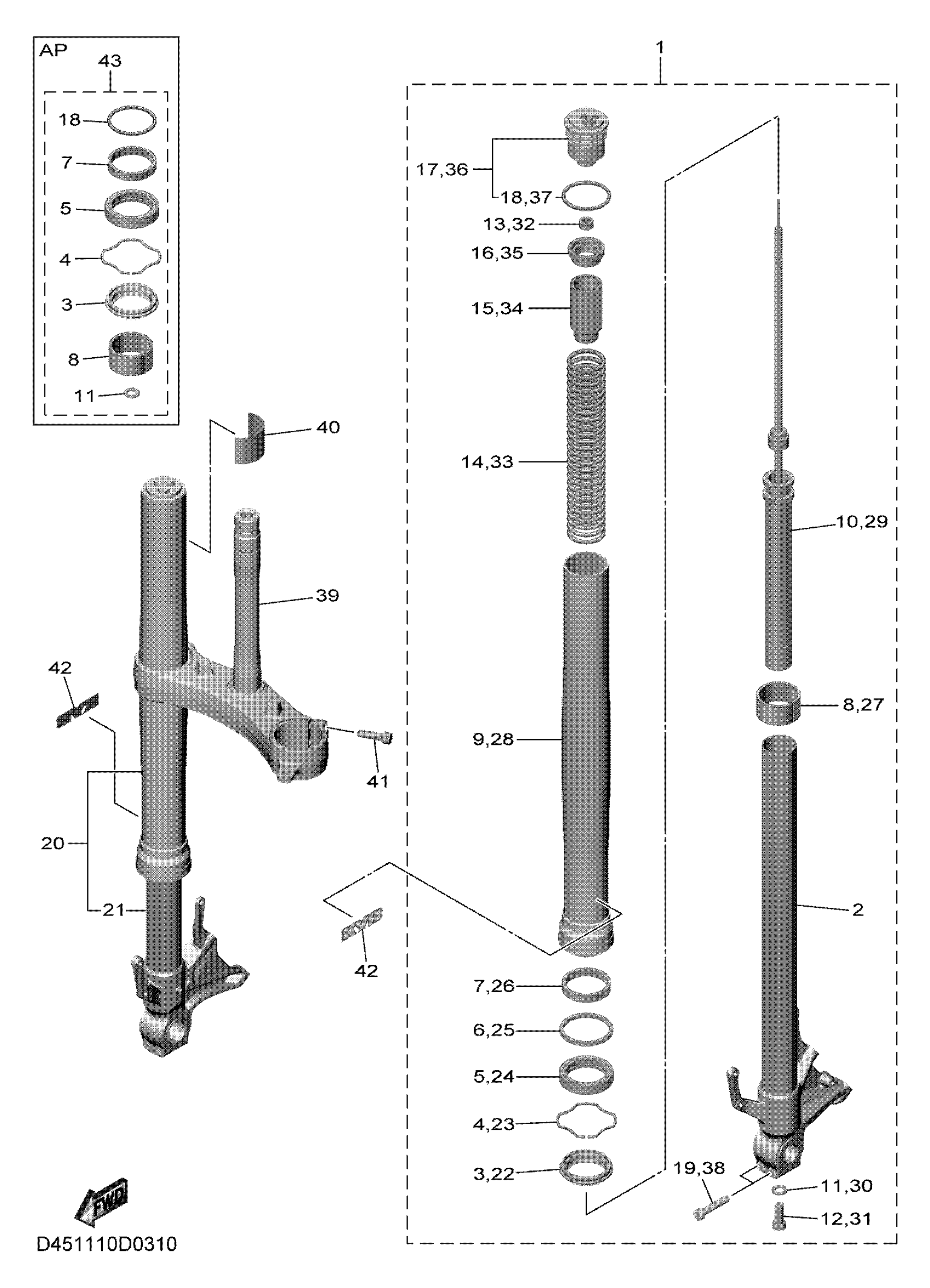

Yamaha YZFR1S1L (YZFR1) D451 2025 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

D45-23102-00-00

Unavailable

2

INNER TUBE COMP.1

D45-23110-00-00

$301.02

3

SEAL, DUST

4PU-23144-00-00

$18.82

4

RING, SNAP

4V4-23153-L0-00

$8.08

5

OIL SEAL

4PU-23145-01-00

$19.58

6

WASHER

4V4-23146-L0-00

$5.55

7

METAL, SLIDE 1

2CR-23125-00-00

$8.92

8

PISTON, FRONT FORK

2CR-23171-01-00

$23.36

9

TUBE, OUTER (L.H)

D45-23126-00-00

$325.48

10

. CYLINDER COMP, FRONT FORK

D45-23170-00-00

$339.76

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

NUT

3LC-23357-00-00

$6.33

14

SPRING, FRONT FORK

D45-23141-00-00

$27.30

15

SPACER

5VY-23118-00-00

Unavailable

16

GUIDE, SPRING

2CR-23117-00-00

Unavailable

17

BOLT, CAP

D45-23111-00-00

Unavailable

18

O-RING

39P-23147-00-00

Unavailable

19

BOLT,SOCKET

91314-08040-00

Unavailable

20

FRONT FORK ASSY (R

D45-23103-00-00

Unavailable

21

INNER TUBE COMP.2

D45-23120-00-00

Unavailable

22

SEAL, DUST

4PU-23144-00-00

$18.82

23

RING, SNAP

4V4-23153-L0-00

$8.08

24

OIL SEAL

4PU-23145-01-00

$19.58

25

WASHER

4V4-23146-L0-00

$5.55

26

METAL, SLIDE 1

2CR-23125-00-00

$8.92

27

PISTON, FRONT FORK

2CR-23171-01-00

$23.36

28

TUBE, OUTER (L.H)

D45-23126-00-00

$325.48

29

. CYLINDER COMP, FRONT FORK

D45-23170-10-00

$339.76

30

GASKET

509-23158-L0-00

$13.39

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

32

NUT

3LC-23357-00-00

$6.33

33

SPRING, FRONT FORK

D45-23141-00-00

$27.30

34

SPACER

5VY-23118-00-00

Unavailable

35

GUIDE, SPRING

2CR-23117-00-00

Unavailable

36

BOLT, CAP

D45-23111-10-00

Unavailable

37

O-RING

39P-23147-00-00

Unavailable

38

BOLT,SOCKET

91314-08040-00

Unavailable

39

UNDER BRACKET COMP.

B3L-23340-00-00

Unavailable

40

PROTECTOR

5PW-23472-00-00

Unavailable

41

BOLT,SOCKET

91314-08030-00

Unavailable

42

EMBLEM

D45-23108-00-00

Unavailable

43

FORK SEALS KIT

D45-W003B-00-00

Unavailable
