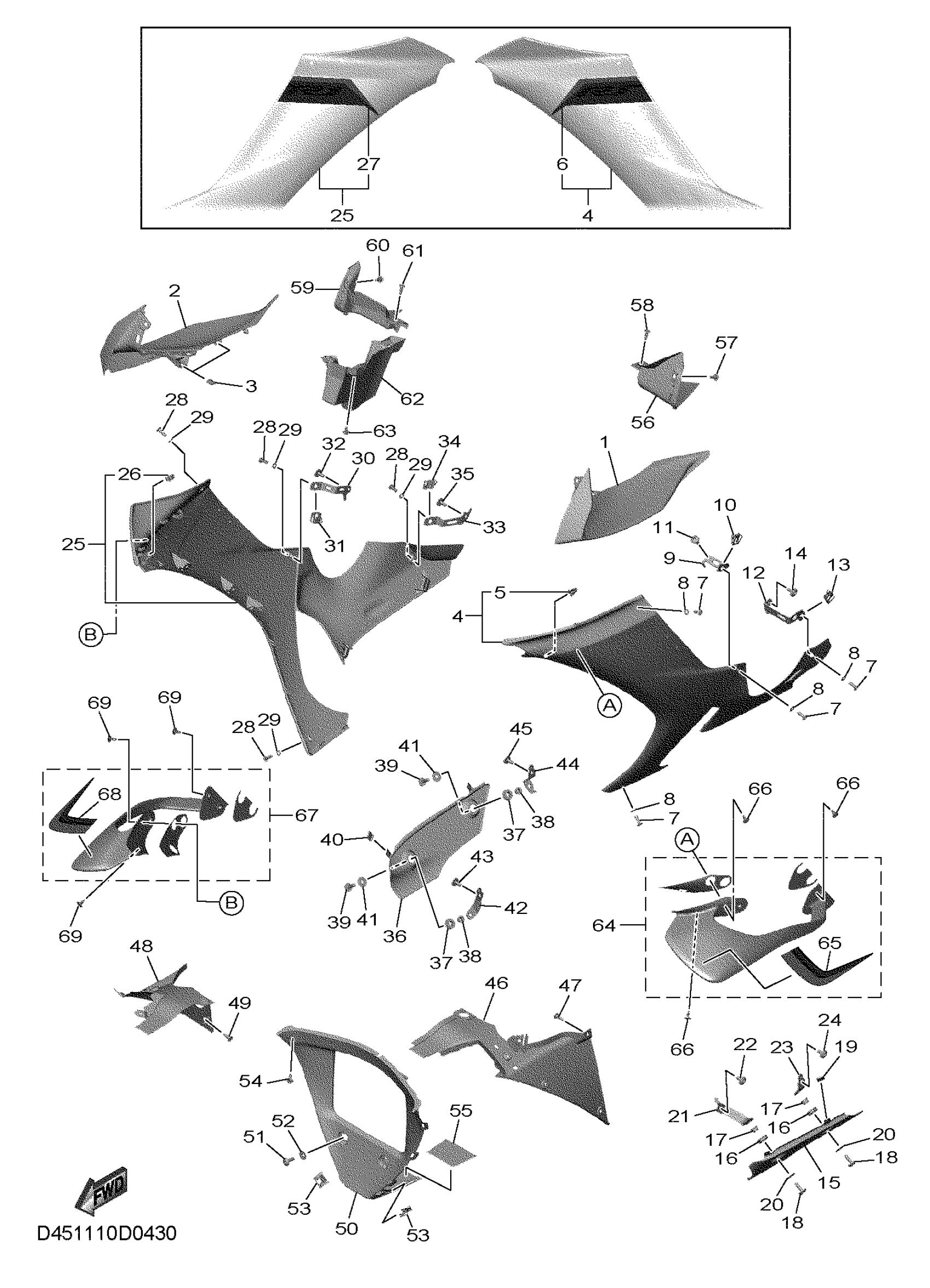

Yamaha YZFR1S1L (YZFR1) D451 2025 COWLING 2 Diagram
#
4
PANEL ASSEMBLY 1
D45-Y283U-10-P1
Unavailable
15
PROTECTOR 1
B3L-2834V-00-00
Unavailable
16
GROMMET(2JG)
90480-14477-00
Unavailable
17
COLLAR
90387-06307-00
Unavailable
18
SCREW(4DN)
90149-06302-00
Unavailable
19
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
20
WASHER, PLATE
90201-06095-00
Unavailable
21
BRKT., 17
B3L-2833R-00-00
Unavailable
23
BRKT.,18
B3L-2833T-00-00
Unavailable
25
PANEL ASSEMBLY 2
D45-Y283V-10-P1
Unavailable
27
GRAPHIC 2
D45-28392-10-00
Unavailable
30
BRACKET 15
B3L-2833M-00-00
Unavailable
33
BRACKET 16
B3L-2833N-00-00
Unavailable
36
PROTECTOR 2
B3L-2834W-00-00
Unavailable
37
GROMMET(2JG)
90480-14477-00
Unavailable
38
COLLAR
90387-06307-00
Unavailable
39
SCREW(4DN)
90149-06302-00
Unavailable
40
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
41
WASHER, PLATE
90201-06095-00
Unavailable
42
BRKT.,19
B3L-2833U-00-00
Unavailable
44
BRKT.,20
B3L-2833V-00-00
Unavailable
46
PANEL, INNER 1
B3L-2836K-00-00
Unavailable
47
RIVET
90269-06008-00
Unavailable
48
PANEL, INNER 2
B3L-2836L-00-00
Unavailable
49
RIVET
90269-06008-00
Unavailable
50
PANEL, INNER 3
B3L-2836M-00-00
Unavailable
51
SCREW(4DN)
90149-06302-00
Unavailable
52
COLLAR
90387-06309-00
Unavailable
54
RIVET
90269-06008-00
Unavailable
55
PROTECTOR
B3L-23472-00-00
Unavailable
56
PANEL, CONSOLE 1
B3L-2837L-00-00
Unavailable
57
BOLT
90109-05018-00
Unavailable
58
RIVET
90269-06008-00
Unavailable
59
PANEL, CONSOLE 2
B3L-2837M-00-00
Unavailable
60
BOLT
90109-05018-00
Unavailable
61
RIVET
90269-06008-00
Unavailable
62
BOX 1
B3L-2838K-01-00
Unavailable
63
BOLT
90111-05011-00
Unavailable
64
SPOILER,SIDE ASSEMBLY 1
D45-Y28A8-10-00
Unavailable
65
GRAPHIC 5
D45-28398-10-00
Unavailable
66
RIVET
90269-05012-00
Unavailable
67
SPOILER,SIDE ASSEMBLY 2
D45-Y28A9-10-00
Unavailable
68
GRAPHIC 6
D45-28399-10-00
Unavailable
69
RIVET
90269-05012-00
Unavailable
