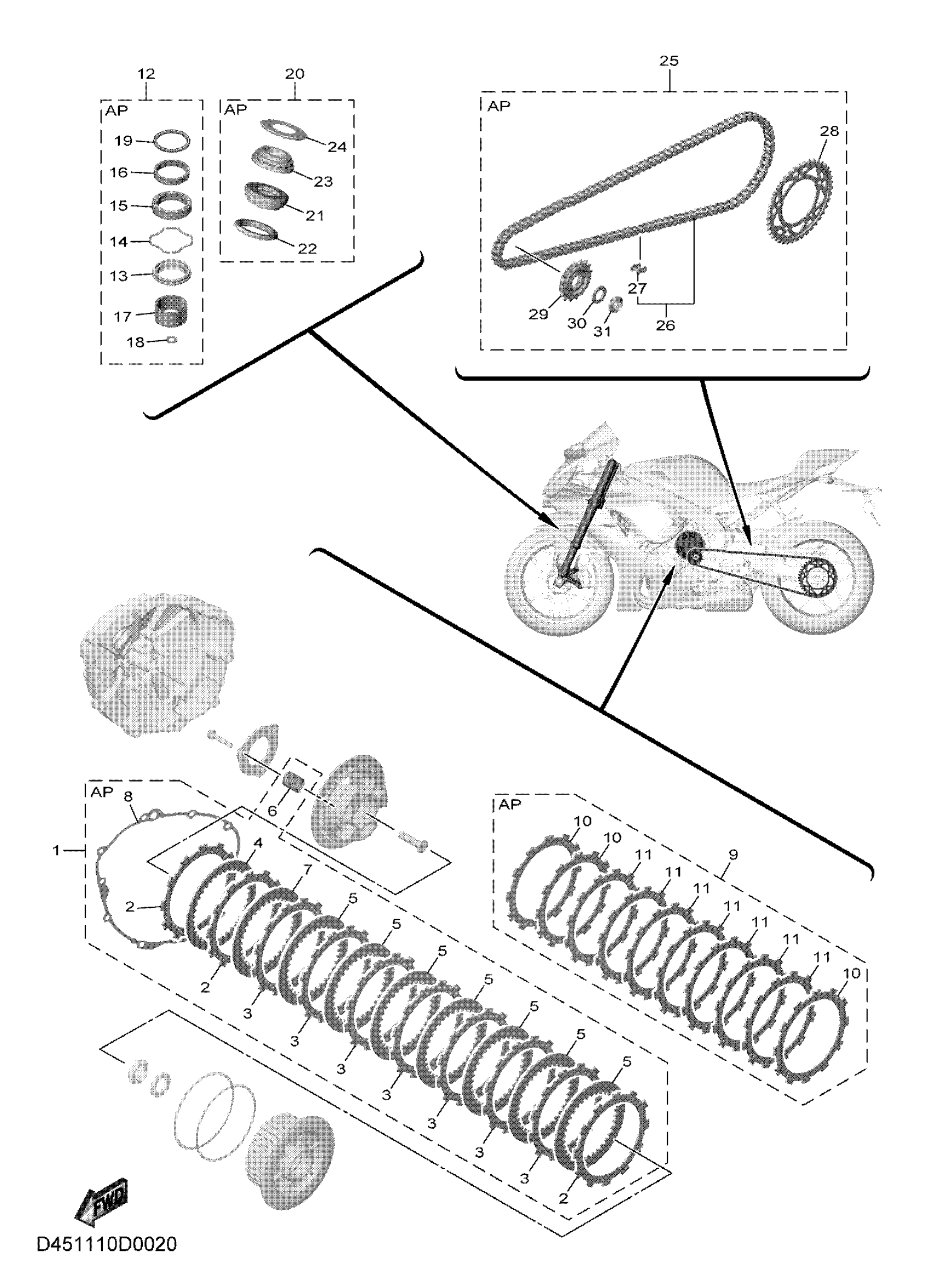

Yamaha YZFR1S1L (YZFR1) D451 2025 2 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B3L-W001G-00-00

$193.39

2

PLATE, FRICTION 2

2CR-16330-00-00

$23.48

3

PLATE, FRICTION

2CR-16321-00-00

$21.21

4

PLATE, CLUTCH 1

2CR-16324-00-00

$7.20

5

PLATE, CLUTCH 2

2CR-16325-00-00

$9.91

6

SPRING, COMPRESSIO

2CR-16173-00-00

$10.74

7

PLATE, CLUTCH 2

2CR-16325-00-00

$9.91

7

PLATE, CLUTCH 2

2CR-16325-10-00

$7.24

7

PLATE, CLUTCH 2

2CR-16325-20-00

$7.24

8

GASKET, CRANKCASE

2CR-15461-00-00

$18.43

9

FRICTION PLATE KIT

B67-W001M-00-00

Unavailable

10

PLATE, FRICTION 2

2CR-16330-00-00

$23.48

11

PLATE, FRICTION

2CR-16321-00-00

$21.21

12

FORK SEALS KIT

D45-W003B-00-00

$69.14

13

SEAL, DUST

4PU-23144-00-00

$18.82

14

RING, SNAP

4V4-23153-L0-00

Unavailable

15

OIL SEAL

4PU-23145-01-00

Unavailable

16

METAL, SLIDE 1

2CR-23125-00-00

Unavailable

17

PISTON, FRONT FORK

2CR-23171-01-00

Unavailable

18

GASKET

509-23158-L0-00

Unavailable

19

O-RING

39P-23147-00-00

Unavailable

20

STEERING BEARING KIT

BMP-W000B-00-00

Unavailable

21

BEARING

93399-99957-00

Unavailable

22

SEAL, STEERING

3FV-23462-00-00

Unavailable

23

BEARING(3FV)

93399-99932-00

Unavailable

24

COVER, BALL RACE 1

4XV-23415-01-00

Unavailable

25

CHAIN & SPROCKET K

B3L-W001A-00-00

Unavailable

26

CHAIN (DID525HV3 114LL)

94A40-12114-00

Unavailable

27

JOINT, CHAIN (DID525HV3 ZJ)

94682-5202R-00

Unavailable

28

SPROCKET, DRIVEN (

2CR-25441-00-00

Unavailable

29

SPROCKET, DRIVE

2CR-17460-00-00

Unavailable

30

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

31

NUT

90179-22018-00

Unavailable
