Description

Price

1

SINGLE SEAT ASSY

5PW-24710-01-00

Unavailable

2

. SEAT COVER COMP

5PW-2470F-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

4

TANDEM SEAT ASSY

5PW-24750-00-00

$215.99

5

. COVER, TANDEM SEAT

5PW-24751-00-00

Unavailable

6

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

7

PLATE

5JJ-24792-01-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

COVER,2

5JJ-2475X-01-00

$6.99

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

CABLE, SEAT LOCK

5JJ-2478E-00-00

Unavailable

12

SEAT LOCK ASSY

3CK-W2470-00-00

$84.99

13

STAY, LOCK

5PW-2117K-00-00

Unavailable

14

SCREW(4HM)

90149-06308-00

$8.49

15

COLLAR

90387-06066-00

$8.49

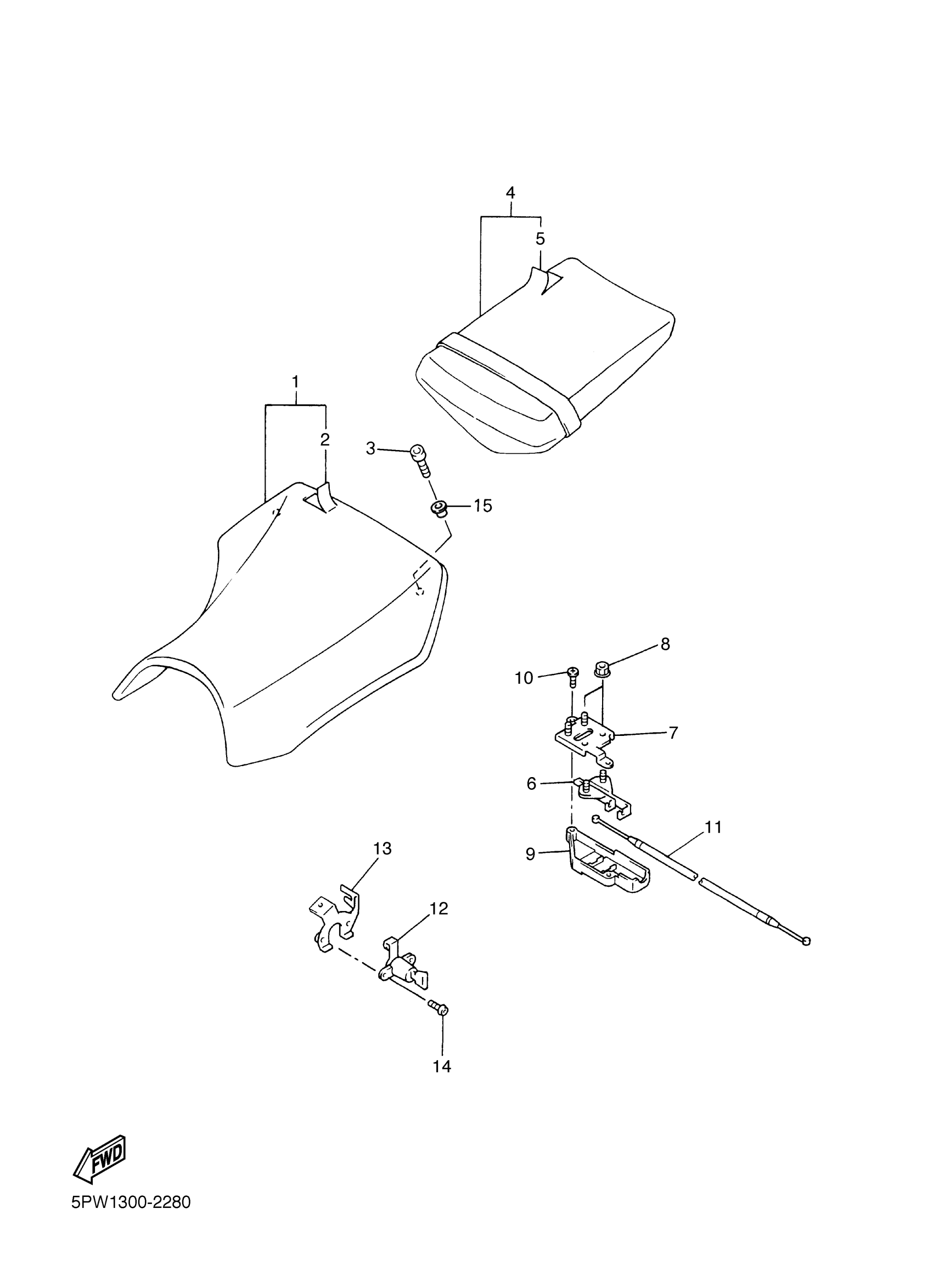

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 SEAT Diagram

SINGLE SEAT ASSY

. SEAT COVER COMP

BOLT, HEXAGON SOCKET HEAD

TANDEM SEAT ASSY

. COVER, TANDEM SEAT

SEAT LOCK ASSY

PLATE

NUT, FLANGE(4MV)

COVER,2

SCREW, TRUSS TAP.

CABLE, SEAT LOCK

SEAT LOCK ASSY

STAY, LOCK

SCREW(4HM)

COLLAR
