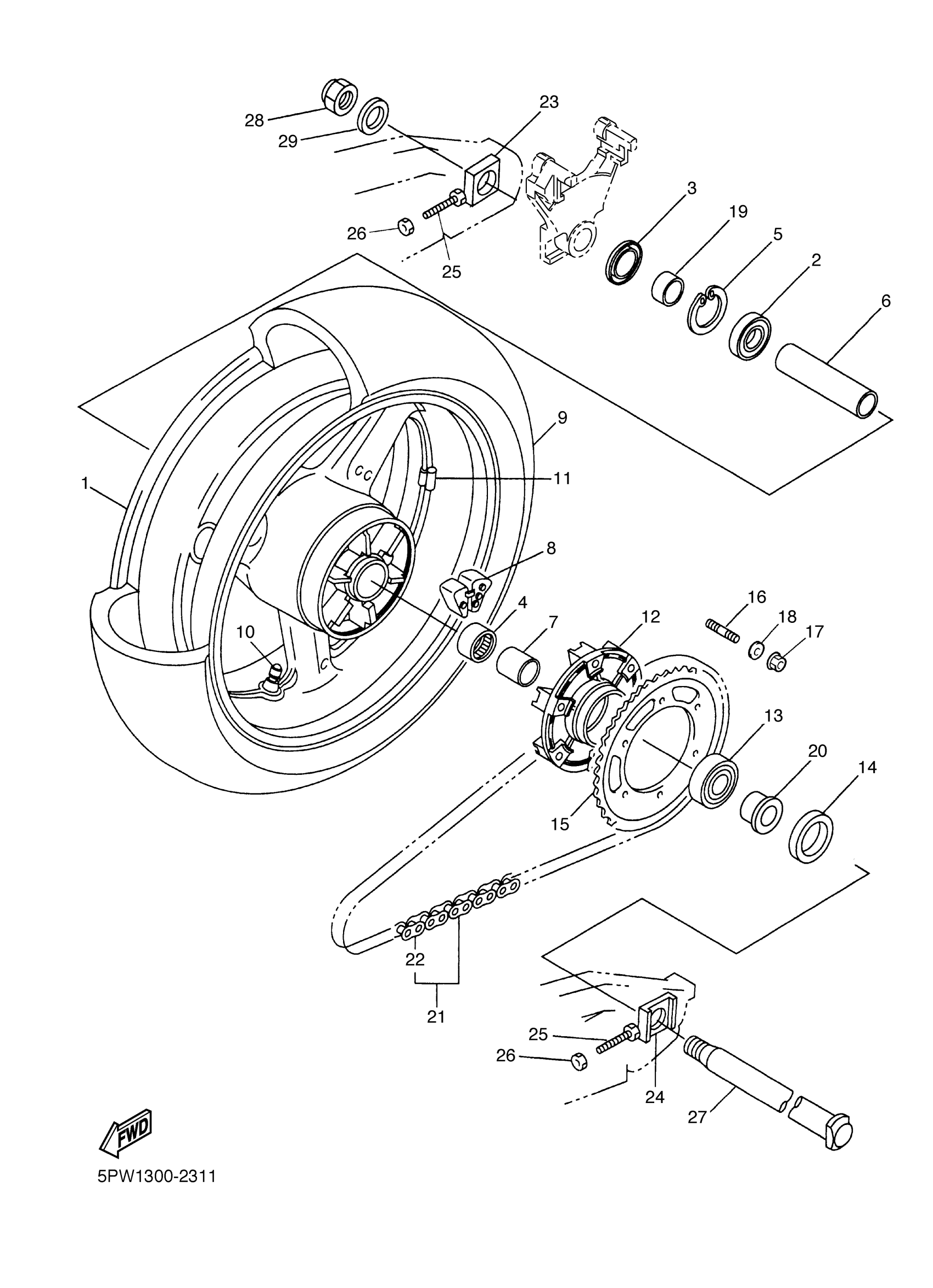

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
5PW-25338-01-98
Unavailable
5
CIRCLIP
93420-61M07-00
Unavailable
7
COLLAR, WHEEL
4XV-25383-00-00
Unavailable
8
DAMPER
5PW-25364-00-00
Unavailable
9
TIRE (190/50 ZR17M/C 73W D208)
94119-17019-00
Unavailable
11
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
12
CLUTCH, HUB
5PW-25366-00-00
Unavailable
15
SPROCKET, DRIVEN (43T)
4XV-25443-21-00
Unavailable
16
BOLT, STUD(1TX)
90116-10485-00
Unavailable
17
NUT, SELF-LOCKING
90185-10009-00
Unavailable
18
WASHER, PLATE
90201-10021-00
Unavailable
19
COLLAR
90387-28016-00
Unavailable
20
COLLAR
90387-28019-00
Unavailable
21
CHAIN
9Y582-05113-00
Unavailable
22
JOINT, CHAIN
94682-05031-00
Unavailable
23
PULLER, CHAIN 1
4XV-25388-00-00
Unavailable
24
PULLER, CHAIN 2
4XV-25389-00-00
Unavailable
25
BOLT(3GM)
90101-08766-00
Unavailable
26
NUT(6TA)
95337-08600-00
Unavailable
27
AXLE, WHEEL
4XV-25381-10-00
Unavailable
28
NUT, SELF-LOCKING
90185-24007-00
Unavailable
29
WASHER, PLATE
90201-25020-00
Unavailable
