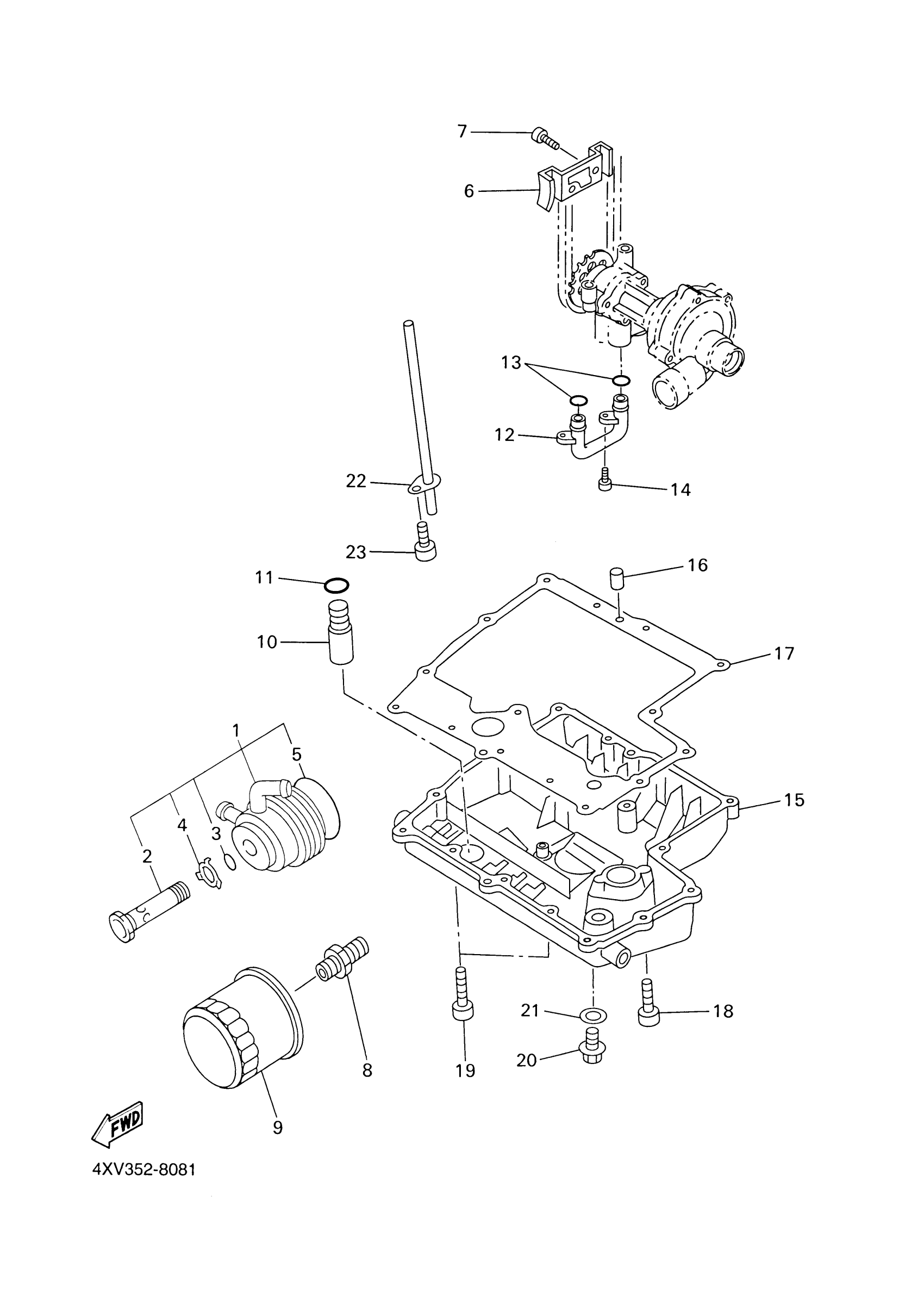

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 OIL CLEANER Diagram

#

Description
Price

1

OIL COOLER ASSY

5PW-13470-00-00

Unavailable

2

BOLT, UNION

5PW-12822-00-00

$87.99

3

O-RING

5PW-13473-00-00

$16.49

4

WASHER

5PW-13318-00-00

Unavailable

5

GASKET

5PW-13475-00-00

$40.99

6

HOLDER

4XV-13898-00-00

Unavailable

7

BOLT,SOCKET

91317-06012-00

$8.49

8

BOLT, UNION

90401-20007-00

Unavailable

9

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

$16.49

10

RELIEF VALVE ASSY

5PW-13490-00-00

Unavailable

11

O-RING (22U)

93210-15566-00

$7.49

12

PIPE, OIL 1

4XV-13416-00-00

Unavailable

13

O-RING

93210-14003-00

$8.49

14

BOLT,SOCKET

91317-06012-00

$8.49

15

COVER, STRAINER

5PW-13417-00-00

Unavailable

16

PIN, DOWEL

99530-08012-00

Unavailable

17

GASKET, STRAINER COVER

5LV-13414-00-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

BOLT,SOCKET

91317-06025-00

Unavailable

20

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

21

GASKET

214-11198-01-00

Unavailable

22

PIPE, DELIVERY 1

5PW-13161-00-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

$8.49
