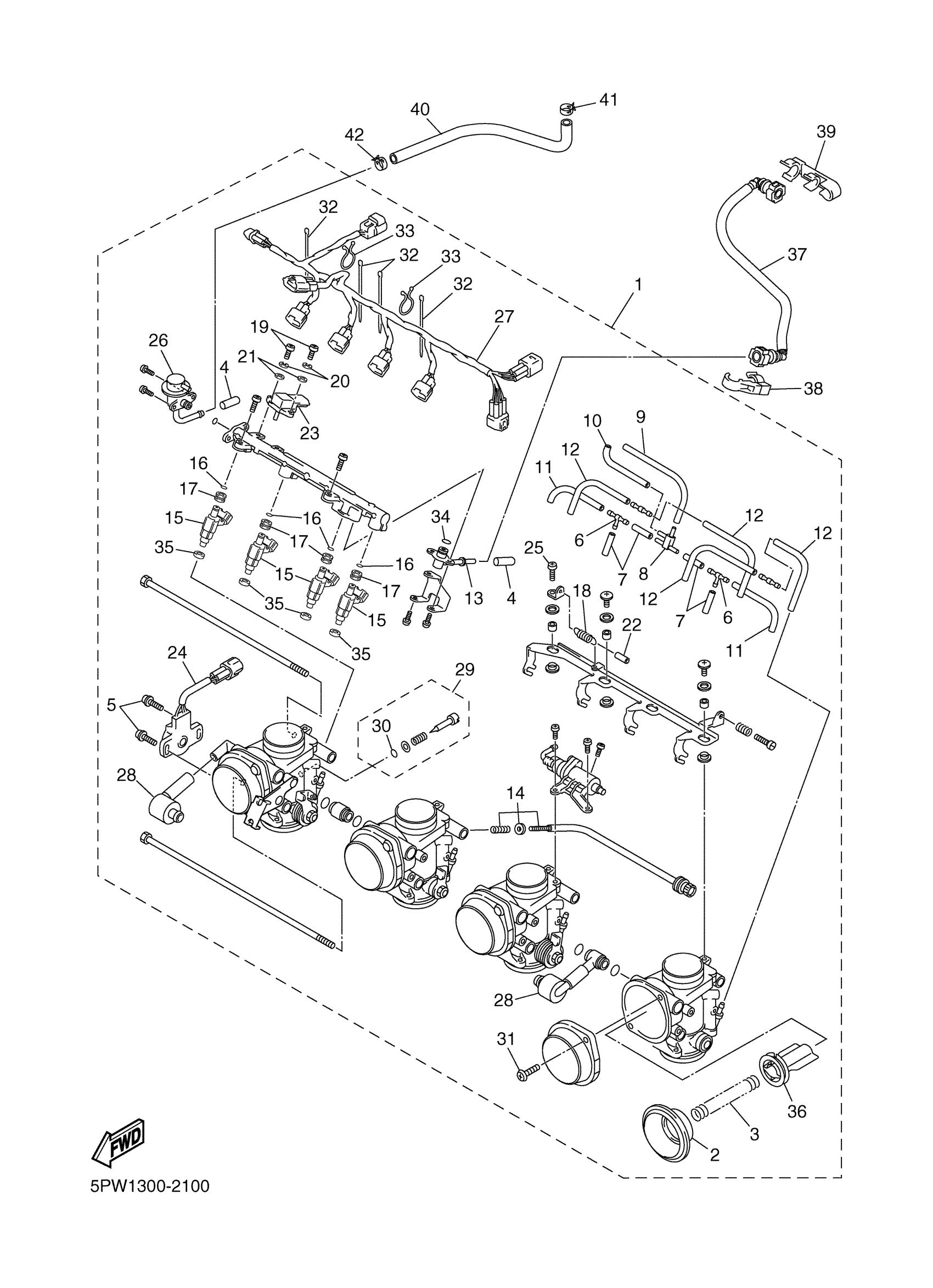

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
5PW-13750-00-00
Unavailable
1
THROTTLE BODY ASSY
5PW-13750-20-00
Unavailable
2
. DIAPHRAGM
5PW-24411-00-00
Unavailable
6
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
8
CONNECTOR
5PW-1410F-00-00
Unavailable
9
PIPE 1
5PW-14348-00-00
Unavailable
10
PIPE
5PW-14349-00-00
Unavailable
11
. PIPE 1
5FL-14348-00-00
Unavailable
13
.. PIPE, FUEL INJECTION 1
5JW-12881-00-00
Unavailable
14
THROTTLE SCREW SET
5PW-14103-00-00
Unavailable
15
. INJECTOR ASSY
5PW-13761-00-00
Unavailable
16
O-RING
5FL-14147-00-00
Unavailable
17
RUBBER, INJECTOR
5FL-13766-00-00
Unavailable
18
SPRING
5JW-14589-00-00
Unavailable
19
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
20
WASHER(3SX)
92907-05100-00
Unavailable
21
WASHER(1RW)
92907-05600-00
Unavailable
22
SEAT, SPRING
5DM-14936-00-00
Unavailable
23
SENSOR, PRESSURE
5JW-82380-00-00
Unavailable
24
. THROTTLE SENSOR ASSY
5PW-85885-00-00
Unavailable
25
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
26
. REGULATOR, PRESSURE
5PW-13906-00-00
Unavailable
27
. EXTENSION, WIRE HARNESS
5PW-82386-00-00
Unavailable
28
NET, FILTER 2
3LN-24515-00-00
Unavailable
29
AIR SCREW SET
5JW-14104-00-00
Unavailable
30
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
31
SCREW
4KM-14216-00-00
Unavailable
32
CLIP
4KM-14137-00-00
Unavailable
33
CLIP
5PW-14137-00-00
Unavailable
34
O-RING
5JW-14147-00-00
Unavailable
35
GASKET
90430-09002-00
Unavailable
36
VALVE, THROTTLE 1
5PW-14112-00-00
Unavailable
37
PIPE, FUEL 1
5PW-13971-00-00
Unavailable
38
CLAMP
90464-16007-00
Unavailable
39
CLAMP
90464-16005-00
Unavailable
40
PIPE, FUEL 2
5PW-13972-00-00
Unavailable
41
CLIP
90467-12003-00
Unavailable
42
CLIP
90467-12003-00
Unavailable
