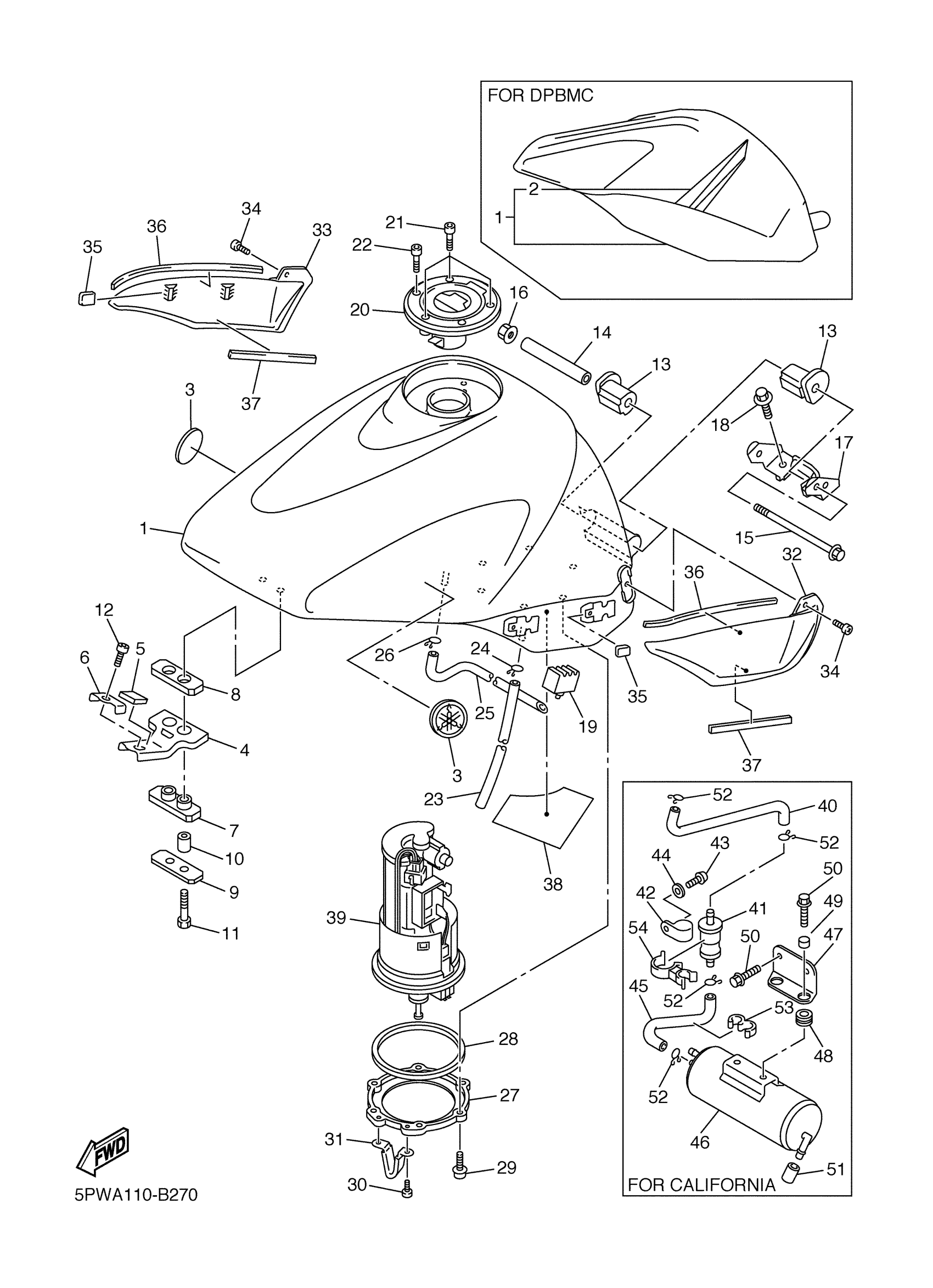

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
5PW-Y2410-30-02
Unavailable
1
FUEL TANK COMP. (YAMAHA BLACK)
5PW-YK241-30-33
Unavailable
1
FUEL TANK COMP.
5PW-YK241-30-P2
Unavailable
2
. GRAPHIC SET (DEEP PURPLISH BLUE METALLIC C)
5PW-24240-10-00
Unavailable
3
EMBLEM
5PW-2413B-00-00
Unavailable
4
BRACKET, FUEL TANK 1
5PW-24191-00-00
Unavailable
5
DAMPER 5
1AE-2837J-00-00
Unavailable
6
WASHER, SPECIAL
5JJ-24186-00-00
Unavailable
7
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
8
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
9
WASHER, SPECIAL
5JJ-24187-00-00
Unavailable
10
COLLAR
90387-06006-00
Unavailable
13
DAMPER, LOCATING 1
4YR-24181-00-00
Unavailable
14
COLLAR
90387-06007-00
Unavailable
15
BOLT, FLANGE
95817-06110-00
Unavailable
16
NUT,SELF-LOCKING
95607-06200-00
Unavailable
17
BRACKET, TANK FITTING
5PW-2413Y-00-00
Unavailable
18
BOLT, WITH WASHER
90119-06242-00
Unavailable
19
DAMPER, LOCATING 3
4XV-24183-00-00
Unavailable
20
CAP ASSY
39P-24602-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
22
BOLT, SOCKET
91317-05010-00
Unavailable
23
HOSE
90445-11M78-00
Unavailable
24
CLIP
90467-090A2-00
Unavailable
25
PIPE 2
5PW-24312-00-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
27
BRACKET, FUEL PUMP
5PW-24491-00-00
Unavailable
28
O-RING
19B-24486-01-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-05014-00
Unavailable
30
SCREW, BINDING
98907-05008-00
Unavailable
31
BRACKET, FUEL TANK 2
5PW-24192-00-00
Unavailable
32
COVER, SIDE 1
5PW-24129-00-00
Unavailable
33
COVER, SIDE 2
5PW-24139-00-00
Unavailable
34
SCREW, BINDING
90154-05074-00
Unavailable
35
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
36
DAMPER, PLATE 1
5PW-2414H-00-00
Unavailable
37
DAMPER, PLATE 2
5PW-2414J-00-00
Unavailable
38
PROTECTOR, FUEL TANK
5PW-24141-00-00
Unavailable
39
FUEL PUMP COMP.
5PW-13907-05-00
Unavailable
40
PIPE 3
5PW-24313-00-00
Unavailable
41
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
42
CLAMP
90464-15014-00
Unavailable
43
SCREW, PAN
98517-05012-00
Unavailable
44
WASHER(1RW)
92907-05600-00
Unavailable
45
PIPE 4
5PW-24314-00-00
Unavailable
46
CANISTER ASSY
5PW-24170-00-00
Unavailable
47
BRACKET, CANISTOR
5PW-2419F-00-00
Unavailable
48
GROMMET (1E5)
90480-13163-00
Unavailable
49
COLLAR(42G)
90387-062L2-00
Unavailable
50
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
51
HOSE (L70)
90445-112E0-00
Unavailable
52
CLIP
90467-090A2-00
Unavailable
53
CLAMP(6M7)
90464-09M31-00
Unavailable
54
CLAMP
90464-20004-00
Unavailable
