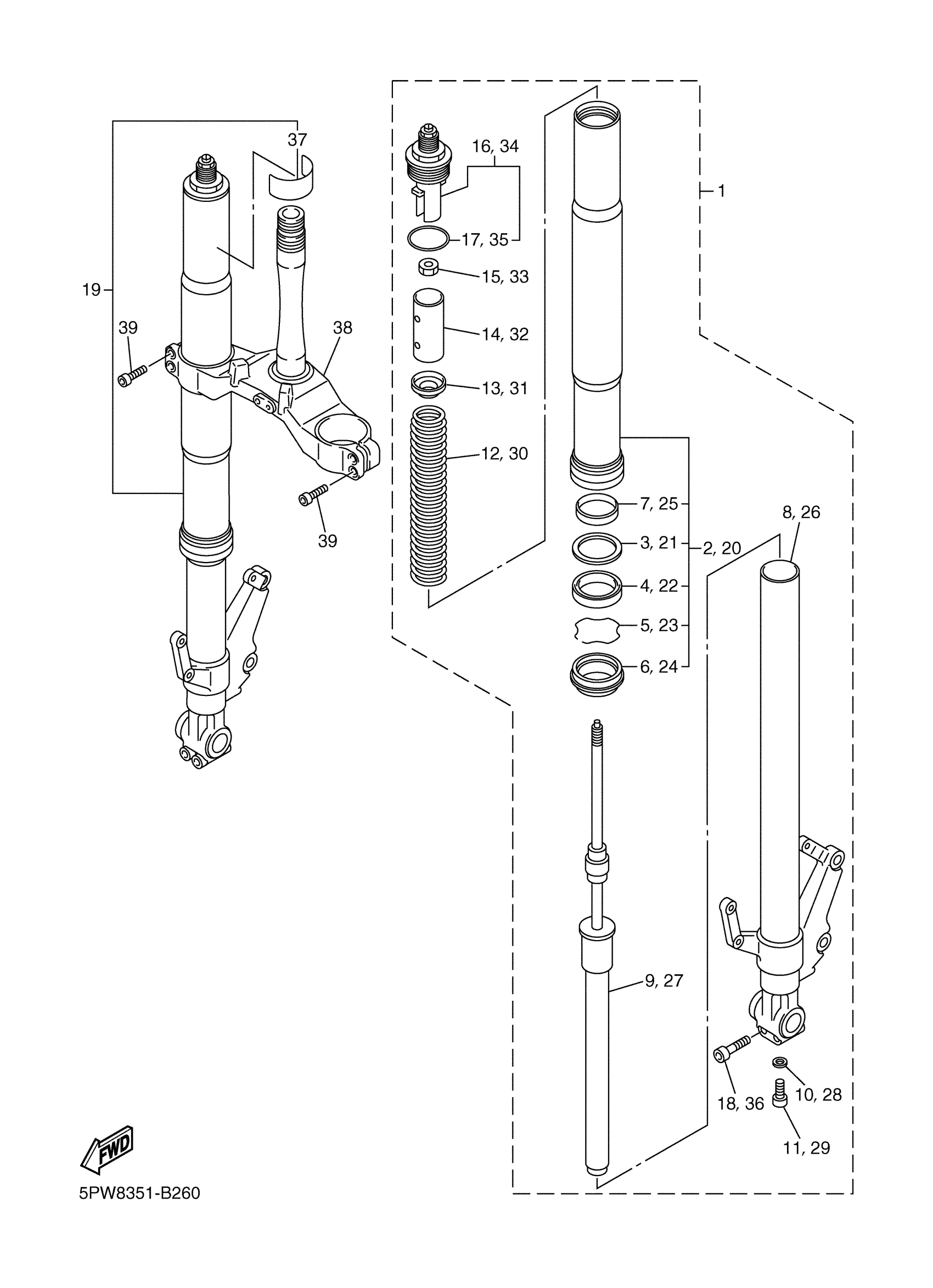

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
5PW-23102-01-00
Unavailable
2
. TUBE, OUTER
5PW-23136-00-00
Unavailable
8
. INNER TUBE COMP 1
5PW-23110-00-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
5PW-23170-00-00
Unavailable
12
. SPRING, FRONT FORK
5PW-23141-00-00
Unavailable
13
SEAT, SPRING UPPER
4XV-23142-00-00
Unavailable
14
. SPACER
5PW-23118-00-00
Unavailable
16
. BOLT, CAP
5PW-23111-00-00
Unavailable
17
O-RING
3XJ-23147-L0-00
Unavailable
18
BOLT,SOCKET
91314-08040-00
Unavailable
19
FRONT FORK ASSY (R.H)
5PW-23103-01-00
Unavailable
20
. TUBE, OUTER
5PW-23136-00-00
Unavailable
26
. INNER TUBE COMP 2
5PW-23120-00-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
5PW-23170-00-00
Unavailable
30
. SPRING, FRONT FORK
5PW-23141-00-00
Unavailable
31
SEAT, SPRING UPPER
4XV-23142-00-00
Unavailable
32
. SPACER
5PW-23118-00-00
Unavailable
34
. BOLT, CAP
5PW-23111-00-00
Unavailable
35
O-RING
3XJ-23147-L0-00
Unavailable
36
BOLT,SOCKET
91314-08040-00
Unavailable
37
PROTECTOR
5PW-23472-00-00
Unavailable
38
UNDER BRACKET COMP.
5PW-23340-00-00
Unavailable
39
BOLT,SOCKET
91314-08030-00
Unavailable
