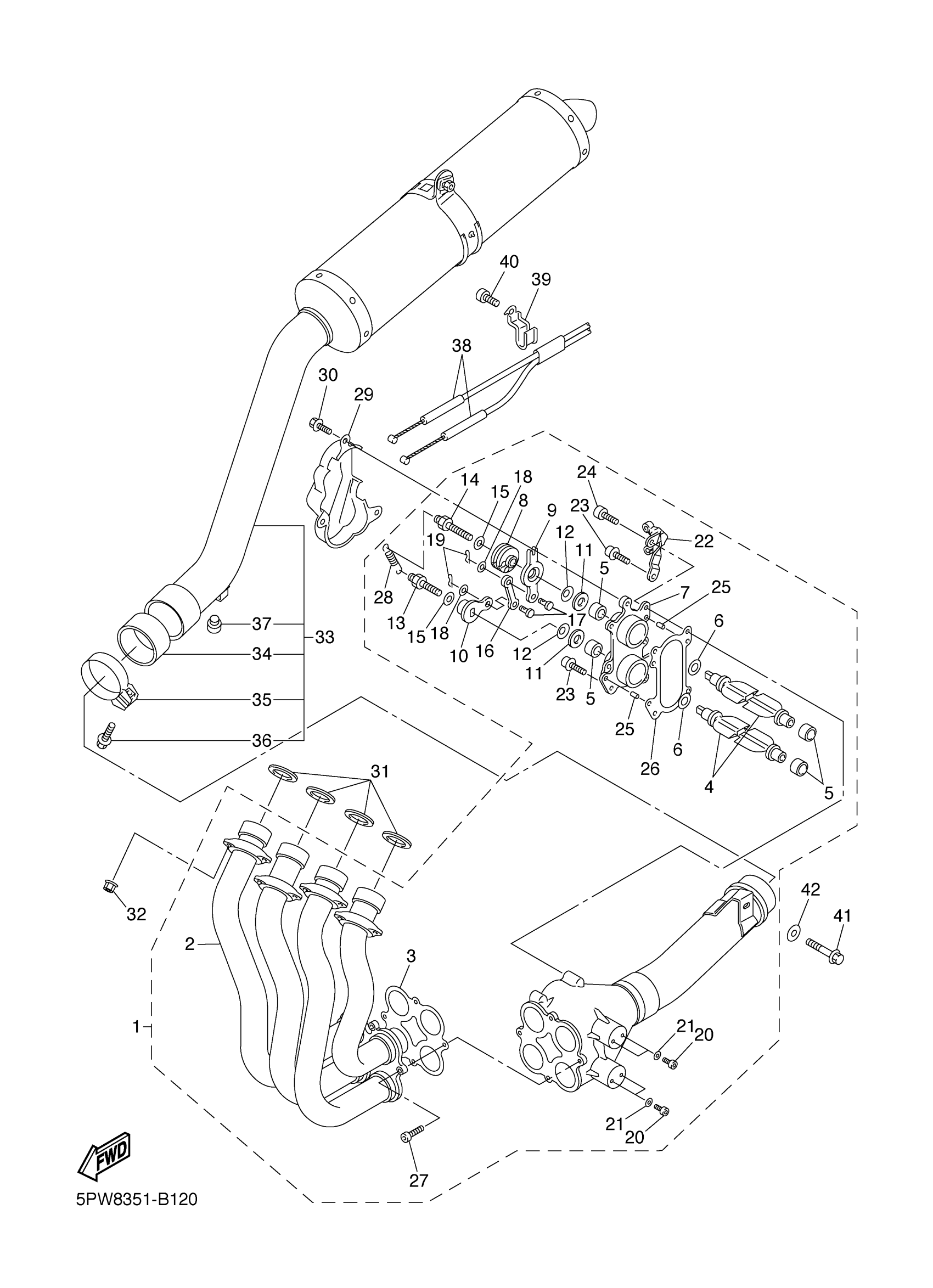

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 EXHAUST Diagram
#
1
EXHAUST PIPE ASSY 1
5PW-14610-01-00
Unavailable
2
. EXHAUST PIPE COMP
5PW-14602-01-00
Unavailable
3
GASKET, EXHAUST PIPE
5PW-14623-00-00
Unavailable
4
. ARM, SHAFT (VALVE)
5PW-14821-00-00
Unavailable
5
. COLLAR
5PW-14638-01-00
Unavailable
6
. WASHER, PLATE
90201-14014-00
Unavailable
7
. HOUSING
5PW-14811-01-00
Unavailable
8
. PULLEY
5PW-14865-00-00
Unavailable
9
. CAP, CASE
5PW-14889-00-00
Unavailable
10
. CAP, CASE
5PW-14858-00-00
Unavailable
11
. WASHER, PLATE
90201-10M76-00
Unavailable
13
. BOLT, HOOK
5PW-14684-00-00
Unavailable
14
. BOLT
5PW-14777-00-00
Unavailable
16
. ROD
5PW-14836-00-00
Unavailable
17
. PIN
5PW-1469V-00-00
Unavailable
18
WASHER, PLATE (371)
90201-06431-00
Unavailable
19
CIRCLIP (J10)
93410-06053-00
Unavailable
20
BOLT,SOCKET
91380-04006-00
Unavailable
21
WASHER, PLAIN (646)
92990-04600-00
Unavailable
22
BRACKET
5PW-14867-00-00
Unavailable
23
BOLT, WITH WASHER(1FK)
90119-06115-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD
90110-06025-00
Unavailable
25
PIN, DOWEL(6R7)
93606-07M17-00
Unavailable
26
. GASKET 3
5PW-14643-00-00
Unavailable
27
BOLT, HEXAGON SOCKET HEAD
90110-06025-00
Unavailable
28
SPRING, TENSION
90506-10003-00
Unavailable
29
PROTECTOR, EXHAUST
5PW-14826-00-00
Unavailable
30
BOLT, WITH WASHER(2TK)
90119-06187-00
Unavailable
31
GASKET, EXHAUST PIPE
4FM-14613-00-00
Unavailable
32
NUT (22U)
90179-08410-00
Unavailable
33
MUFFLER ASSY 1
5PW-14710-11-00
Unavailable
34
GASKET, MUFFLER
4XV-14714-00-00
Unavailable
35
. BAND, MUFFLER
5JJ-14715-00-00
Unavailable
36
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
37
DAMPER, LOCATING 1
4FM-24181-00-00
Unavailable
38
CABLE PULLEY ASSY
5PW-1130E-00-00
Unavailable
39
CLAMP
90462-10013-00
Unavailable
40
BOLT,SOCKET HEAD
91314-06010-00
Unavailable
41
BOLT, FLANGE
95817-08040-00
Unavailable
42
WASHER, PLATE (1A0)
90201-08612-00
Unavailable
