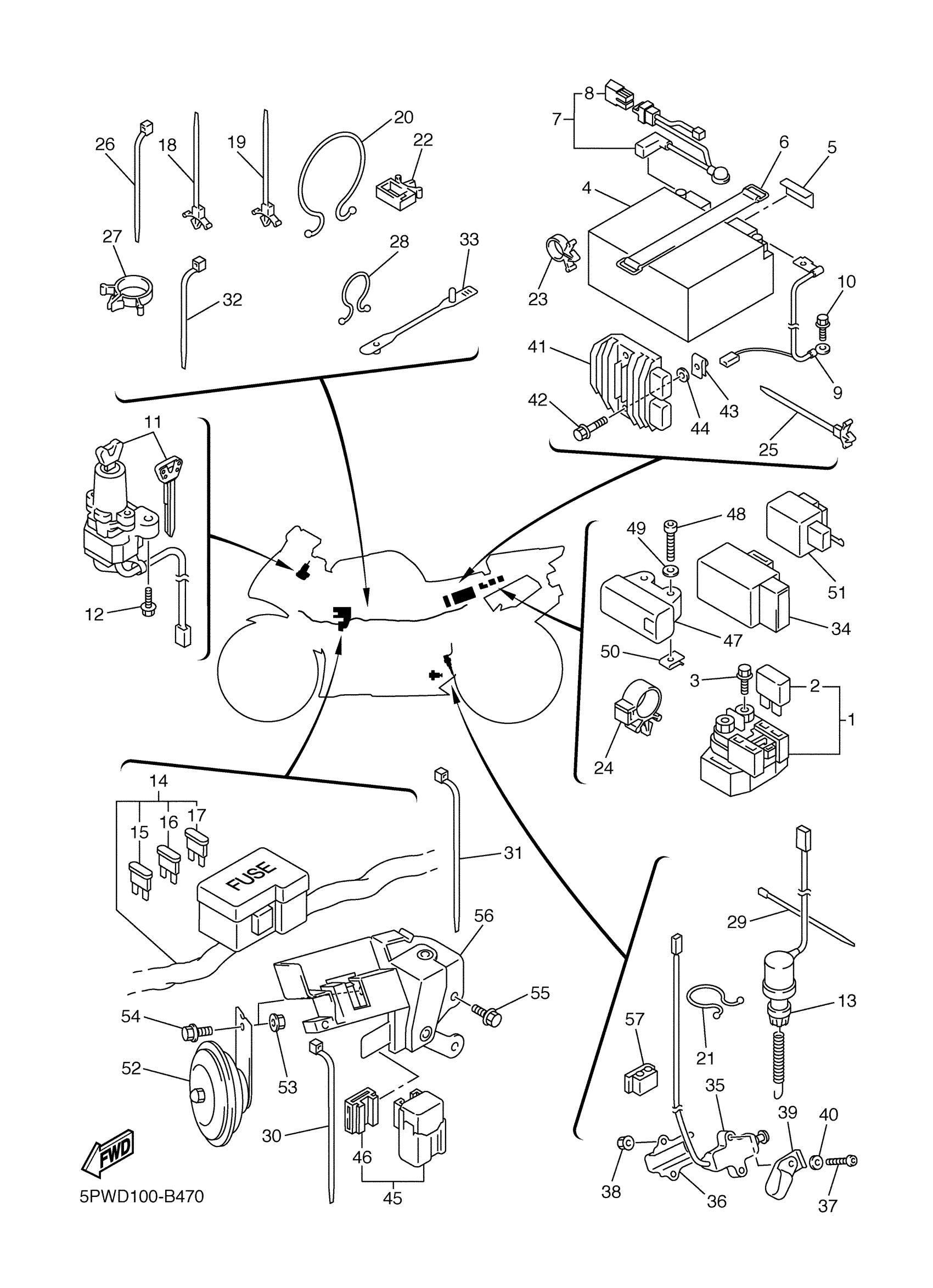

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

$123.99

2

FUSE (12V 15A)

36Y-82151-00-00

$4.94

3

BOLT, SMALL FLANGE

95027-06008-00

$7.99

4

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

Unavailable

5

DAMPER

2AL-84553-00-00

$11.99

6

BAND, BATTERY

5JJ-82131-00-00

$13.49

7

WIRE, PLUS LEAD

5PW-82115-00-00

Unavailable

8

FUSE (50A)

5JW-82151-10-00

$16.49

9

WIRE, MINUS LEAD

5PW-82116-00-00

Unavailable

10

BOLT, FLANGE

95817-06012-00

$1.43

11

BLANK KEY

4BH-82511-09-00

$30.99

11

MAIN SWITCH STEERING LOCK

5SL-82501-11-00

Unavailable

12

BOLT

90109-08196-00

$8.49

13

STOP SWITCH ASSY

5PW-82530-01-00

Unavailable

14

WIRE HARNESS ASSY

5PW-82590-10-00

Unavailable

15

FUSE (15A)

67F-82151-50-00

Unavailable

16

FUSE

5JJ-82151-20-00

Unavailable

17

FUSE (5A)

67F-82151-20-00

Unavailable

18

CLAMP(2TV)

90464-10112-00

Unavailable

19

CLAMP(2TV)

90464-10112-00

Unavailable

20

CLAMP

90464-37257-00

Unavailable

21

CLAMP (3Y2)

90464-16039-00

Unavailable

22

CLAMP

90464-07004-00

Unavailable

23

CLAMP(3SK)

90464-13133-00

Unavailable

24

CLAMP

90464-16006-00

Unavailable

25

CLAMP(2TV)

90464-10112-00

Unavailable

26

CLAMP(4FM)

90464-15195-00

Unavailable

27

CLAMP(3XV)

90464-15157-00

Unavailable

28

CLAMP (3Y2)

90464-16039-00

Unavailable

29

CLAMP

5Y9-12491-00-00

Unavailable

30

CLAMP(4FM)

90464-15195-00

Unavailable

31

CLAMP(4FM)

90464-15195-00

Unavailable

32

CLAMP

90464-13077-00

Unavailable

33

CLAMP

90464-17001-00

Unavailable

34

RELAY ASSY (5PW-00)

5PW-81950-00-00

Unavailable

35

SWITCH, SIDE STAND

5PX-82566-51-00

Unavailable

36

PLATE

5JJ-82388-00-00

Unavailable

37

BOLT, BUTTON HEAD

92017-05030-00

Unavailable

38

NUT, S/L FLANGE

95607-05200-00

Unavailable

39

CLAMP

90461-10002-00

Unavailable

40

WASHER, PLATE(39X)

90201-057H5-00

Unavailable

41

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

Unavailable

42

BOLT, FLANGE

95817-06030-00

Unavailable

43

NUT, SPRING(4ES)

90183-06069-00

Unavailable

44

WASHER, PLATE

90202-06001-00

Unavailable

45

RELAY ASSY (5JJ-20)

5JJ-81950-20-00

Unavailable

46

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

47

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

48

BOLT,SOCKET

91317-04025-00

Unavailable

49

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

50

NUT, SPRING(47R)

90183-04039-00

Unavailable

51

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

52

HORN

2KG-83371-00-00

Unavailable

53

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

54

BOLT, FLANGE

95817-06012-00

$1.43

55

BOLT, FLANGE

95817-06012-00

$1.43

56

BRACKET, HORN

5PW-2134K-00-00

Unavailable

57

CLAMP

90464-06004-00

Unavailable
