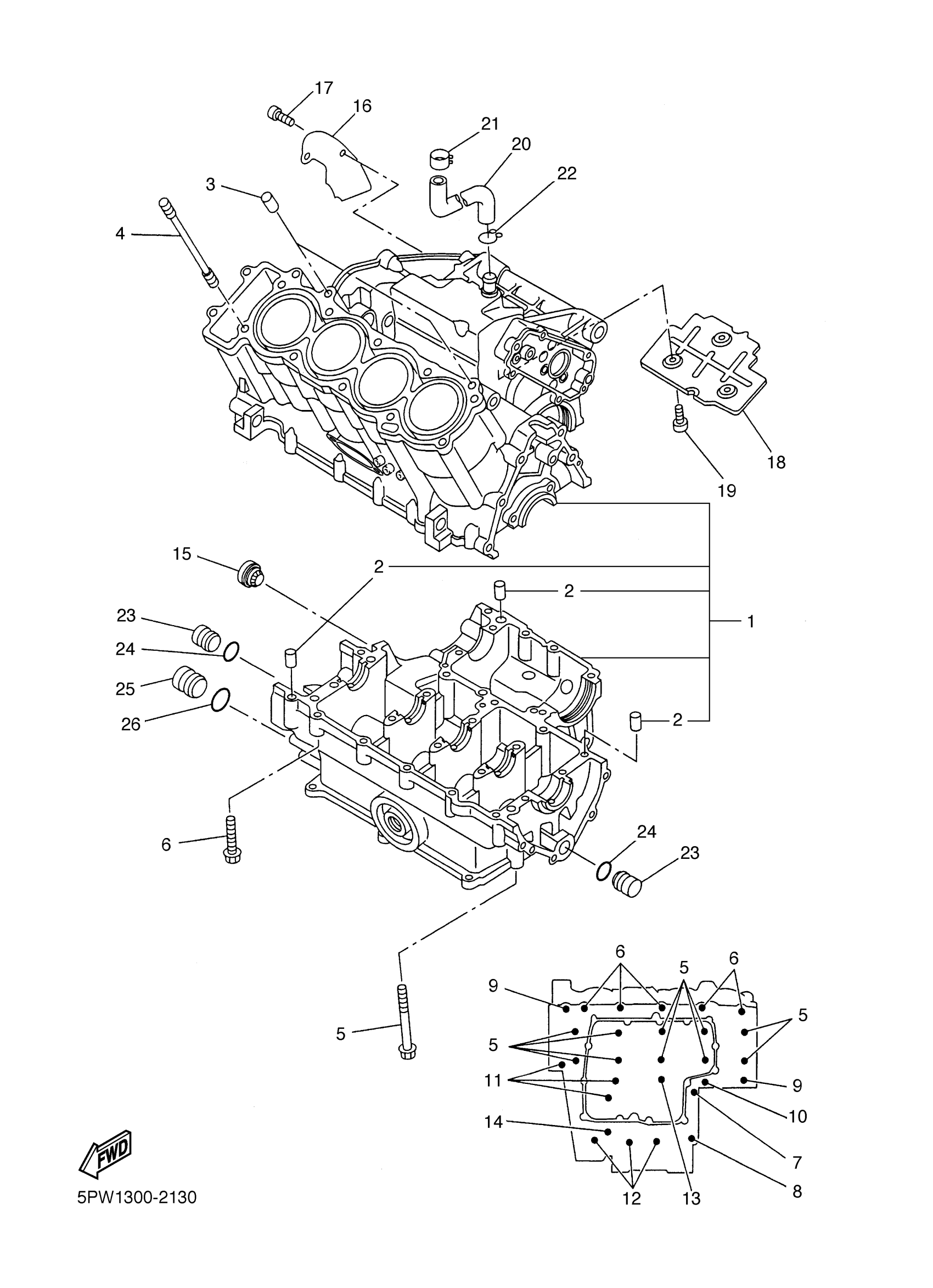

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5PW-15100-00-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, STUD

90116-10619-00

$11.49

5

BOLT, WITH WASHER

90119-09002-00

Unavailable

6

BOLT, FLANGE

95817-06055-00

$7.49

7

BOLT, FLANGE

95817-08050-00

$2.44

8

BOLT, FLANGE

95817-08050-00

$2.44

9

BOLT

90109-065G3-00

$9.49

10

BOLT, FLANGE

95817-06060-00

$4.14

11

BOLT, FLANGE

95817-06070-00

$4.72

12

BOLT, FLANGE

95817-06045-00

$8.49

13

BOLT, FLANGE

95814-06050-00

Unavailable

14

BOLT, FLANGE

95817-06065-00

Unavailable

15

GAUGE, LEVEL

5PW-15361-00-00

$39.99

16

PLATE, BREATHER

4XV-11165-00-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

PLATE, BREATHER 2

4XV-11145-00-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

HOSE

90445-16416-00

Unavailable

21

CLIP

90468-08104-00

Unavailable

22

CLIP (371)

90467-14015-00

Unavailable

23

PLUG

90338-16262-00

Unavailable

24

O-RING(3LD)

93210-12790-00

Unavailable

25

PLUG

90338-20263-00

Unavailable

26

O-RING (1J7)

93210-16314-00

Unavailable
