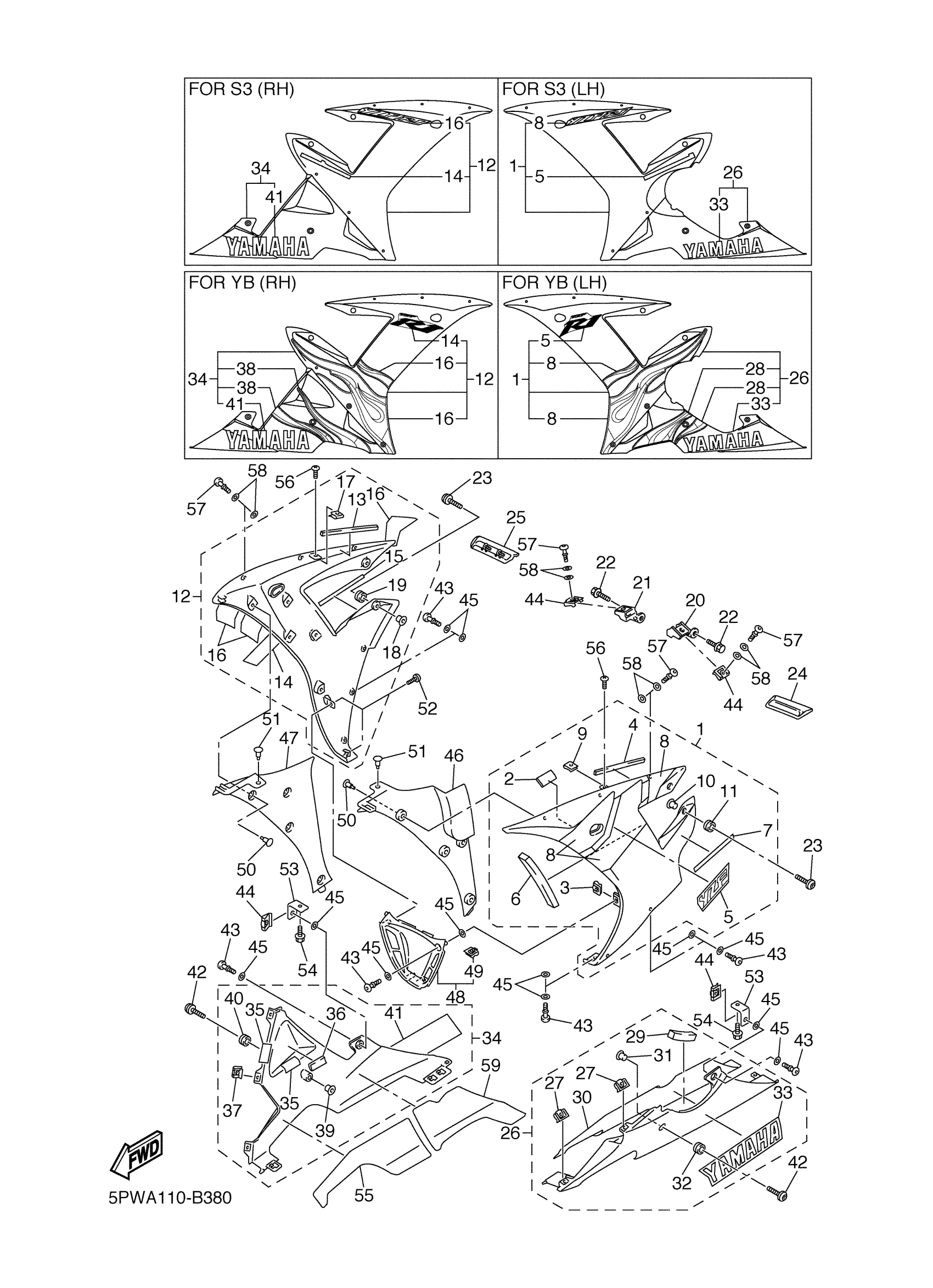

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (SILVER 3)
5PW-Y283U-70-P2
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
5PW-Y283U-80-P1
Unavailable
1
PANEL ASSEMBLY 1 (YAMAHA BLACK)
5PW-Y283U-90-0X
Unavailable
4
. SEAL
5PW-28307-00-00
Unavailable
5
EMBLEM
5PW-28328-21-00
Unavailable
5
. EMBLEM 1 (YAMAHA BLACK)
5PW-2834C-A0-00
Unavailable
5
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5PW-2839H-00-00
Unavailable
6
. DAMPER
5PW-28371-00-00
Unavailable
7
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
5PW-28328-50-00
Unavailable
8
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
5PW-28301-00-00
Unavailable
8
. EMBLEM (SILVER 3)
5PW-2836C-01-00
Unavailable
8
GRAPHIC SET
5PW-283B1-A0-00
Unavailable
9
NUT, SPRING(3YX)
90183-05074-00
Unavailable
10
COLLAR
90387-06159-00
Unavailable
11
GROMMET(4FM)
90480-12596-00
Unavailable
12
PANEL ASSEMBLY 2 (SILVER 3)
5PW-Y283V-70-P2
Unavailable
12
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
5PW-Y283V-80-P1
Unavailable
12
PANEL ASSEMBLY 2 (YAMAHA BLACK)
5PW-Y283V-90-0X
Unavailable
13
. SEAL
5PW-28307-00-00
Unavailable
14
EMBLEM
5PW-28338-21-00
Unavailable
14
. EMBLEM 2 (YAMAHA BLACK)
5PW-2835C-A0-00
Unavailable
14
. EMBLEM 1 (DEEP PURPLISH BLUE METALLIC C)
5PW-2839H-00-00
Unavailable
15
EMBLEM
5PW-28338-50-00
Unavailable
16
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5PW-28303-00-00
Unavailable
16
. EMBLEM (SILVER 3)
5PW-2836C-01-00
Unavailable
16
. GRAPHIC SET (YAMAHA BLACK)
5PW-283B2-A0-00
Unavailable
17
NUT, SPRING(3YX)
90183-05074-00
Unavailable
18
COLLAR
90387-06159-00
Unavailable
19
GROMMET(4FM)
90480-12596-00
Unavailable
20
BRACKET 1
5PW-2836A-00-00
Unavailable
21
BRACKET 2
5PW-2836E-00-00
Unavailable
22
BOLT, WITH WASHER
90119-06226-00
Unavailable
23
SCREW(4DN)
90149-06302-00
Unavailable
24
PROTECTOR 1
5PW-2832M-00-00
Unavailable
25
PROTECTOR 2
5PW-2832N-00-00
Unavailable
26
COVER, LOWER (SILVER 3)
5PW-Y2808-10-P1
Unavailable
26
COVER ASSY, UNDER (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-Y2808-20-P2
Unavailable
26
COVER ASSY, UNDER (YAMAHA BLACK)
5PW-Y2808-30-0X
Unavailable
28
. GRAPHIC SET, LOWER COVER 1 (YAMAHA BLACK)
5PW-28301-A0-00
Unavailable
29
. DAMPER 1
5PW-2834E-00-00
Unavailable
30
. SEAT 3
5PW-2848L-00-00
Unavailable
31
COLLAR
90387-06159-00
Unavailable
32
GROMMET(4FM)
90480-12596-00
Unavailable
33
EMBLEM, YAMAHA
99241-00320-00
Unavailable
33
EMBLEM, YAMAHA
99244-00320-00
Unavailable
33
. EMBLEM, YAMAHA (BLACK 2)
99247-00320-00
Unavailable
34
COVER, UNDER
5PW-Y2809-11-P1
Unavailable
34
COVER, UNDER
5PW-Y2809-21-P2
Unavailable
34
COVER ASSY 2, UNDER
5PW-Y2809-31-0X
Unavailable
35
SEAL,2
1JK-21735-00-00
Unavailable
38
GRAPHIC SET, LOWER COVER 2
5PW-28303-A0-00
Unavailable
39
COLLAR
90387-06159-00
Unavailable
40
GROMMET(4FM)
90480-12596-00
Unavailable
41
EMBLEM, YAMAHA
99241-00320-00
Unavailable
41
EMBLEM, YAMAHA
99244-00320-00
Unavailable
41
. EMBLEM, YAMAHA (BLACK 2)
99247-00320-00
Unavailable
42
SCREW(4DN)
90149-06302-00
Unavailable
43
HEAD
5PW-28386-00-00
Unavailable
45
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
46
PANEL, INNER 1
5PW-2836K-00-00
Unavailable
47
PANEL, INNER 2
5PW-2836L-00-00
Unavailable
48
PANEL, INNER 3
5PW-Y283S-00-00
Unavailable
50
RIVET
90269-06081-00
Unavailable
51
RIVET(4PH)
90269-07077-00
Unavailable
52
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
53
BRACKET 3
5PW-2836F-00-00
Unavailable
54
BOLT, FLANGE
95817-06012-00
Unavailable
55
SEAT 4
5PW-2848M-00-00
Unavailable
56
SCREW, BINDING (10V)
90154-05013-00
Unavailable
57
HEAD
5PW-28386-00-00
Unavailable
58
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
59
SEAT 5
5PW-2848N-00-00
Unavailable
