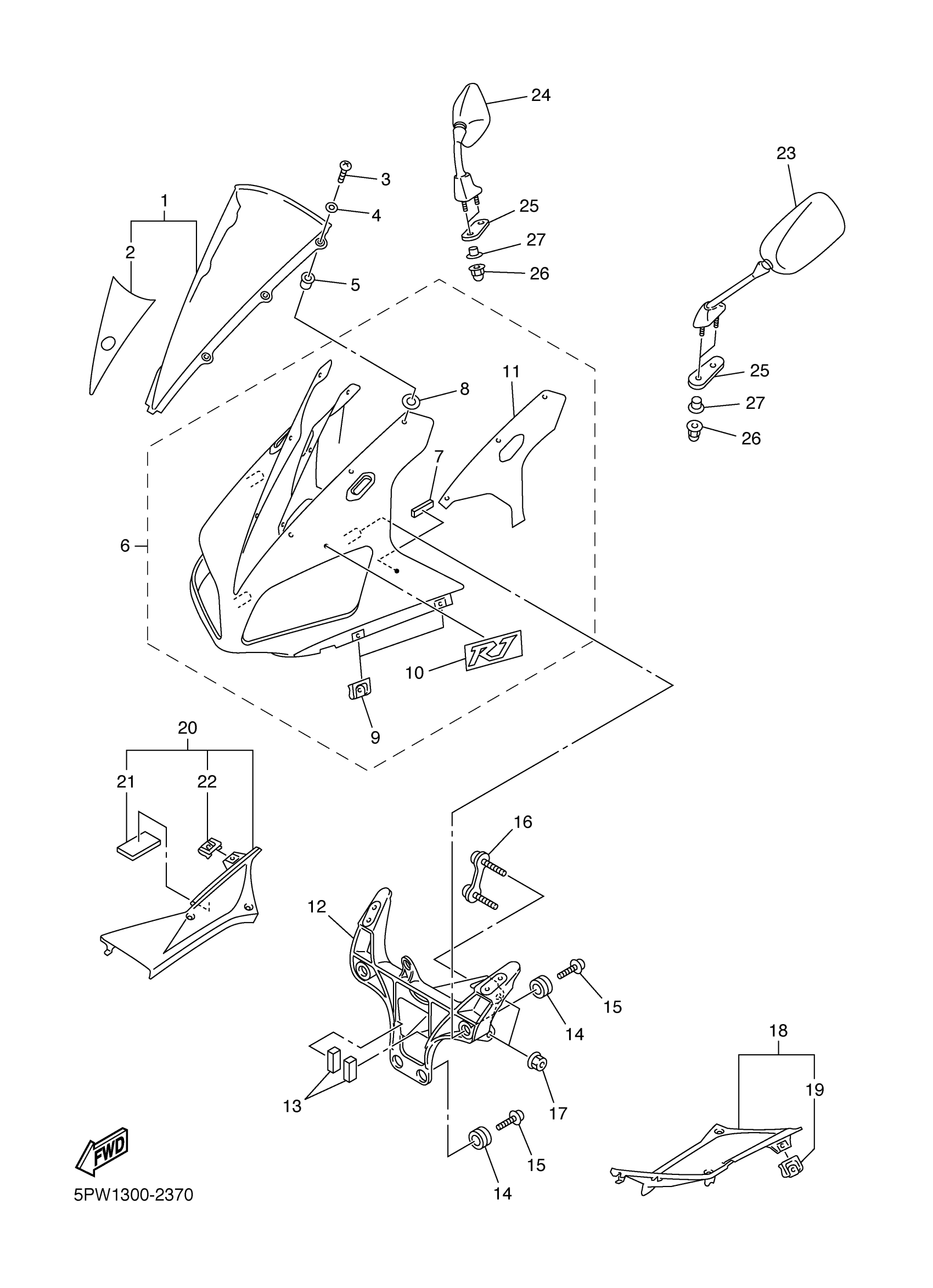

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 COWLING 1 Diagram
#
Description
Price
1
SCREEN SUB ASSY
5PW-W2881-10-00
Unavailable
1
SCREEN SUB ASSY
5PW-W2881-40-00
Unavailable
2
. GRAPHIC 18
5PW-2832P-00-00
Unavailable
4
WASHER, PLATE (5F9)
90202-05123-00
Unavailable
6
BODY, FRONT UPPER 1 (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-Y283G-10-P1
Unavailable
6
BODY, FRONT UPPER 1 (SILVER 3)
5PW-Y283G-20-P2
Unavailable
6
BODY, FRONT UPPER 1
5PW-Y283G-30-33
Unavailable
10
EMBLEM
5PW-28315-11-00
Unavailable
10
. EMBLEM (YAMAHA BLACK)
5PW-28315-30-00
Unavailable
11
. GRAPHIC SET
5PW-283A0-00-00
Unavailable
12
STAY 1
5PW-28356-00-00
Unavailable
13
DAMPER
5DM-28371-00-00
Unavailable
14
DAMPER
4XV-83513-00-00
Unavailable
15
SCREW, TAPPING
90164-05001-00
Unavailable
16
PLATE
4XV-28336-00-00
Unavailable
17
NUT, SELF-LOCKING
90185-08169-00
Unavailable
18
PANEL, CONSOLE 1
5PW-Y283L-00-P0
Unavailable
20
PANEL, CONSOLE 2
5PW-Y283M-00-P0
Unavailable
21
DAMPER
1TX-28371-00-00
Unavailable
23
REAR VIEW MIRROR ASSY(LEFT)
5PW-26280-00-00
Unavailable
24
REAR VIEW MIRROR ASSY (RIGHT)
5PW-26290-00-00
Unavailable
25
PLATE, MIRROR FITTING 1
4SV-26298-00-00
Unavailable
26
NUT, CROWN(1FN)
90176-06055-00
Unavailable
27
COLLAR (838-84757-00)
90387-06024-00
Unavailable
