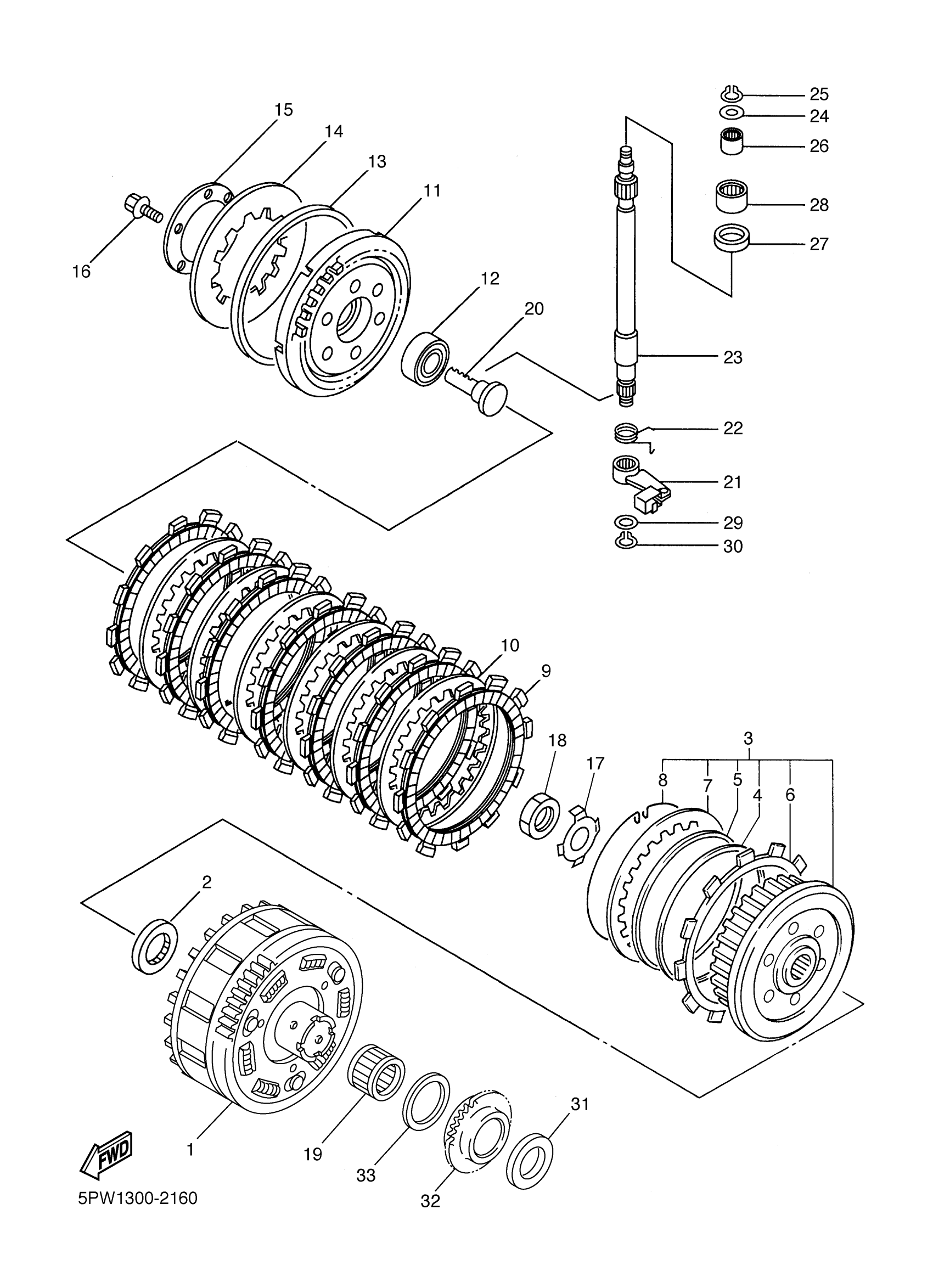

Yamaha YZFR1RC-F (YZFR1 CA) 5PWE 2003 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

5PW-16150-00-00

Unavailable

2

PLATE, THRUST 1

26H-16154-00-00

Unavailable

3

CLUTCH BOSS ASSY

4XV-16370-00-00

Unavailable

4

PLATE, SEAT

4XV-16384-00-00

$13.49

5

SPRING, CLUTCH BOSS

36Y-16383-00-00

$68.99

6

PLATE, FRICTION 2

4XV-16331-00-00

$24.99

7

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

8

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

$27.99

9

PLATE, FRICTION (447)

341-16321-13-00

$23.99

10

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

11

PLATE, PRESSURE 1

4XV-16351-00-00

Unavailable

12

BEARING(2JN)

93306-00315-00

$33.99

13

HOUSING, SPRING

36Y-16335-00-00

$36.99

14

SPRING, CLUTCH 2

36Y-16334-00-00

$120.99

15

PLATE, PRESSURE 2

1TX-16352-00-00

$37.99

16

BOLT, FLANGE

95817-06025-00

Unavailable

17

WASHER, LOCK

90215-23001-00

Unavailable

18

NUT

90179-20005-00

Unavailable

19

BEARING

93310-228S5-00

Unavailable

20

ROD, PUSH 1

4XV-16356-01-00

Unavailable

21

PUSH LEVER ASSY

4XV-16340-10-00

Unavailable

22

SPRING, TORSION

90508-164B2-00

Unavailable

23

AXLE, PUSH LEVER

4XV-16382-00-00

Unavailable

24

WASHER(6TA)

92907-08600-00

Unavailable

25

CIRCLIP

99080-07600-00

Unavailable

26

BEARING

93317-11096-00

Unavailable

27

OIL SEAL (3X3)

93102-15212-00

Unavailable

28

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

29

WASHER, PLATE (2W5)

90201-10614-00

Unavailable

30

CIRCLIP(10W)

99009-10400-00

Unavailable

31

PLATE, THRUST 1

4XV-16154-00-00

Unavailable

32

SPROCKET, DRIVE

5PW-13354-01-00

Unavailable

33

WASHER, PLATE

90201-43008-00

Unavailable
