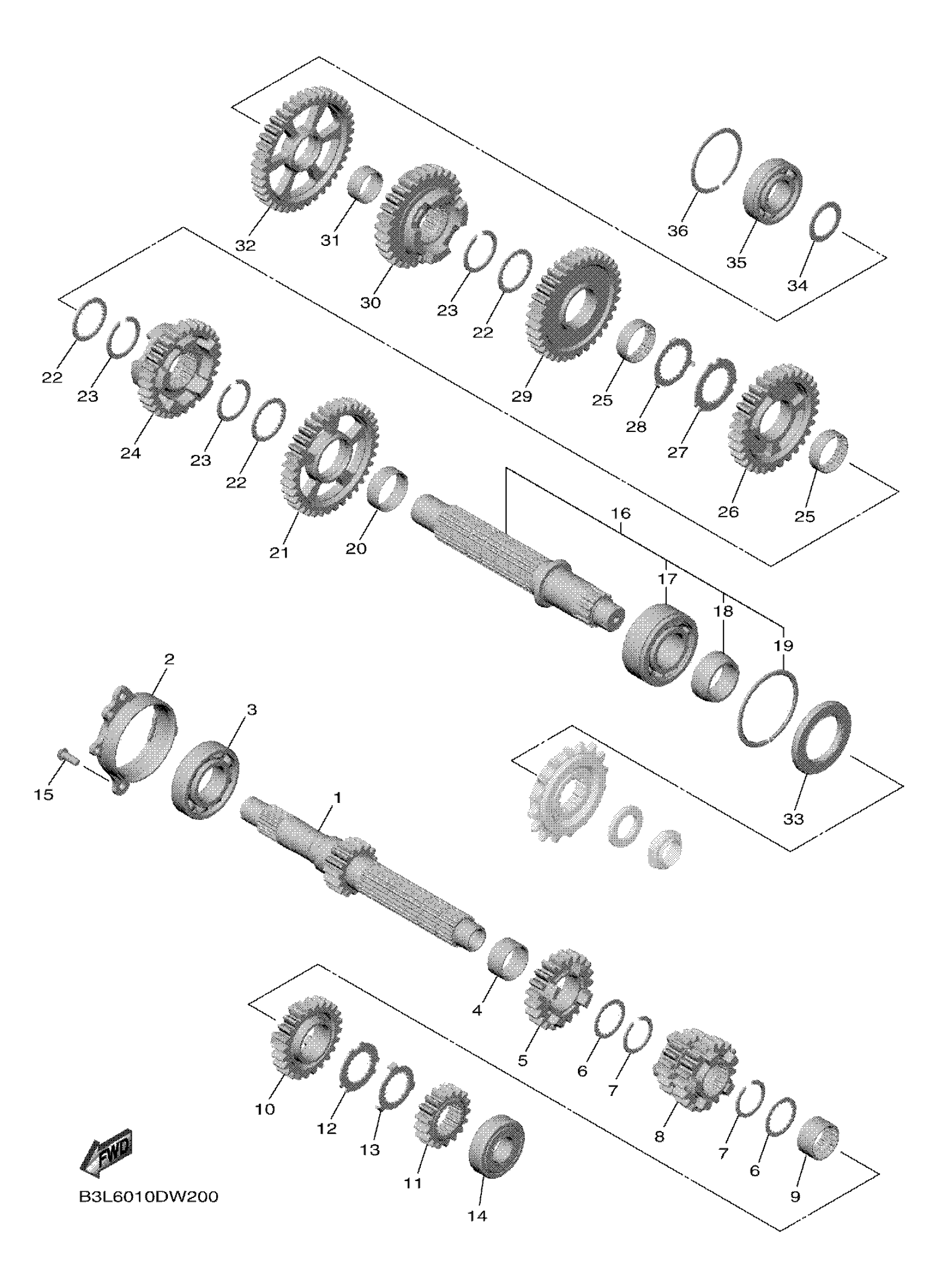

Yamaha YZFR1R1L (YZFR1) BMP9 2024 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2CR-17411-00-00

Unavailable

2

HOUSING, BEARING 1

2CR-15163-00-00

Unavailable

3

BEARING

93306-20652-00

Unavailable

4

COLLAR

90387-28003-00

$29.99

5

GEAR, 5TH PINION

2CR-17151-00-00

$116.99

6

WASHER

90209-25011-00

$8.49

7

CIRCLIP

93440-28184-00

$4.67

8

GEAR, 3RD PINION

2CR-17131-01-00

$370.99

9

COLLAR

90387-25023-00

$41.99

10

GEAR, 6TH PINION

2CR-17161-00-00

$124.99

11

GEAR, 2ND PINION (17T)

B3L-17121-00-00

$162.99

12

WASHER, CLAW

90214-25004-00

$9.49

13

WASHER, CLAW

90214-25003-00

$9.49

14

BEARING

93306-27214-00

Unavailable

15

SCREW

90149-06081-00

$8.49

16

DRIVE AXLE ASSY

2CR-17402-00-00

Unavailable

17

BEARING(36Y)

93305-20605-00

Unavailable

18

COLLAR

90387-30012-00

Unavailable

19

CIRCLIP (409)

93440-62032-00

Unavailable

20

COLLAR

90387-31003-00

Unavailable

21

GEAR, 2ND WHEEL

BW8-17221-00-00

Unavailable

22

WASHER

90209-28008-00

Unavailable

23

CIRCLIP

93440-31187-00

Unavailable

24

GEAR, 6TH WHEEL

2CR-17261-00-00

Unavailable

25

COLLAR

90387-28004-00

Unavailable

26

GEAR, 4TH WHEEL

2CR-17241-01-00

Unavailable

27

WASHER, CLAW

90214-29002-00

Unavailable

28

WASHER, CLAW

90214-28002-00

Unavailable

29

GEAR, 3RD WHEEL

B67-17231-01-00

Unavailable

30

GEAR, 5TH WHEEL

2CR-17251-00-00

Unavailable

31

COLLAR

90387-25008-00

Unavailable

32

GEAR, 1ST WHEEL

B60-17211-00-00

Unavailable

33

OIL SEAL(36Y)

93102-40330-00

Unavailable

34

WASHER, PLATE(36Y)

90201-257H0-00

Unavailable

35

BEARING

93306-205A2-00

Unavailable

36

CIRCLIP (168)

93440-52009-00

Unavailable
