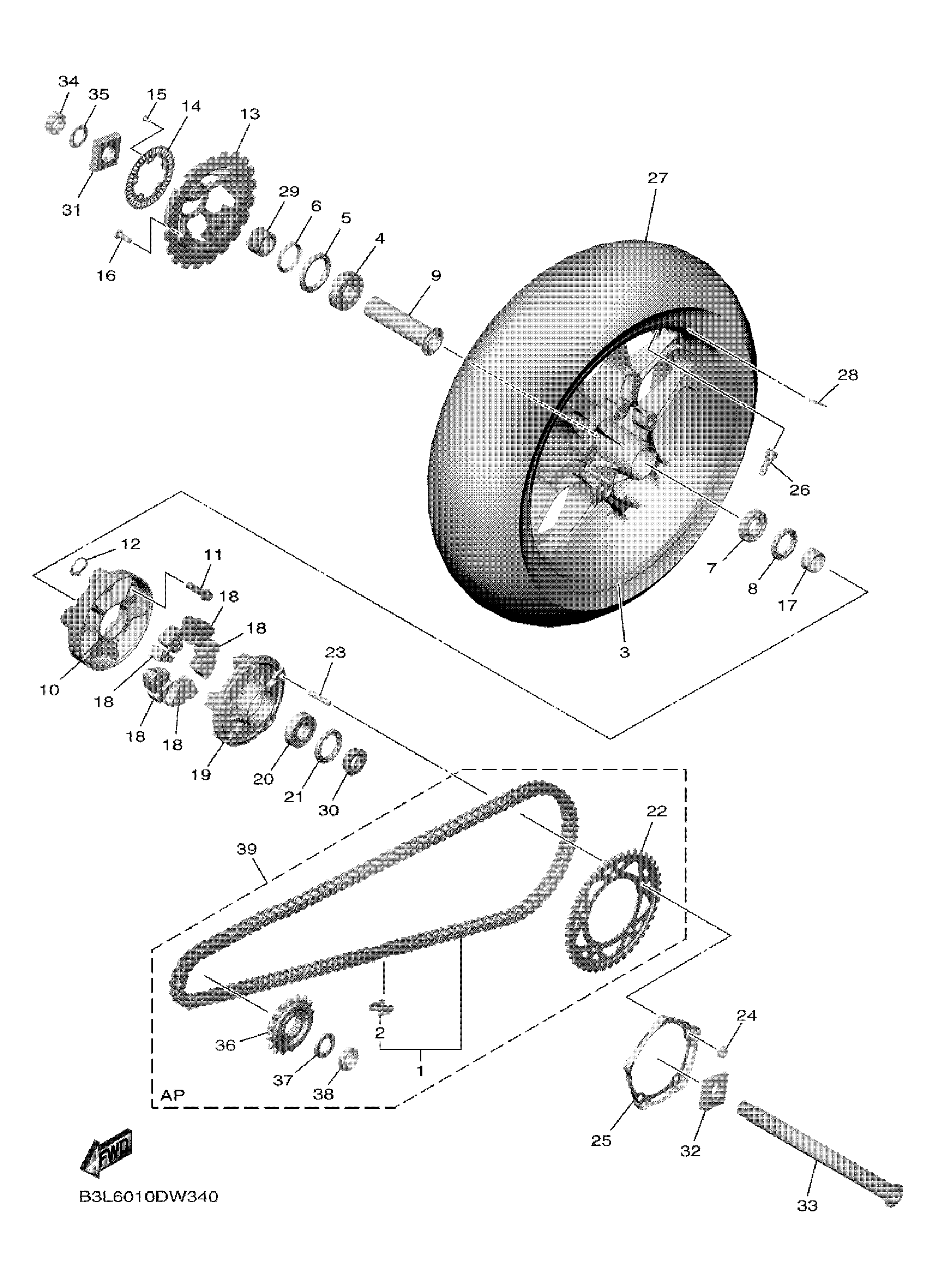

Yamaha YZFR1R1L (YZFR1) BMP9 2024 REAR WHEEL Diagram

#

Description
Price

1

CHAIN (DID525HV3 114LL)

94A40-12114-00

Unavailable

2

JOINT, CHAIN (DID525HV3 ZJ)

94682-5202R-00

$16.99

3

CAST WHEEL, REAR

B3L-25338-00-98

Unavailable

4

BEARING

93306-27802-00

$71.99

5

NUT, ADJUSTING

2CR-2538E-00-00

Unavailable

6

OIL SEAL

93106-40001-00

$12.49

7

BEARING

93306-07806-00

$63.99

8

OIL SEAL

93106-35042-00

$15.99

9

SPACER ASSY

2CR-253W0-00-00

Unavailable

10

HUB 2

2CR-2531F-00-00

$219.99

11

BOLT, FLANGE

90105-10450-00

$3.28

12

SEAL, HUB DUST

2CR-25319-00-00

$3.33

13

PLATE, DISK

B3L-2581A-00-00

$200.99

14

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

15

SCREW

90149-05030-00

$8.49

16

BOLT

90109-085G6-00

Unavailable

17

COLLAR

90387-28022-00

Unavailable

18

DAMPER

2CR-25364-00-00

Unavailable

19

CLUTCH, HUB

2CR-25366-00-00

Unavailable

20

BEARING(3JN)

93306-20531-00

Unavailable

21

OIL SEAL

93106-40013-00

Unavailable

22

SPROCKET, DRIVEN (

2CR-25441-00-00

Unavailable

23

BOLT, STUD

90116-10048-00

Unavailable

24

NUT, SELF-LOCKING

90185-10011-00

Unavailable

25

BRACKET 1

B3L-2537W-00-00

Unavailable

26

VALVE, RIM(2GH)

93900-00030-00

Unavailable

27

TIRE(190/55 ZR17 M/C 75W)

94119-17078-00

Unavailable

28

BALANCER, WHEEL

2CR-25398-00-00

Unavailable

29

COLLAR

90387-28023-00

Unavailable

30

COLLAR

90387-28024-00

Unavailable

31

PULLER, CHAIN 1

5VY-25388-00-00

Unavailable

32

PULLER, CHAIN 2

5VY-25389-01-00

Unavailable

33

AXLE, WHEEL

2CR-25381-00-00

Unavailable

34

NUT, SELF-LOCKING

90185-24007-00

Unavailable

35

WASHER, PLATE

90201-25020-00

Unavailable

36

SPROCKET, DRIVE

2CR-17460-00-00

Unavailable

37

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

38

NUT

90179-22018-00

Unavailable

39

CHAIN & SPROCKET K

B3L-W001A-00-00

Unavailable
