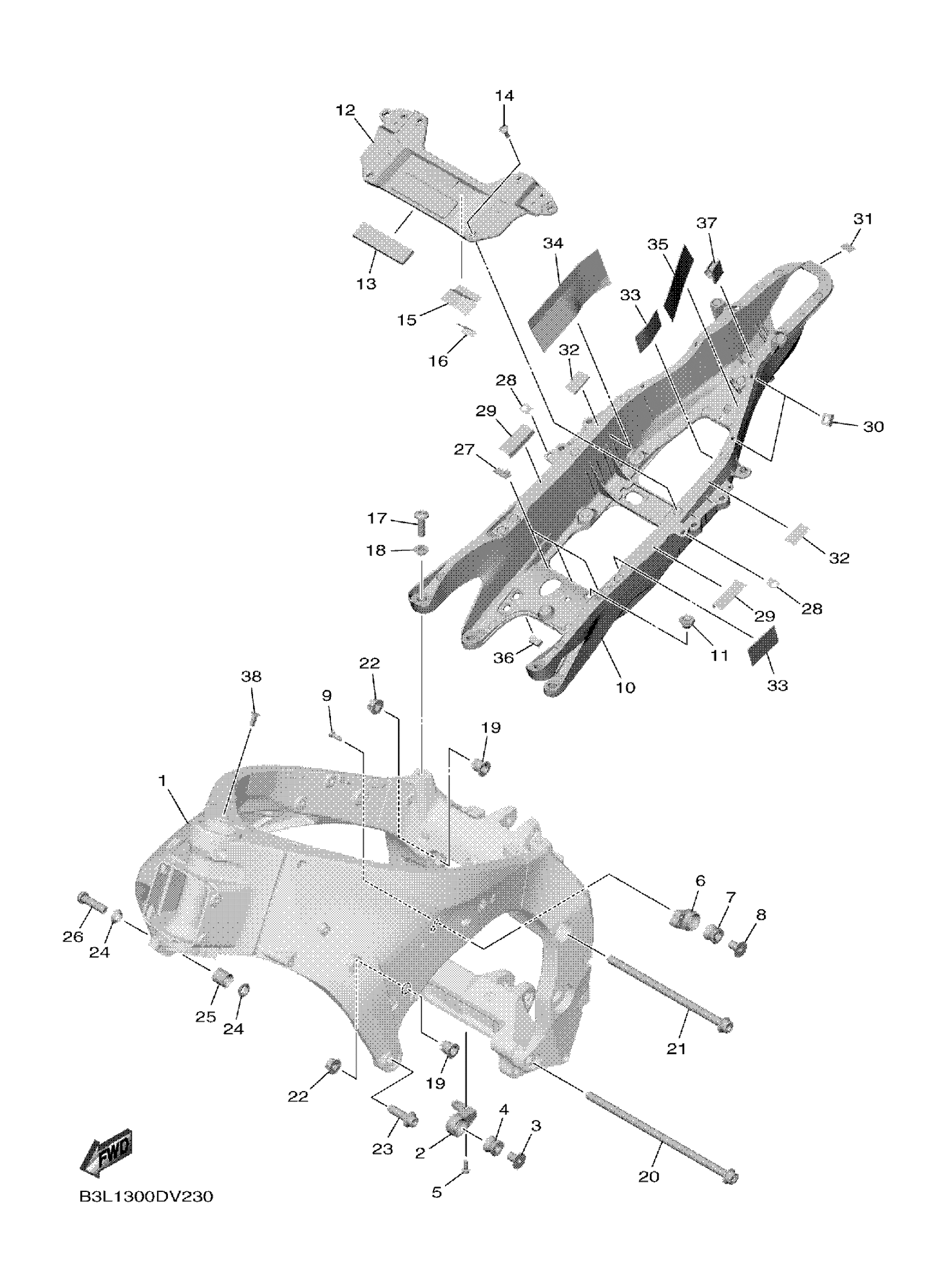

Yamaha YZFR1R1L (YZFR1) BMP9 2024 FRAME Diagram
#
Description
Price
1
FRAME COMP.
2CR-21110-00-00
Unavailable
5
BOLT, HEXAGON SOCKET HEAD
90110-06248-00
Unavailable
11
CAP, DAMPER
2CR-85916-00-00
Unavailable
12
REINF., FRAME RR.
2CR-21214-00-00
Unavailable
16
SEAL 6
2CR-22878-00-00
Unavailable
17
SCREW
90149-10003-00
Unavailable
18
COLLAR
2CR-21116-00-00
Unavailable
19
BOLT, ENGINE ADJUSTING
5YU-21495-00-00
Unavailable
20
BOLT, HEXAGON SOCK
90110-12010-00
Unavailable
21
BOLT, HEXAGON SOCK
90110-12008-00
Unavailable
22
Nut
90179-12004-00
Unavailable
23
BOLT, HEXAGON SOCK
90110-12007-00
Unavailable
24
BOSS, ENGINE MOUNT
14B-21414-00-00
Unavailable
25
BOSS, ENGINE MOUNT
14B-21424-00-00
Unavailable
26
BOLT,HEX. SOCKET B
90111-12003-00
Unavailable
27
DAMPER 1
7TG-2214F-00-00
Unavailable
28
SEAL 1
2CR-22873-00-00
Unavailable
29
SEAL 2
2CR-22874-00-00
Unavailable
30
SEAL 3
2CR-22875-01-00
Unavailable
31
SEAL
5SL-21268-00-00
Unavailable
32
SEAL 4
2CR-22876-00-00
Unavailable
33
PATCH 5
5JW-2164K-00-00
Unavailable
34
DAMPER, LOCATING 2
5C7-21779-00-00
Unavailable
35
SEAL
5TH-21268-01-00
Unavailable
36
DAMPER 1
13S-28415-00-00
Unavailable
37
CLAMP
90464-13004-00
Unavailable
38
RIVET(81E)
90269-05055-00
Unavailable
