Description

Price

1

FRONT FENDER ASSY

14B-Y2151-30-P7

Unavailable

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

EMBLEM, YAMAHA

99244-00080-00

$15.99

5

BOLT

90111-06043-00

$4.46

6

BOLT

90111-06030-00

$4.41

7

NUT, FLANGE

95702-06500-00

$2.39

8

BOX, BATTERY 1

B3L-8212B-00-00

$29.99

9

BOLT, FLANGE

95817-06012-00

$1.43

10

PLUG 288833190000

90338-07043-00

$8.49

11

GROMMET (462)

90480-13018-00

$8.49

12

COLLAR(8Y7)

90387-073M2-00

$8.49

13

WASHER, PLATE

90201-06088-00

Unavailable

14

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

15

BOX, BATTERY 2

2CR-8212C-00-00

$24.99

16

DAMPER

13S-21649-00-00

Unavailable

17

GROMMET (462)

90480-13018-00

$8.49

18

COLLAR(8Y7)

90387-073M2-00

$8.49

19

WASHER, PLATE

90201-06088-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

21

PROTECTOR

B3L-21652-00-00

Unavailable

22

FENDER, REAR

2CR-21611-01-00

Unavailable

23

DAMPER, PLATE 1

3C5-2414H-00-00

Unavailable

24

DAMPER, PLATE

90520-20003-00

Unavailable

25

RIVET

90269-06008-00

Unavailable

26

RIVET

90269-05005-00

Unavailable

27

RIVET(4JH)

90269-07076-00

Unavailable

28

BRACKET, TAILLIGHT

2CR-2117E-01-00

Unavailable

29

GROMMET

90480-10003-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

31

TOOL KIT

2CR-28100-01-00

Unavailable

32

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

33

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

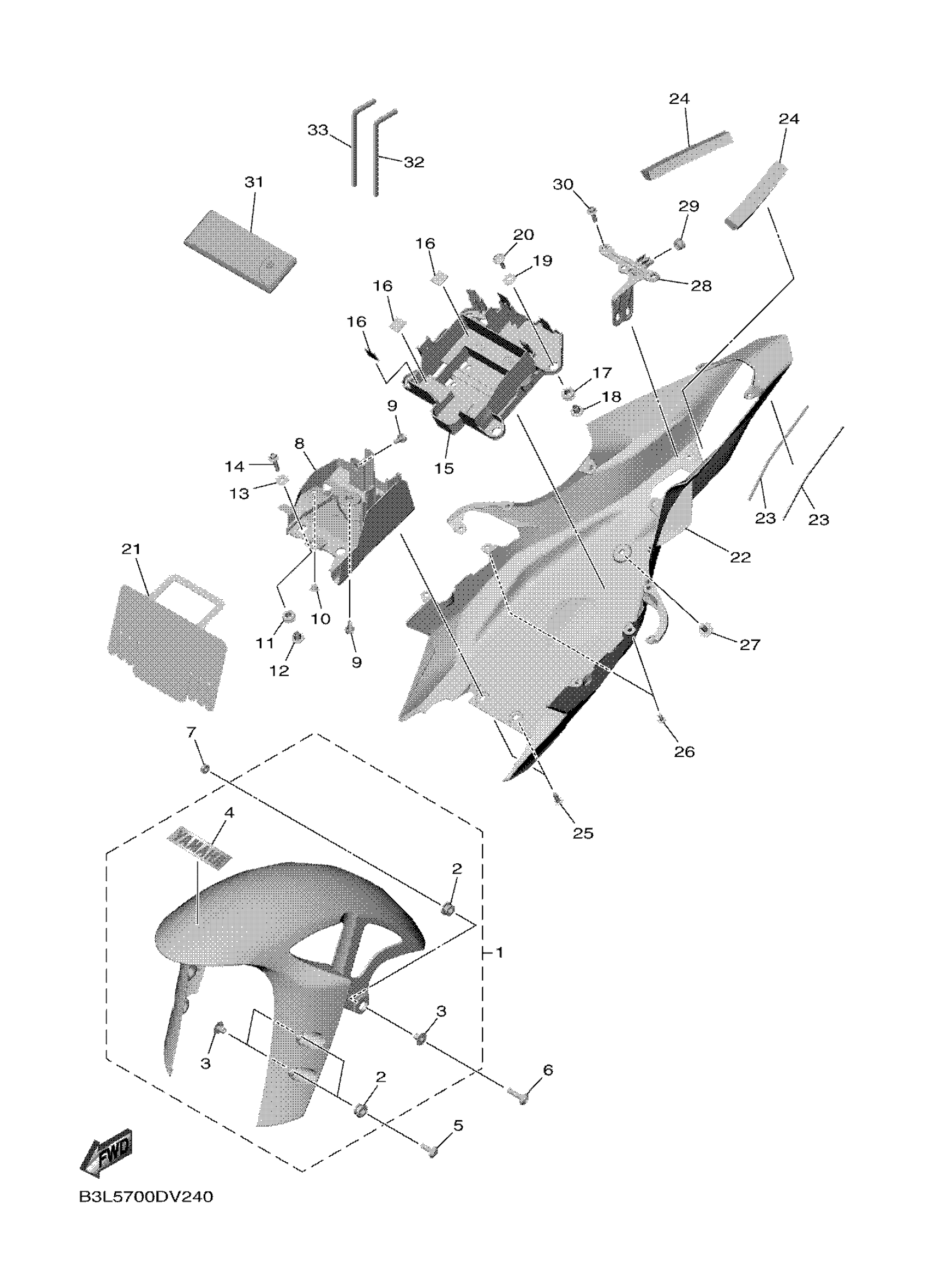

Yamaha YZFR1R1L (YZFR1) BMP9 2024 FENDER Diagram

FRONT FENDER ASSY

GROMMET(53Y)

COLLAR

EMBLEM, YAMAHA

BOLT

BOLT

NUT, FLANGE

BOX, BATTERY 1

BOLT, FLANGE

PLUG 288833190000

GROMMET (462)

COLLAR(8Y7)

WASHER, PLATE

BOLT, HEXAGON SOCKET HEAD

BOX, BATTERY 2

DAMPER

GROMMET (462)

COLLAR(8Y7)

WASHER, PLATE

BOLT, HEXAGON SOCKET HEAD

PROTECTOR

FENDER, REAR

DAMPER, PLATE 1

DAMPER, PLATE

RIVET

RIVET

RIVET(4JH)

BRACKET, TAILLIGHT

GROMMET

BOLT, HEXAGON SOCKET HEAD

TOOL KIT

WRENCH, HEXAGON 8

WRENCH, HEXAGON 8
