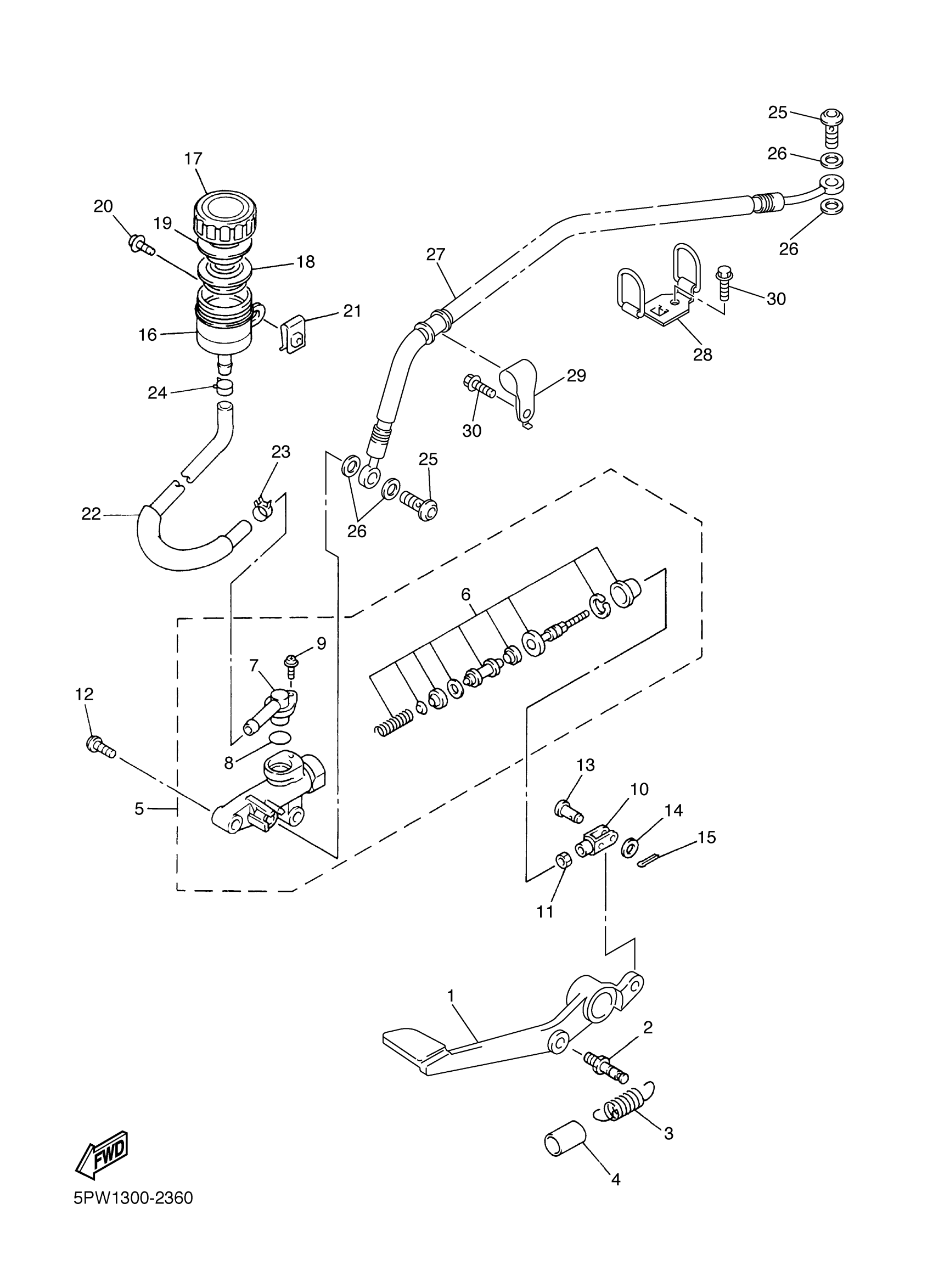

Yamaha YZFR1PC (YZFR1 CA) 5PW5 2002 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

5PW-27211-00-00

Unavailable

2

PIN, PEDAL CRANK

5JJ-27813-10-00

Unavailable

3

SPRING, TENSION(46X)

90506-20377-00

$8.49

4

HOSE(3GM)

90446-17346-00

$5.60

5

RR. MASTER CYLINDER ASSY.

3TU-2583V-01-00

Unavailable

6

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

7

. JOINT

3LN-2582A-00-00

Unavailable

8

O-RING

3LN-2585F-00-00

Unavailable

9

SCREW SET

3LN-2585H-00-00

$2.18

10

JOINT

4XV-27222-01-00

$43.99

11

. NUT

95380-08700-00

Unavailable

12

BOLT

90109-06013-00

$8.49

13

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

14

WASHER(6TA)

92907-06200-00

$8.49

15

PIN, COTTER

91490-16020-00

Unavailable

16

TANK, RESERVOIR

5JJ-25894-01-00

Unavailable

17

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

18

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

19

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

20

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

21

NUT, SPRING(4ES)

90183-06069-00

Unavailable

22

HOSE, RESERVOIR

5PW-25895-00-00

Unavailable

23

CLIP (5K4)

90467-14057-00

Unavailable

24

CLIP (7K7)

90467-11044-00

Unavailable

25

BOLT, UNION

90401-10172-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

HOSE, BRAKE

5PW-25874-01-00

Unavailable

28

HOLDER, BRAKE HOSE

5PW-25886-00-00

Unavailable

29

HOLDER, BRAKE HOSE

5EB-25886-01-00

Unavailable

30

. BOLT, FLANGE

95027-06020-00

Unavailable
