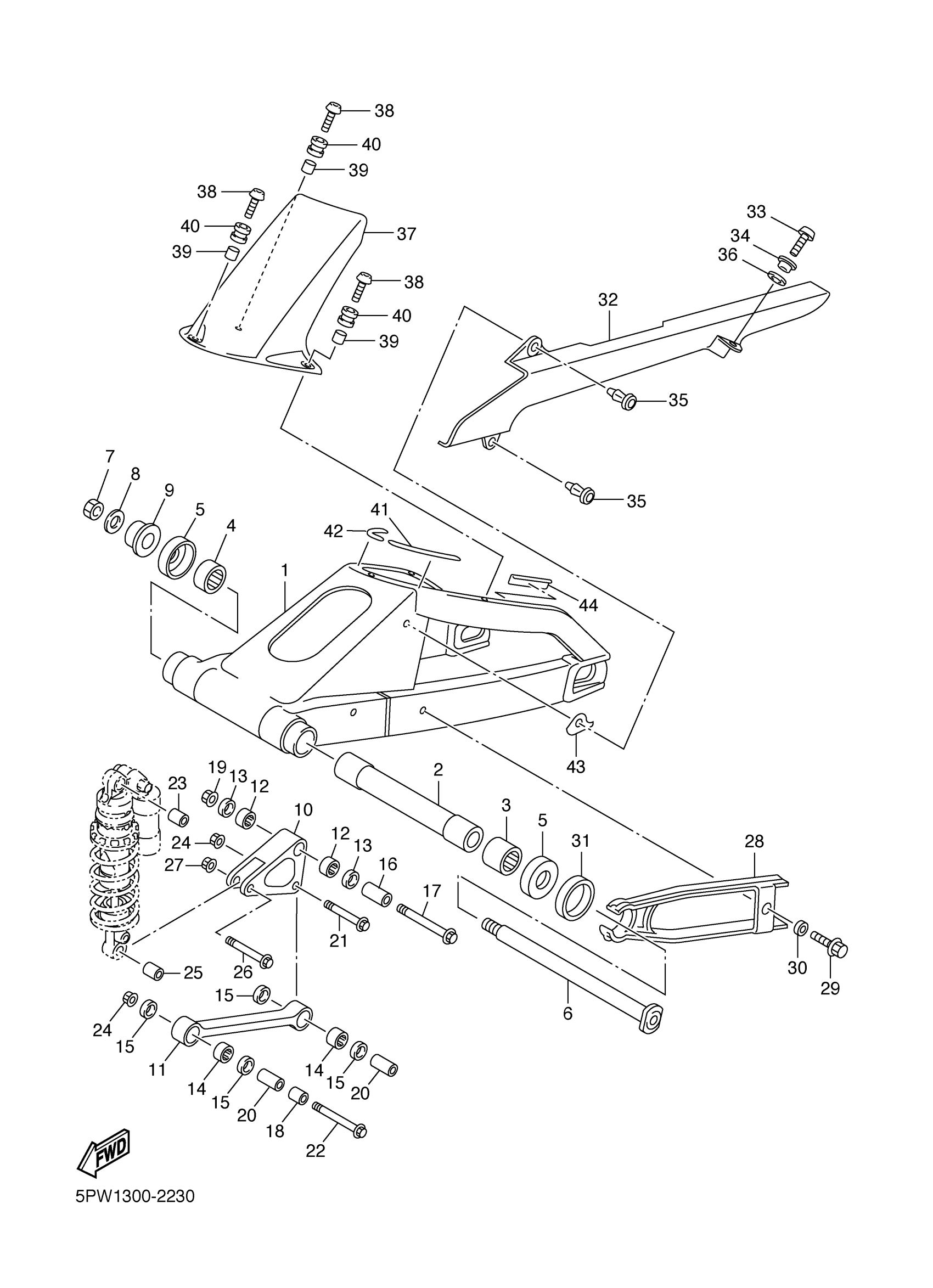

Yamaha YZFR1PC (YZFR1 CA) 5PW5 2002 REAR ARM Diagram
#
1
REAR ARM COMP.
5PW-22110-00-00
Unavailable
9
BOLT
5PW-22125-00-00
Unavailable
10
ARM, RELAY
4XV-2217A-00-00
Unavailable
11
ARM 1
5PW-2217M-00-00
Unavailable
16
COLLAR
90387-1012B-00
Unavailable
17
BOLT, FLANGE
90105-10021-00
Unavailable
18
COLLAR
90387-1013U-00
Unavailable
19
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
20
COLLAR
90387-1012A-00
Unavailable
21
BOLT, WASHER BASED
90105-10017-00
Unavailable
22
BOLT, WASHER BASED
90105-10018-00
Unavailable
23
COLLAR
90387-1013U-00
Unavailable
24
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
25
COLLAR
90387-1012A-00
Unavailable
26
BOLT, WASHER BASED
90105-10017-00
Unavailable
27
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
28
SEAL, GUARD
5PW-22151-00-00
Unavailable
29
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
30
COLLAR
90387-06106-00
Unavailable
31
DAMPER 1
5JJ-2214F-00-00
Unavailable
32
CASE, CHAIN
5PW-22311-00-00
Unavailable
33
SCREW(4DN)
90149-06302-00
Unavailable
34
COLLAR(4JX)
90387-0603J-00
Unavailable
35
RIVET
90269-08002-00
Unavailable
36
DAMPER
5PW-28372-00-00
Unavailable
37
REAR FENDER COMP.
5PW-21650-00-P0
Unavailable
37
REAR FENDER COMP.
5PW-21650-00-P1
Unavailable
37
REAR FENDER COMP.
5PW-21650-00-P2
Unavailable
38
SCREW(4DN)
90149-06302-00
Unavailable
39
COLLAR(4DN)
90387-0600V-00
Unavailable
40
GROMMET
90480-12005-00
Unavailable
41
SEAL 1
5PW-22873-00-00
Unavailable
42
SEAL 2
5PW-22874-00-00
Unavailable
43
SEAL 3
5PW-22875-00-00
Unavailable
44
SEAL 4
5PW-22876-00-00
Unavailable
