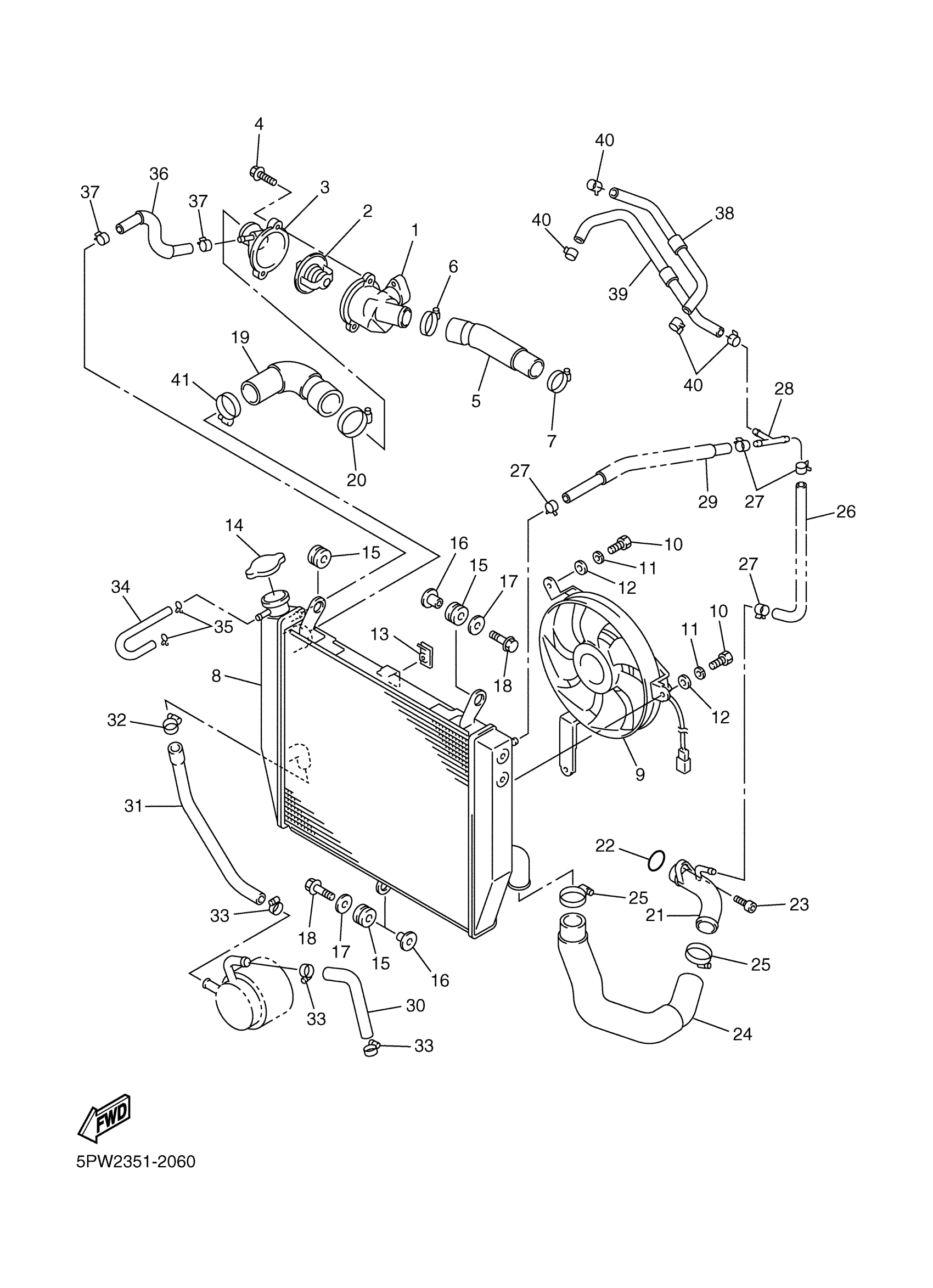

Yamaha YZFR1PC (YZFR1 CA) 5PW5 2002 RADIATOR HOSE Diagram

#

Description
Price

1

HOUSING, THERMOSTAT

5PW-12417-01-00

Unavailable

2

THERMOSTAT ASSY

4FM-12410-01-00

$41.99

3

COVER, THERMOSTAT

5PW-12413-00-00

Unavailable

4

BOLT, SMALL FLANGE

95027-06025-00

$4.16

5

HOSE 2

5PW-12577-00-00

Unavailable

6

HOSE CLAMP ASSY

90450-32015-00

$17.99

7

HOSE CLAMP ASSY

90450-28001-00

$14.99

8

RADIATOR ASSY

5PW-12461-00-00

Unavailable

9

BLOWER ASSY

5PW-12405-00-00

Unavailable

10

BOLT, HEXAGON

97017-06012-00

$3.76

11

WASHER, SPRING

92907-06100-00

$4.25

12

WASHER(6TA)

92907-06600-00

$2.72

13

PLATE

1AA-12535-00-00

$14.49

14

CAP, RADIATOR

1B3-12462-00-00

$67.99

15

GROMMET (29L)

90480-15363-00

$8.49

16

COLLAR 437216330000

90387-07391-00

Unavailable

17

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

18

BOLT, FLANGE

95817-06025-00

Unavailable

19

HOSE 4

5PW-12579-00-00

Unavailable

20

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

21

PIPE 4

5PW-12484-00-00

Unavailable

22

O-RING(1LT)

93210-23787-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

Unavailable

24

HOSE 7

5PW-12551-00-00

Unavailable

25

HOSE CLAMP ASSY

90450-35001-00

Unavailable

26

HOSE 1

5PW-1243A-00-00

Unavailable

27

CLIP(3BM)

90467-10135-00

Unavailable

28

WAY 3(1AF)

90413-07023-00

Unavailable

29

HOSE, 4

5PW-1244G-00-00

Unavailable

30

HOSE 5

5PW-12588-00-00

Unavailable

31

HOSE 6

5PW-12589-00-00

Unavailable

32

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

33

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

34

HOSE (L180)

90445-094K7-00

Unavailable

35

CLIP 101235600

90467-08003-00

Unavailable

36

HOSE 8

5PW-12552-00-00

Unavailable

37

CLIP(3BM)

90467-10135-00

Unavailable

38

HOSE 2

5PW-1243E-00-00

Unavailable

39

HOSE,3

5PW-1243F-00-00

Unavailable

40

CLIP(3BM)

90467-10135-00

Unavailable

41

HOSE CLAMP ASSY

90450-35001-00

Unavailable
