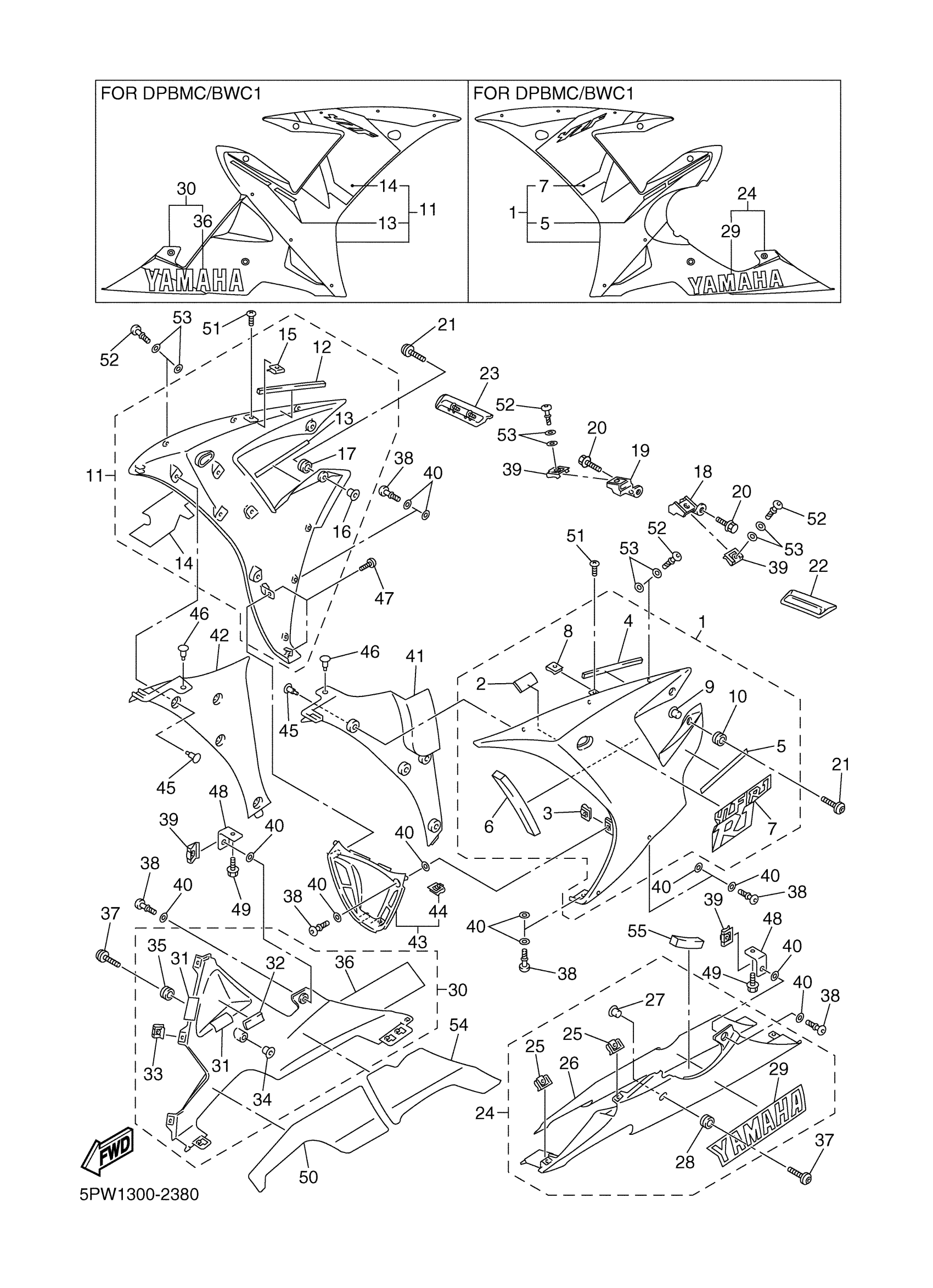

Yamaha YZFR1PC (YZFR1 CA) 5PW5 2002 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
5PW-Y283U-00-P0
Unavailable
1
PANEL ASSEMBLY 1 (MAT BLACK 2) (SILVER 3)
5PW-Y283U-20-P2
Unavailable
1
PANEL ASSEMBLY 1 (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-Y283U-30-P1
Unavailable
4
. SEAL
5PW-28307-00-00
Unavailable
5
. EMBLEM (VIVID RED COCKTAIL 1)
5PW-28328-00-00
Unavailable
5
EMBLEM
5PW-28328-21-00
Unavailable
5
. EMBLEM (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-28328-A0-00
Unavailable
6
. DAMPER
5PW-28371-00-00
Unavailable
7
. GRAPHIC 1 (VIVID RED COCKTAIL 1)
5PW-28391-00-00
Unavailable
7
. GRAPHIC 1 (SILVER 3)
5PW-28391-20-00
Unavailable
7
. GRAPHIC 3 (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-28393-00-00
Unavailable
8
NUT, SPRING(3YX)
90183-05074-00
Unavailable
10
GROMMET(4FM)
90480-12596-00
Unavailable
11
PANEL ASSEMBLY 2 (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
5PW-Y283V-00-P0
Unavailable
11
PANEL ASSEMBLY 2 (MAT BLACK 2) (SILVER 3)
5PW-Y283V-20-P2
Unavailable
11
PANEL ASSEMBLY 2 (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-Y283V-40-P1
Unavailable
12
. SEAL
5PW-28307-00-00
Unavailable
13
. EMBLEM (VIVID RED COCKTAIL 1)
5PW-28338-00-00
Unavailable
13
EMBLEM
5PW-28338-21-00
Unavailable
13
EMBLEM
5PW-28338-A0-00
Unavailable
14
. GRAPHIC 2 (VIVID RED COCKTAIL 1)
5PW-28392-00-00
Unavailable
14
. GRAPHIC 2 (SILVER 3)
5PW-28392-20-00
Unavailable
14
. GRAPHIC 4 (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-28394-00-00
Unavailable
15
NUT, SPRING(3YX)
90183-05074-00
Unavailable
17
GROMMET(4FM)
90480-12596-00
Unavailable
18
BRACKET 1
5PW-2836A-00-00
Unavailable
19
BRACKET 2
5PW-2836E-00-00
Unavailable
20
BOLT, WITH WASHER
90119-06226-00
Unavailable
21
SCREW(4DN)
90149-06302-00
Unavailable
22
PROTECTOR 1
5PW-2832M-00-00
Unavailable
23
PROTECTOR 2
5PW-2832N-00-00
Unavailable
24
COVER, LOWER
5PW-Y2808-00-P0
Unavailable
24
COVER, LOWER (SILVER 3)
5PW-Y2808-10-P1
Unavailable
24
COVER ASSY, UNDER (BLUISH WHITE COCKTAIL 1) (DEEP PURPLISH BLUE METALLIC C)
5PW-Y2808-20-P2
Unavailable
26
. SEAT 3
5PW-2848L-00-00
Unavailable
28
GROMMET(4FM)
90480-12596-00
Unavailable
29
EMBLEM, YAMAHA
99241-00320-00
Unavailable
29
EMBLEM, YAMAHA
99246-00320-00
Unavailable
29
. EMBLEM, YAMAHA (BLACK 2)
99247-00320-00
Unavailable
30
COVER, UNDER
5PW-Y2809-01-P0
Unavailable
30
COVER, UNDER
5PW-Y2809-11-P1
Unavailable
30
COVER, UNDER
5PW-Y2809-21-P2
Unavailable
31
SEAL,2
1JK-21735-00-00
Unavailable
35
GROMMET(4FM)
90480-12596-00
Unavailable
36
EMBLEM, YAMAHA
99241-00320-00
Unavailable
36
EMBLEM, YAMAHA
99246-00320-00
Unavailable
36
. EMBLEM, YAMAHA (BLACK 2)
99247-00320-00
Unavailable
37
SCREW(4DN)
90149-06302-00
Unavailable
38
HEAD
5PW-28386-00-00
Unavailable
40
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
41
PANEL, INNER 1
5PW-2836K-00-00
Unavailable
42
PANEL, INNER 2
5PW-2836L-00-00
Unavailable
43
PANEL, INNER 3
5PW-Y283S-00-00
Unavailable
45
RIVET
90269-06081-00
Unavailable
46
RIVET(4PH)
90269-07077-00
Unavailable
47
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
48
BRACKET 3
5PW-2836F-00-00
Unavailable
49
BOLT, FLANGE
95817-06012-00
Unavailable
50
SEAT 4
5PW-2848M-00-00
Unavailable
51
SCREW, BINDING (10V)
90154-05013-00
Unavailable
52
HEAD
5PW-28386-00-00
Unavailable
53
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
54
SEAT 5
5PW-2848N-00-00
Unavailable
55
. DAMPER 1
5PW-2834E-00-00
Unavailable
