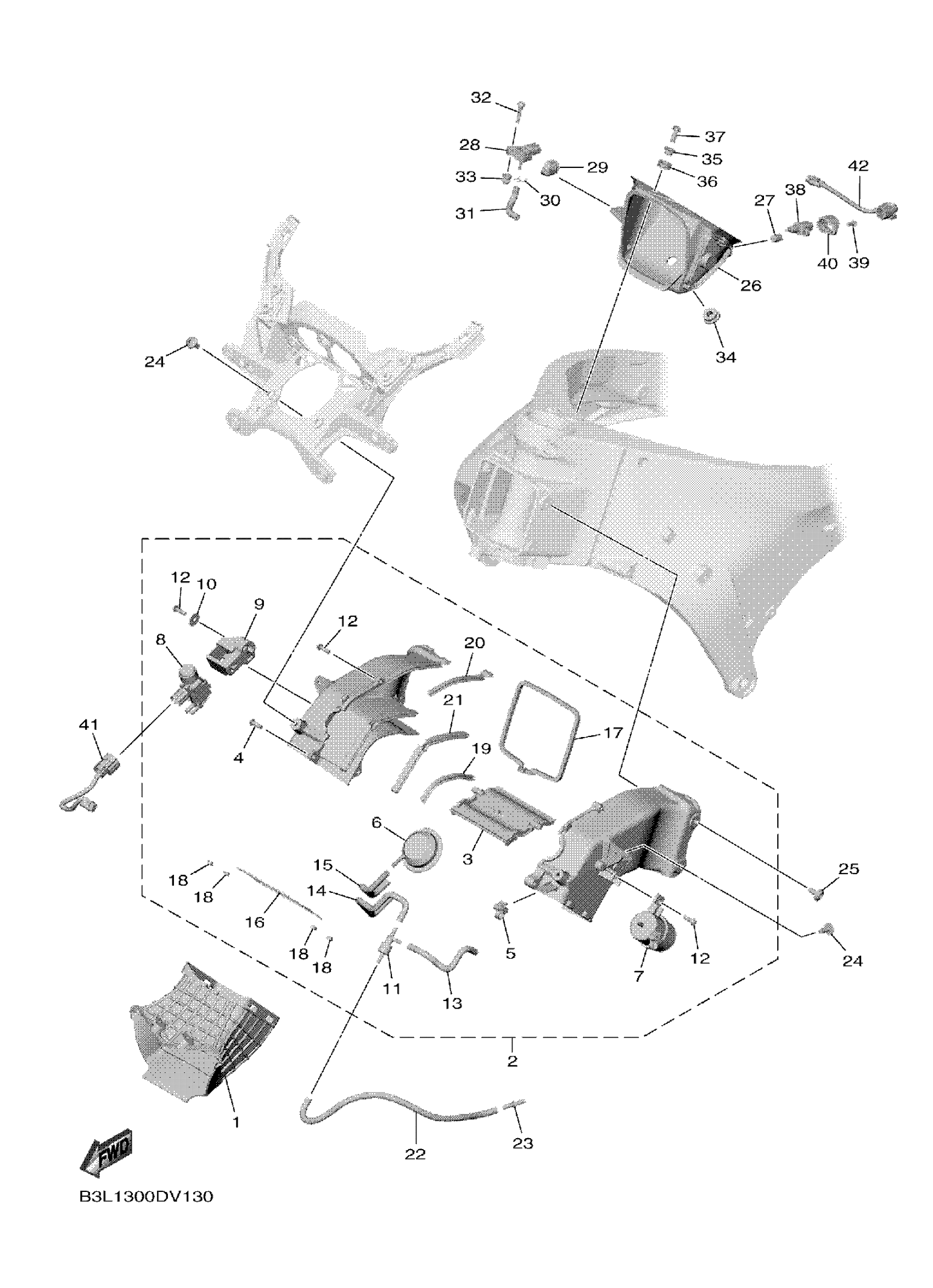

Yamaha YZFR1P1L (YZFR1) BMP2 2023 INTAKE 3 Diagram
#
2
DUCT ASSY
B3L-2832E-01-00
Unavailable
6
DIAPHRAGM
3D7-14545-00-00
Unavailable
7
TANK, SURGE
5PS-1446E-00-00
Unavailable
9
STAY 2
B3L-28357-00-00
Unavailable
10
WASHER PLATE 803835240000
90201-05032-00
Unavailable
11
VALVE, CHECK
5PS-14552-01-00
Unavailable
16
GRILL, AIR INTAKE
2CR-2837N-00-00
Unavailable
17
DAMPER, PLATE
90520-05027-00
Unavailable
18
DAMPER, PLATE
90520-05026-00
Unavailable
19
MOLE 1
B3L-28345-00-00
Unavailable
20
MOLE 2
B3L-28346-00-00
Unavailable
21
MOLE 3
B3L-28347-00-00
Unavailable
22
HOSE (L320)
90445-086J3-00
Unavailable
23
JOINT
5PS-14568-00-00
Unavailable
24
BOLT
90111-06038-00
Unavailable
25
BOLT
90111-06038-00
Unavailable
26
DUCT 4
B3L-2838U-11-00
Unavailable
27
GROMMET
90480-10018-00
Unavailable
28
SENSOR, PRESSURE
1WS-82380-00-00
Unavailable
29
DAMPER
2CR-28372-00-00
Unavailable
30
CLIP (16G)
90467-08021-00
Unavailable
31
HOSE
90445-08028-00
Unavailable
32
BOLT
90109-04001-00
Unavailable
33
NUT
90179-04003-00
Unavailable
34
GROMMET(4FU)
90480-13567-00
Unavailable
35
COLLAR
90387-06180-00
Unavailable
36
GROMMET
90480-13004-00
Unavailable
37
BOLT, FLANGE
95022-06016-00
Unavailable
38
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
Unavailable
39
BOLT, BUTTON HEAD
92012-05012-00
Unavailable
40
HOLDER
20S-1445C-01-00
Unavailable
41
WIRE, SUB LEAD
B3L-82509-00-00
Unavailable
42
WIRE, SUB LEAD
B3L-82509-20-00
Unavailable
