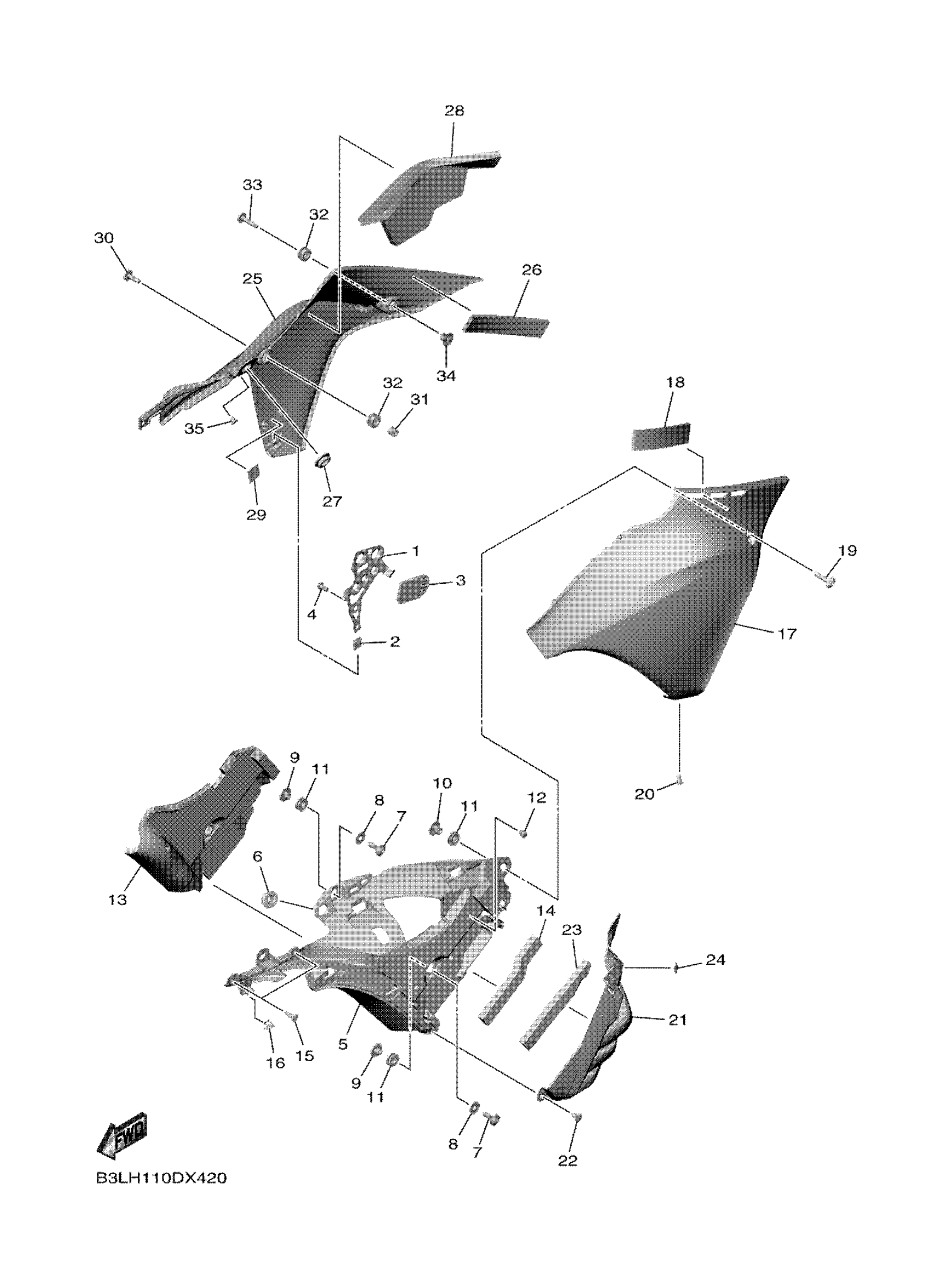

Yamaha YZFR1P1L (YZFR1) BMP2 2023 COWLING 3 Diagram

#

Description
Price

1

BRACKET 12

B3L-2833J-00-00

Unavailable

2

DAMPER, SIDE COVER

5PW-2411J-01-00

$7.99

3

DAMPER

B67-21488-00-00

Unavailable

4

BOLT, BUTTON HEAD

92012-06012-00

$4.35

5

BRACKET 1

B3L-2836A-00-00

$39.99

6

GROMMET(4BH)

90480-01559-00

$5.60

7

SCREW(4DN)

90149-06302-00

Unavailable

8

WASHER, PLATE

90201-06013-00

Unavailable

9

COLLAR

90387-06323-00

$5.60

10

COLLAR(36Y)

90387-067K8-00

$7.49

11

GROMMET

90480-13004-00

$8.49

12

PLUG(1NL)

90338-07180-00

$7.49

13

DAMPER 1

B3L-28415-00-00

$42.99

14

DAMPER, PLATE

90520-10035-00

$2.65

15

RIVET

90269-06008-00

$9.49

16

CLIP

90468-040A0-00

Unavailable

17

COVER 1

B3L-2842M-00-P2

Unavailable

18

DAMPER, RADIATOR

4ML-12465-00-00

Unavailable

19

BOLT

90111-06030-00

Unavailable

20

RIVET

90269-06018-00

Unavailable

21

COVER 3

B3L-2843J-00-00

Unavailable

22

RIVET

90269-06018-00

Unavailable

23

DAMPER, PLATE

90520-10035-00

$2.65

24

DAMPER

B3L-21649-00-00

Unavailable

25

COVER 2

B3L-2842N-00-P2

Unavailable

26

DAMPER, RADIATOR

4ML-12465-00-00

Unavailable

27

GROMMET(4BH)

90480-01559-00

$5.60

28

DAMPER, 4

2CR-28455-00-00

Unavailable

29

DAMPER 1

3TB-28217-00-00

Unavailable

30

SCREW(4DN)

90149-06302-00

Unavailable

31

COLLAR

90387-06260-00

Unavailable

32

GROMMET

90480-14003-00

Unavailable

33

BOLT

90111-06030-00

Unavailable

34

COLLAR(36Y)

90387-067K8-00

$7.49

35

PLUG(1NL)

90338-07180-00

$7.49
