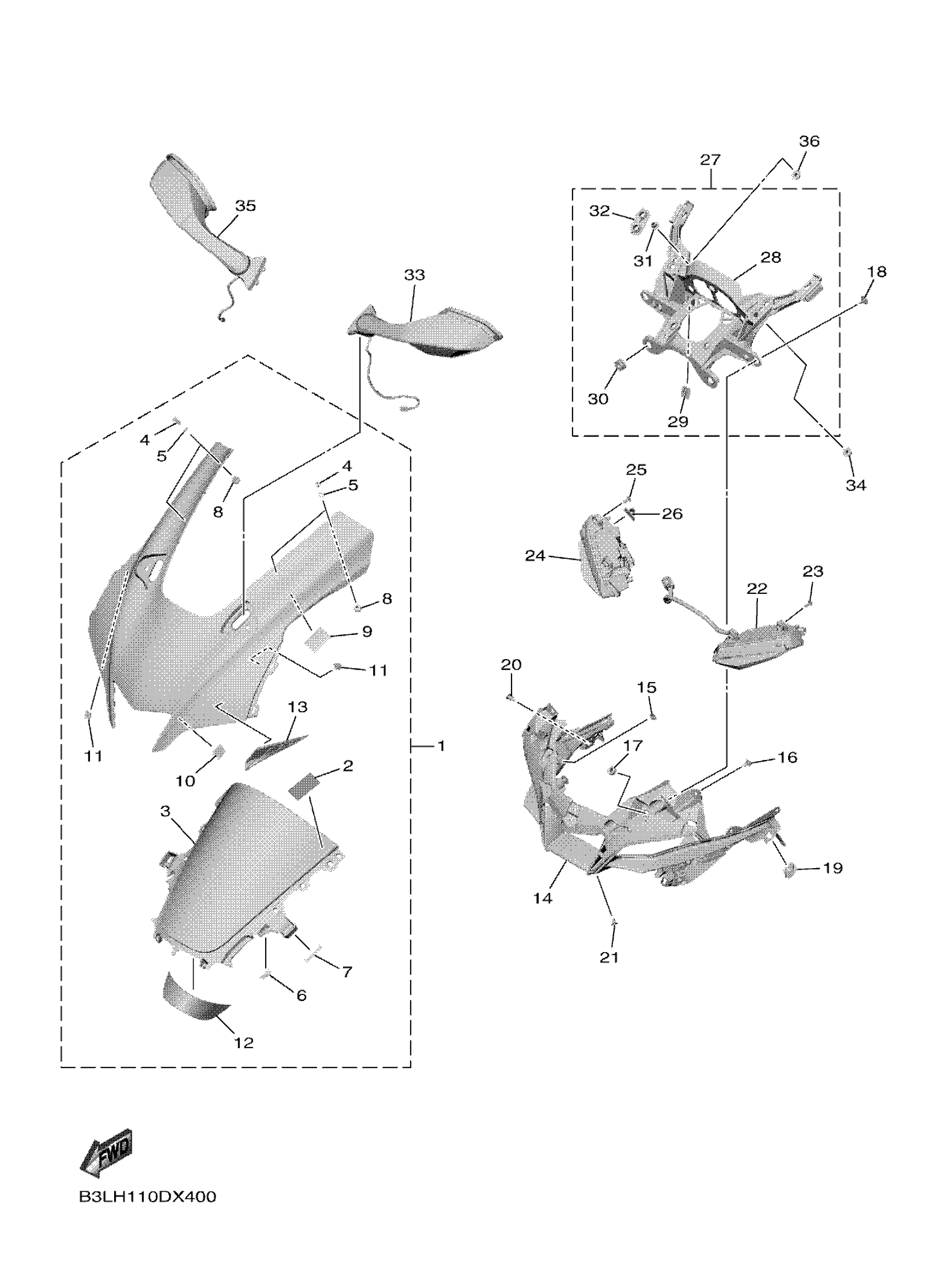

Yamaha YZFR1P1L (YZFR1) BMP2 2023 COWLING 1 Diagram

#

Description
Price

1

BODY, FRONT UPPER

B3L-Y283G-G0-33

$795.99

2

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

3

WINDSHIELD

B3L-28381-10-00

$105.99

4

BOLT

2CR-28333-00-00

$4.47

5

. WASHER, PLATE

90202-05088-00

Unavailable

6

PROTECTOR 1

1S4-2476U-00-00

$2.29

7

SEAL

3P6-28307-00-00

$2.34

8

NUT(1KT)

90179-05523-00

$8.49

9

PROTECTOR

33D-23472-00-00

$5.49

10

DAMPER, PLATE

90520-01001-00

$8.49

11

NUT, SPRING

90183-050A6-00

$8.49

12

GRAPHIC, 18

B3L-2832P-00-00

$29.99

14

BODY, FRONT UPPER 2

B3L-2835H-00-00

$64.99

15

NUT, SPRING(1YT)

90183-05042-00

$5.60

16

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

17

GROMMET

90480-10003-00

Unavailable

18

SCREW, TAPPING

90164-05001-00

Unavailable

19

PLATE, SPRING

2CR-2177L-00-00

Unavailable

20

RIVET

90269-06008-00

Unavailable

21

RIVET

90269-06018-00

Unavailable

22

PILOT LIGHT ASSY 1

B3L-84301-00-00

Unavailable

23

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

24

PILOT LIGHT ASSY 2

B3L-84302-00-00

Unavailable

25

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

26

CLAMP

90464-09009-00

Unavailable

27

LEG SHIELD STAY SET

B3L-28320-00-00

Unavailable

28

STAY 1

2CR-28356-00-00

Unavailable

29

NUT, SPRING

90183-060A1-00

Unavailable

30

DAMPER

4XV-83513-00-00

Unavailable

31

COLLAR ,4

2CR-284AK-00-00

Unavailable

32

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

33

REAR VIEW MIRROR ASSY (LEFT)

B3L-26280-11-00

Unavailable

34

NUT, CROWN(1FN)

90176-06055-00

Unavailable

35

REAR VIEW MIRROR ASSY (RIGHT)

B3L-26290-11-00

Unavailable

36

NUT, CROWN(1FN)

90176-06055-00

Unavailable
