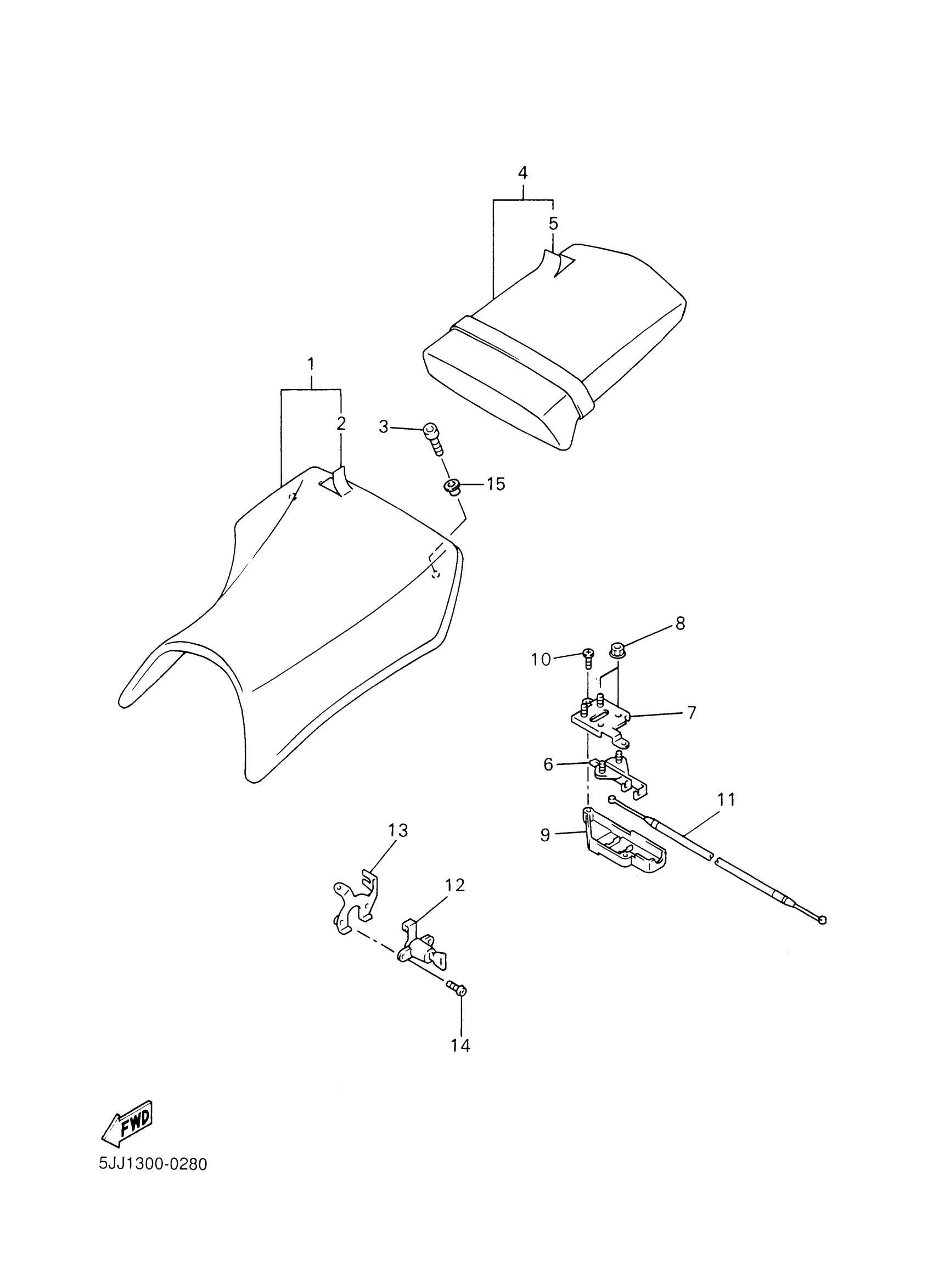

Yamaha YZFR1NC (YZFR1 CA) 5JJD 2001 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

5JJ-24710-00-00

Unavailable

2

. COVER, SEAT

5JJ-2470F-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$5.96

4

TANDEM SEAT ASSY

5JJ-24750-00-00

Unavailable

5

. COVER, TANDEM SEAT

5JJ-24751-00-00

Unavailable

6

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

7

PLATE

5JJ-24792-01-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$0.73

9

COVER,2

5JJ-2475X-01-00

$6.48

10

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

11

CABLE, SEAT LOCK

5JJ-2478E-00-00

Unavailable

12

SEAT LOCK ASSY

3CK-W2470-00-00

$69.49

13

STAY, LOCK

4XV-2117K-00-00

Unavailable

14

SCREW(4HM)

90149-06308-00

$6.58

15

COLLAR

90387-060660-00

Unavailable
