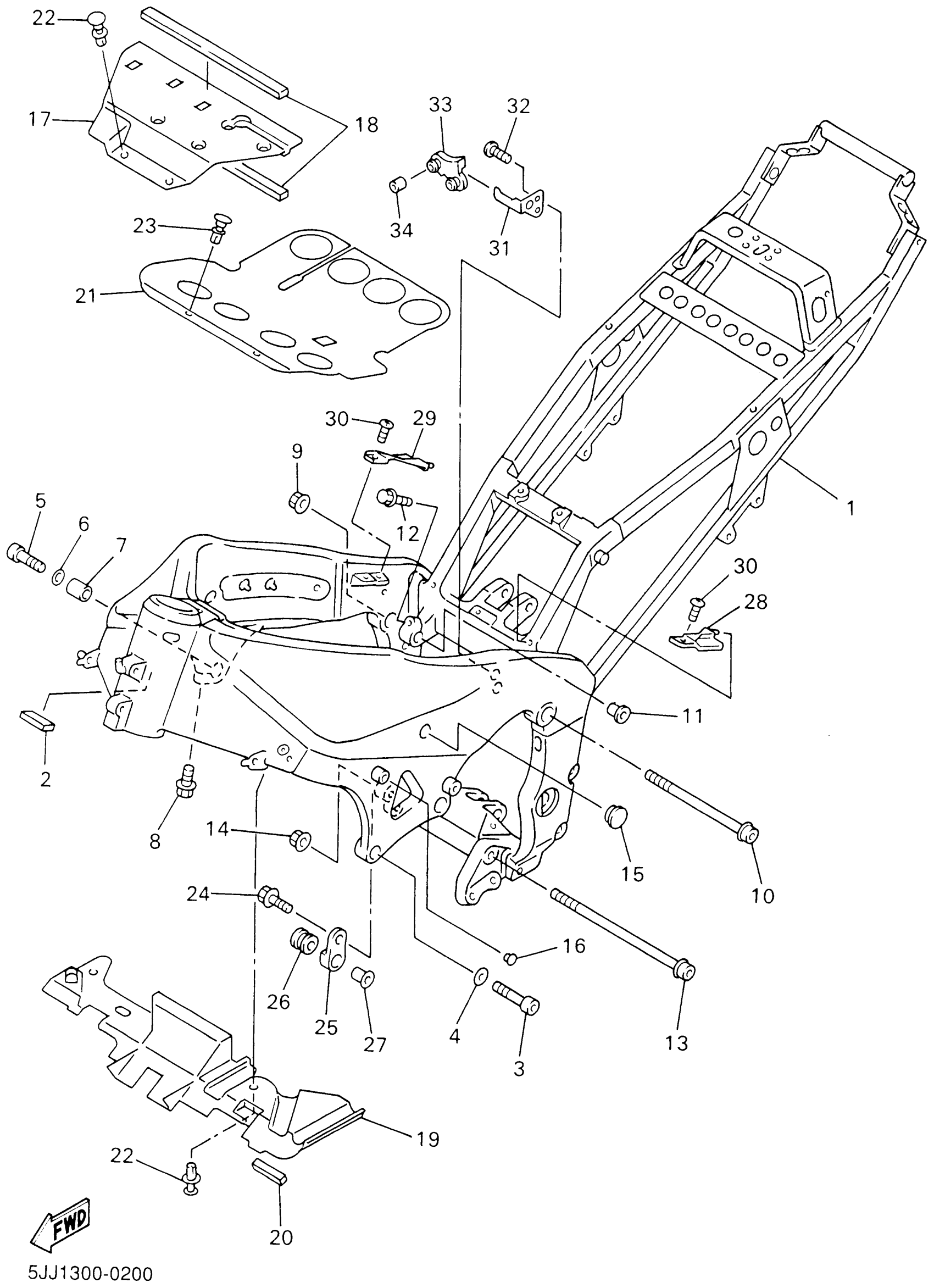

Find the part on the Frame diagram for your 2001 Yamaha YZFR1 CA (YZFR1NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha YZFR1 CA (YZFR1NC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

5JJ-21110-00-00

1
Out of stock

2

DAMPER, SIDE COVER

3XV-21717-00-00

1

$2.10

In stock

3

BOLT,SOCKET

91314-10040-00

1
Out of stock

4

WASHER, SEAL (712)

90210-10008-00

1
Out of stock

5

BOLT,SOCKET

91314-10050-00

1

$4.06

In stock

6

WASHER, PLATE

90201-10008-00

1
Out of stock

7

COLLAR

90387-12002-00

1
Out of stock

8

BOLT, FLANGE(3EF)

95024-08035-00

1

$6.17

In stock

9

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

10

BOLT

90109-104G5-00

1
Out of stock

11

COLLAR

90387-1112F-00

1
Out of stock

12

BOLT, FLANGE(3EF)

95024-08035-00

1

$6.17

In stock

13

BOLT

90109-104G5-00

1
Out of stock

14

NUT, SELF-LOCKING

90185-10017-00

1
Out of stock

15

PLUG(2GH)

90338-15202-00

1
Out of stock

16

PLUG (17J)

90338-07124-00

—

$8.55

In stock

17

COVER 2

4XV-2117M-00-00

1
Out of stock

18

DAMPER

4XV-28371-00-00

1
Out of stock

19

GUIDE, AIR

4XV-2137Y-01-00

1
Out of stock

20

DAMPER, SIDE COVER

3XV-21717-00-00

1

$2.10

In stock

21

COVER

4XV-2117F-00-00

1
Out of stock

22

RIVET(4PH)

90269-07077-00

—

$6.92

In stock

23

RIVET

90269-07084-00

—

$7.12

In stock

24

BOLT, FLANGE(4LN)

95817-08025-00

—

$6.17

In stock

25

STAY, MUFFLER 2

4XV-21446-00-00

1
Out of stock

26

DAMPER, FOOTREST 2

4XV-27424-00-00

—

$12.72

In stock

27

COLLAR

90387-08005-00

—

$13.22

In stock

28

COVER 3

4XV-2117N-00-00

1
Out of stock

29

COVER 4

4XV-2117R-00-00

1
Out of stock

30

SCREW, BINDING (10V)

90154-05013-00

—
Out of stock

31

BRACKET 7

4XV-2116J-00-00

1
Out of stock

32

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

33

STAY 1

4XV-2116A-00-00

1
Out of stock

34

COLLAR

90387-06088-00

—

$1.58

In stock
