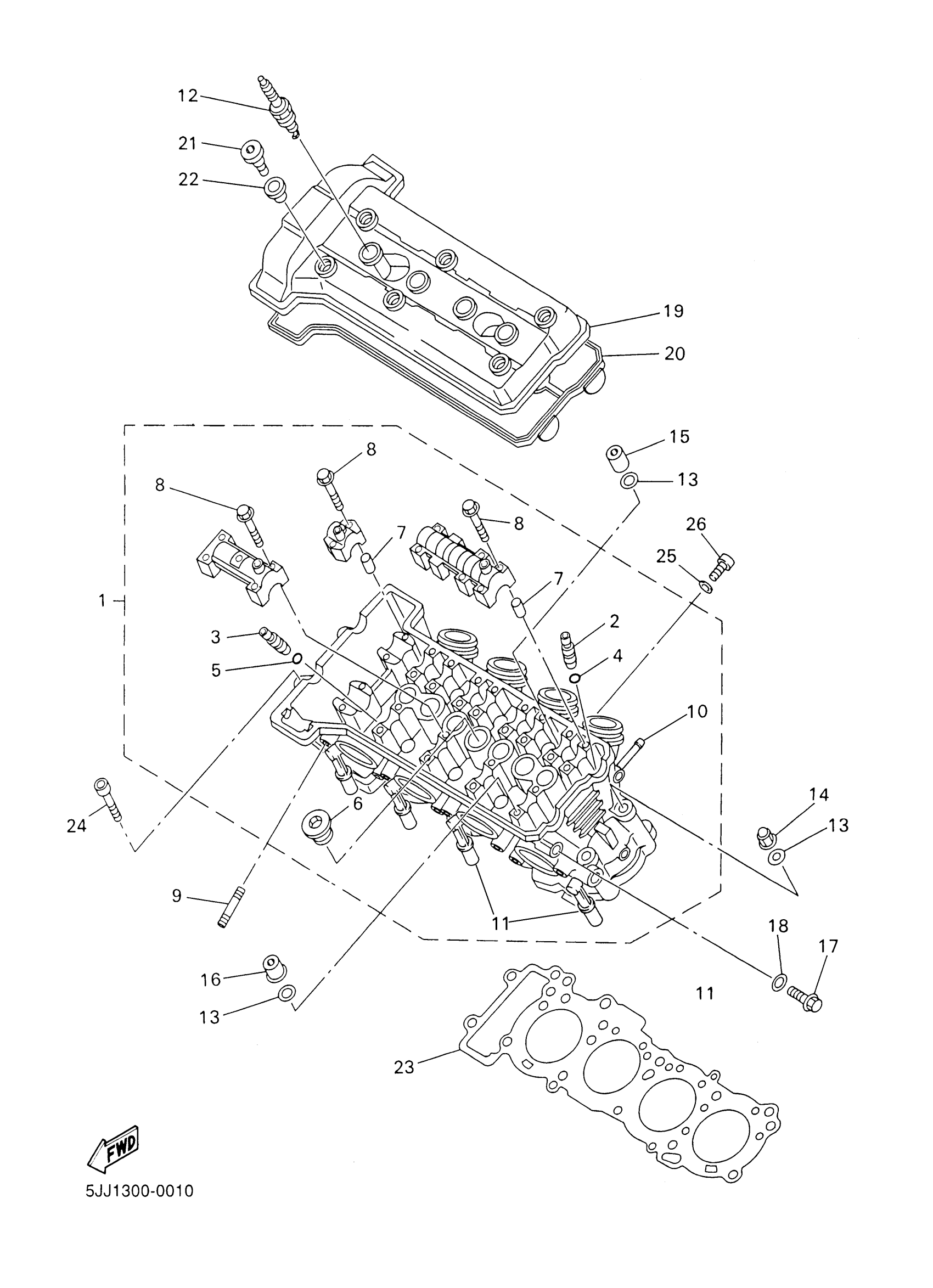

Yamaha YZFR1NC (YZFR1 CA) 5JJD 2001 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5JJ-11101-01-00

Unavailable

2

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

3

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

4

CIRCLIP(1HX)

93440-07149-00

$8.49

5

CIRCLIP(1WG)

93440-10153-00

$2.39

6

PLUG, STRAIGHT SCREW

90340-27001-00

$19.99

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, SMALL FLANGE

95027-06035-00

$2.22

9

BOLT, STUD 3

95617-08625-00

$8.49

10

. PIPE

1AE-13582-00-00

Unavailable

11

. PIPE 1

5JJ-14871-00-00

Unavailable

12

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

13

WASHER, PLATE

90201-10033-00

$8.49

14

NUT, CROWN(2GG)

90176-10075-00

$8.49

15

NUT

90179-10006-00

$9.49

16

NUT (26H)

90179-10414-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

18

GASKET 256113960000

90430-06014-00

Unavailable

19

COVER, CYLINDER HEAD 1

4XV-11191-00-00

Unavailable

20

GASKET, HEAD COVER 1

5PW-11193-00-00

Unavailable

21

BOLT(4BP)

90109-066F0-00

Unavailable

22

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

23

GASKET, CYLINDER HEAD 1

5PW-11181-00-00

Unavailable

24

BOLT,SOCKET

91317-06060-00

Unavailable

25

GASKET 256113960000

90430-06014-00

Unavailable

26

BOLT,SOCKET

91317-06012-00

Unavailable
