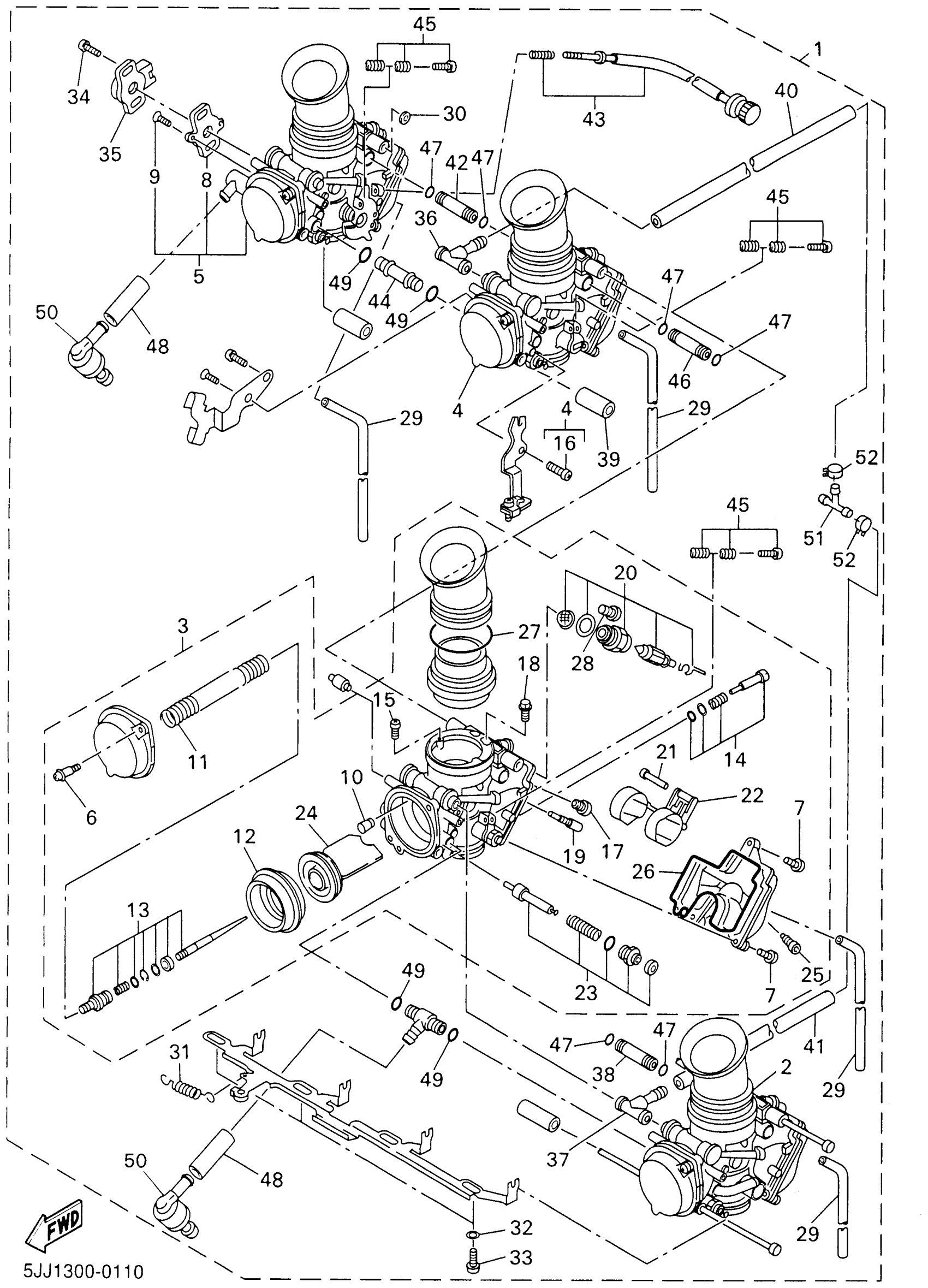

Yamaha YZFR1NC (YZFR1 CA) 5JJD 2001 CARBURETOR Diagram
#
1
CARBURETOR ASSY
5JJ-14900-20-00
Unavailable
1
CARBURETOR ASSY
5JJ-14900-40-00
Unavailable
2
. CARBURETOR ASSY 1
5JJ-14901-20-00
Unavailable
2
. CARBURETOR ASSY 1
5JJ-14901-40-00
Unavailable
3
. CARBURETOR ASSY 2
5JJ-14902-20-00
Unavailable
3
. CARBURETOR ASSY 2
5JJ-14902-40-00
Unavailable
4
. CARBURETOR ASSY 3
5JJ-14903-20-00
Unavailable
4
. CARBURETOR ASSY 3
5JJ-14903-40-00
Unavailable
5
. CARBURETOR ASSY 4
5JJ-14904-20-00
Unavailable
5
. CARBURETOR ASSY 4
5JJ-14904-40-00
Unavailable
8
. BRACKET
4KG-14995-00-00
Unavailable
9
SCREW, FLAT
98707-04008-00
Unavailable
10
. CAP
4SV-14968-00-00
Unavailable
11
. SPRING, DIAPHRAGM
4SV-14933-00-00
Unavailable
12
DIAPHRAGM
4SV-24411-00-00
Unavailable
13
.. NEEDLE SET
4XV-1490J-30-00
Unavailable
14
PILOT SCREW SET
4SV-14105-00-00
Unavailable
15
.. SCREW
4SV-14216-00-00
Unavailable
16
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
17
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
18
.. JET, AIR (120)
8CC-14232-24-00
Unavailable
19
JET, PILOT (# 15)
4KM-14142-15-00
Unavailable
20
NEEDLE VALVE SET
4KM-14107-15-00
Unavailable
21
. PIN, FLOAT
620-14186-00-00
Unavailable
22
FLOAT
4SV-14985-00-00
Unavailable
23
STARTER SET
4SV-1410A-00-00
Unavailable
24
VALVE, THROTTLE 1
4SV-14112-00-00
Unavailable
25
PLUG, DRAIN
4KP-14191-00-00
Unavailable
26
O-RING
4XV-14562-00-00
Unavailable
27
.. SPRING
4XV-14275-00-00
Unavailable
28
SCREW
1FN-14565-00-00
Unavailable
29
PIPE
3JE-14197-00-00
Unavailable
30
. WASHER
28V-14952-00-00
Unavailable
31
. SPRING
4SV-14935-00-00
Unavailable
32
PACKING
4NK-14327-00-00
Unavailable
32
PACKING
4NK-14327-00-00
Unavailable
33
SCREW
4XV-24453-00-00
Unavailable
33
SCREW
4XV-24453-00-00
Unavailable
34
SCREW
4KM-24453-00-00
Unavailable
35
THROTTLE SENSOR ASSY
4HD-85885-00-00
Unavailable
36
HOSE
4SV-14987-00-00
Unavailable
37
HOSE
4XV-90445-00-00
Unavailable
38
. PIPE
4XV-14149-30-00
Unavailable
39
. PIPE
4XV-14149-60-00
Unavailable
40
HOSE
4YW-14987-00-00
Unavailable
41
HOSE
5JJ-14987-00-00
Unavailable
42
. PIPE
4XV-14149-40-00
Unavailable
43
. THROTTLE SCREW SET
4XV-14103-00-00
Unavailable
44
. PIPE
4XV-14149-90-00
Unavailable
45
STOP SCREW SET
4KM-1490K-00-00
Unavailable
46
. PIPE
4XV-14149-70-00
Unavailable
47
O-RING
36Y-14147-00-00
Unavailable
48
. PIPE 1
3LN-14348-00-00
Unavailable
49
O-RING
3LN-1416A-00-00
Unavailable
50
NET, FILTER 2
3LN-24515-00-00
Unavailable
51
WAY 3(47X)
90413-10016-00
Unavailable
52
CLIP(3BM)
90467-10135-00
Unavailable
