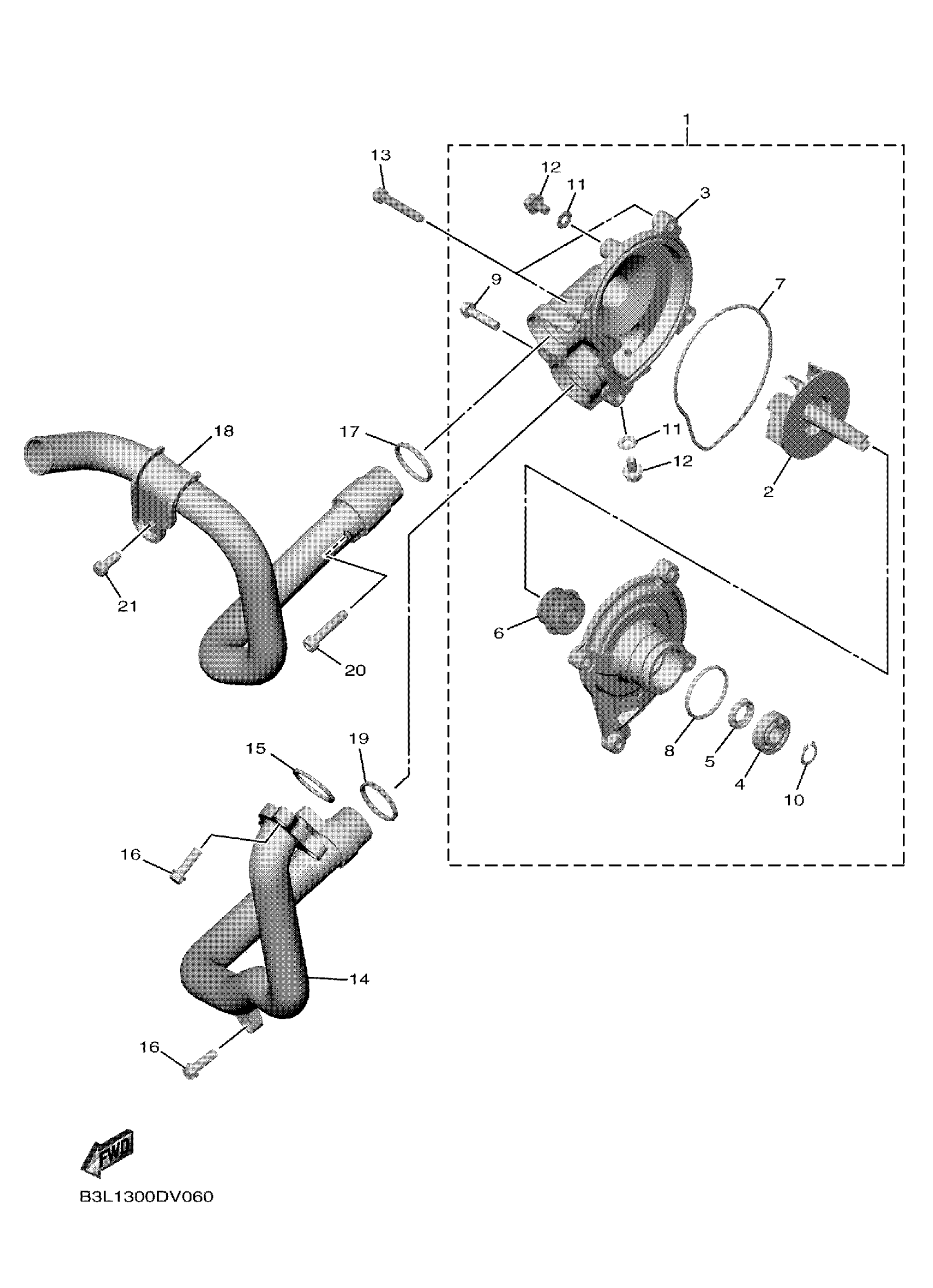

Yamaha YZFR1N1W (YZFR1 WGP 60TH) B3LT 2022 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

B67-12420-00-00

$301.99

2

IMPELLER SHAFT ASS

2CR-12450-01-00

Unavailable

3

COVER, HOUSING

B67-12422-00-00

$143.99

4

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

5

SEAL

2CR-13338-00-00

$9.99

6

SEAL, MECHANICAL

5VK-12438-00-00

Unavailable

7

O-RING

4XV-12439-00-00

$15.49

8

O-RING (626)

93210-33133-00

$2.92

9

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

GASKET (4V2)

90430-06166-00

$3.76

12

BOLT, FLANGE

95824-06010-00

$8.49

13

BOLT, SOCKET

91314-06035-00

$8.49

14

PIPE 1

2CR-12481-00-00

$101.99

15

O-RING(1KT)

93210-27778-00

$8.49

16

BOLT, FLANGE

90105-06127-00

Unavailable

17

O-RING

93210-26006-00

Unavailable

18

PIPE 4

2CR-12484-00-00

Unavailable

19

O-RING

93210-26006-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

21

BOLT (33M)

91312-06014-00

Unavailable
